Wiring
Pressure-type terminal blocks are provided inside the LE300-IP Line Extender for connecting the
incoming field wiring. The terminal blocks can support a wire size of No. 24 AWG to No. 12 AWG. It is
recommended that the installer crimp ferrules on the end of each wire before inserting the wire into the
terminal block to ensure a reliable termination. Wiring connections to the LE300-IP are described below.
Power Connections
Connect input power of 120/240 V ac at 50/60 Hz to the double-pole circuit breaker. Connect the ground
wire to the ground bar.
Page/Party ® System Cable Connection
Connect the audio conductors (page line and party line 1–5) of the Page/Party ® system cable to either P5 or
P8 on the audio termination board. Each connection point is labeled next to the terminal block as shown
below.

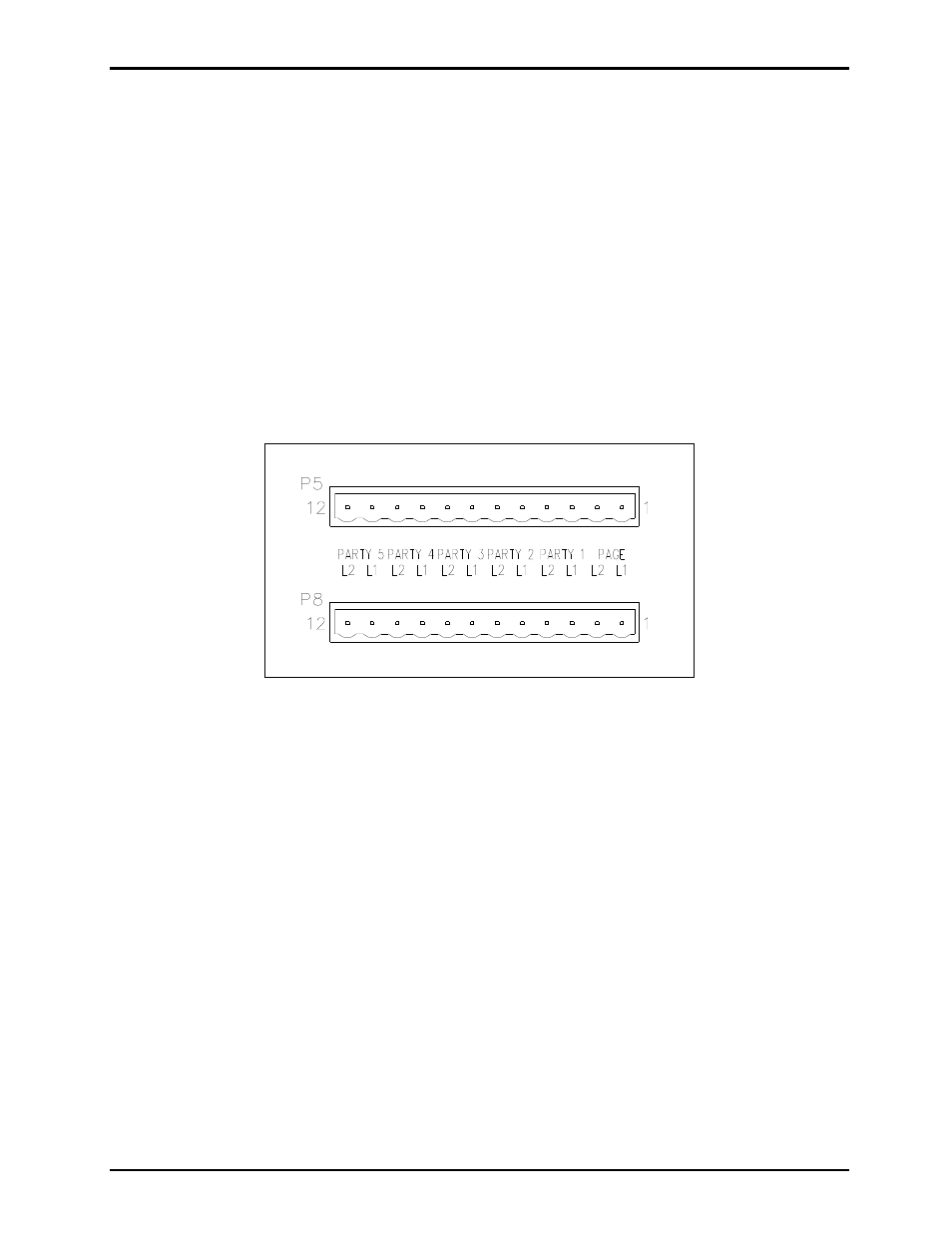

Figure 13 . Page/Party ® Cable Terminals
