GAI-Tronics LE300-IP Page/Party Line Extender - Manual (Page 26)

Pub. 42004-488C
M ODEL LE300-IP P AGE /P ARTY
®
L INE E XTENDER P AGE 23 of 68
e:\standard ioms - current release\42004 instr. manuals\42004-488c.doc
09/14
Point to Multi-point Page/Party ® System Connection

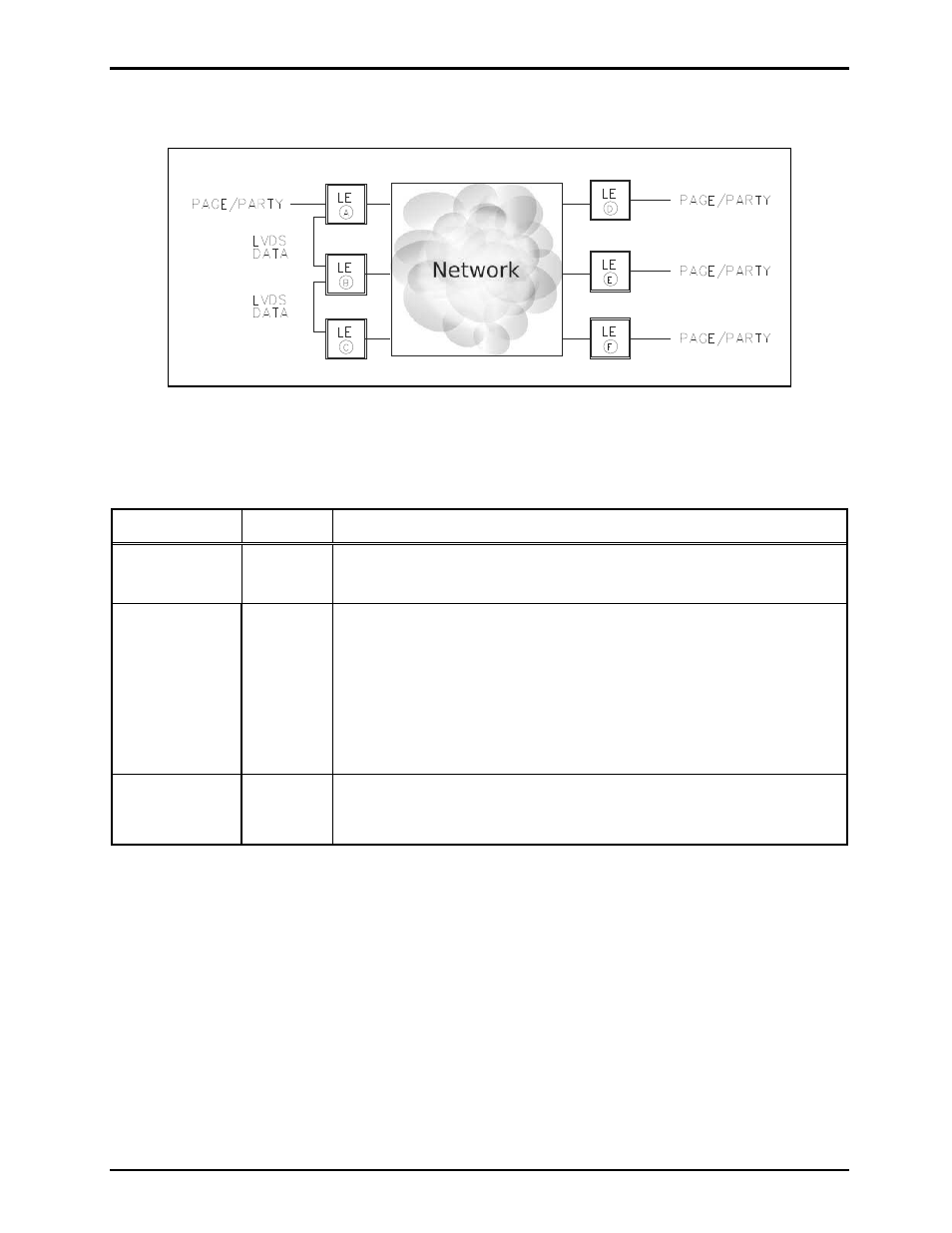

Figure 8. Point to Multi-point Page/Party ® System Connection
Table 25. Point to Multi-point Page/Party ® System Connection Table
Parameter Switch Configuration Description
T1/E1 Clock
Source SW3-1
SW3-2
Units A, B, C, D, E, & F are the master T1/E1 clock sources:
SW3-1 (open) SW3-2 (open)
LVDS Data
Line SW3-3
SW3-4
LVDS data link is used between units A, B and C.
 Unit A - “LVDS in” disabled, “LVDS out” enabled:
SW3-3 (open) SW3-4 (closed)
 Unit B - “LVDS in” enabled, “LVDS out” enabled:
SW3-3 (closed) SW3-4 (closed)
 Unit C - “LVDS in ” enabled, “LVDS out” disabled:
SW3-3 (closed) SW3-4 (open)
Mute Analog
Lines SW6-4 Units B and C have the page and party lines muted since there is not a
Page/Party
® cable connected:
SW6-4 (closed)
