TopKAT PLUS Installation Procedures
Mechanical Pump - Pulser Connections
Page 3-20
MDE-5013C TopKAT™ PLUS Installation Manual · February 2015
RS-485 Electronic - TopKAT PLUS on Gasboy 9800 Atlas
(Factory Installed)

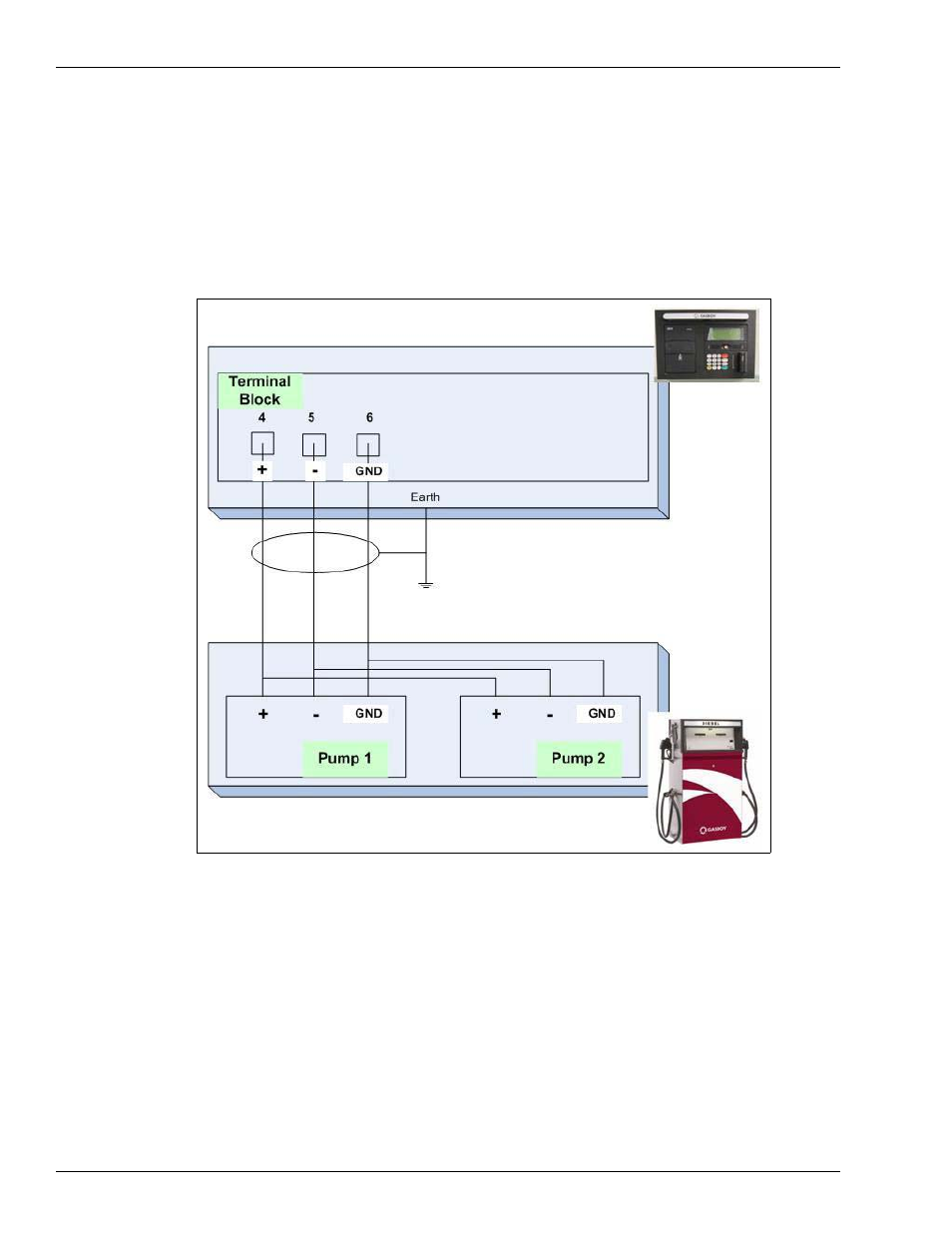

shows the internal wiring connections between TopKAT PLUS and the RS-485
pump nozzle.
Figure 3-17: RS-485 Electronic Pump - Wiring Diagram - 1
