MDE-5013C TopKAT™ PLUS Installation Manual · February 2015 Page 4-7
Setting Printing Parameters Printer
Setting Printing Parameters
Jumpers Configuration
The printer includes jumpers that enable setting the RS-485 address and selecting the number
of copies automatically produced during each printout.
On a single RS-485 bus, each device must be assigned a different address.
CAUTION
The jumpers are set in a matrix of eight jumpers, where the first five jumpers determine the

RS-485 address. The last three jumpers determine the number of copies. Figure 4-8 shows the
jumpers default configuration, where the RS-485 address = 70 Hex. Figure 4-9 on page 4-8
provides examples of jumpers configuration and corresponding RS-485 address.

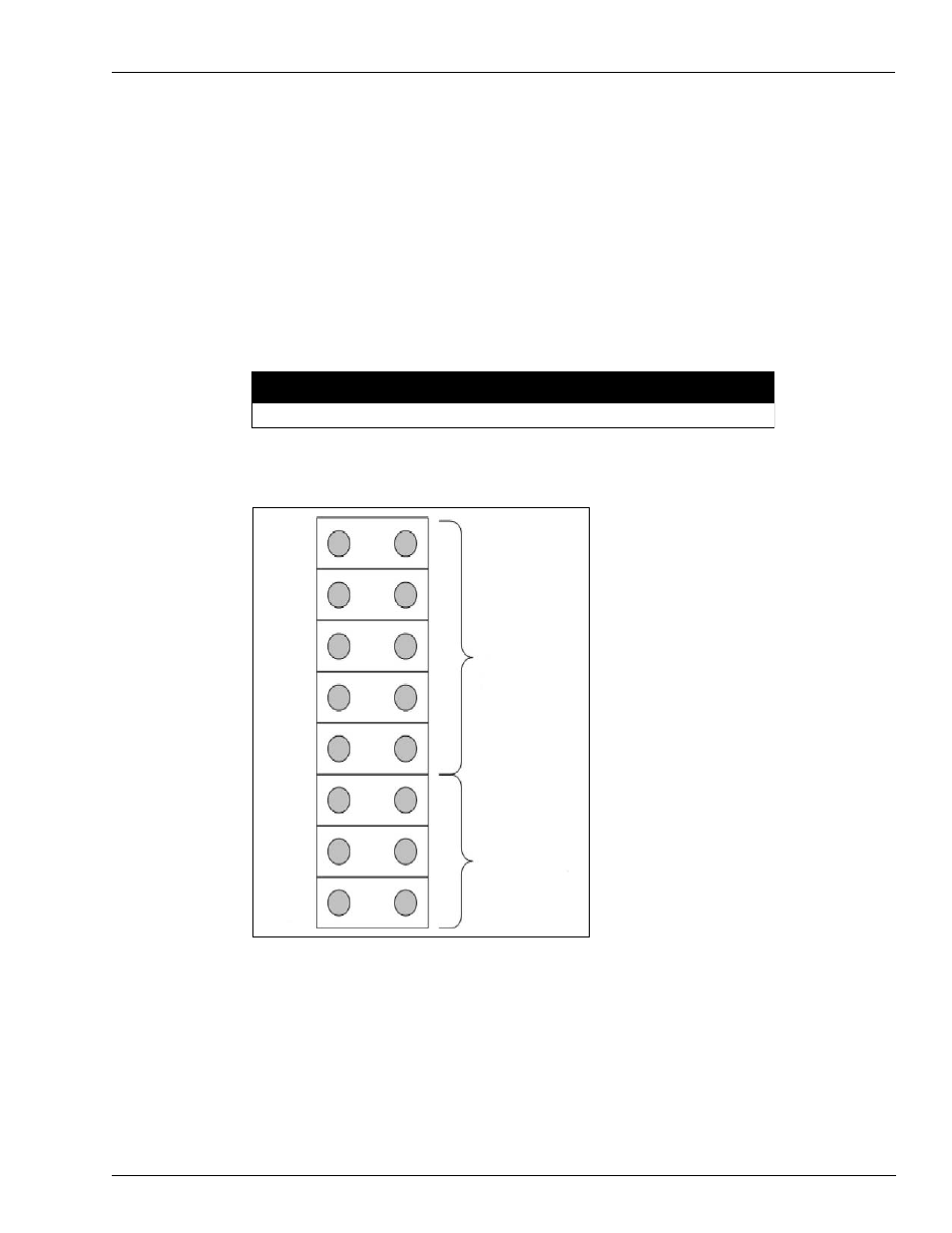

Figure 4-8: Printer Module - Jumpers Default Configuration
Top
Bottom
5 Jumpers
determine the

RS-485 address
3 Jumpers
determine the

number of copies
in a printout
