Printer Main Components
Page 4-4 MDE-5013C TopKAT™ PLUS Installation Manual · February 2015

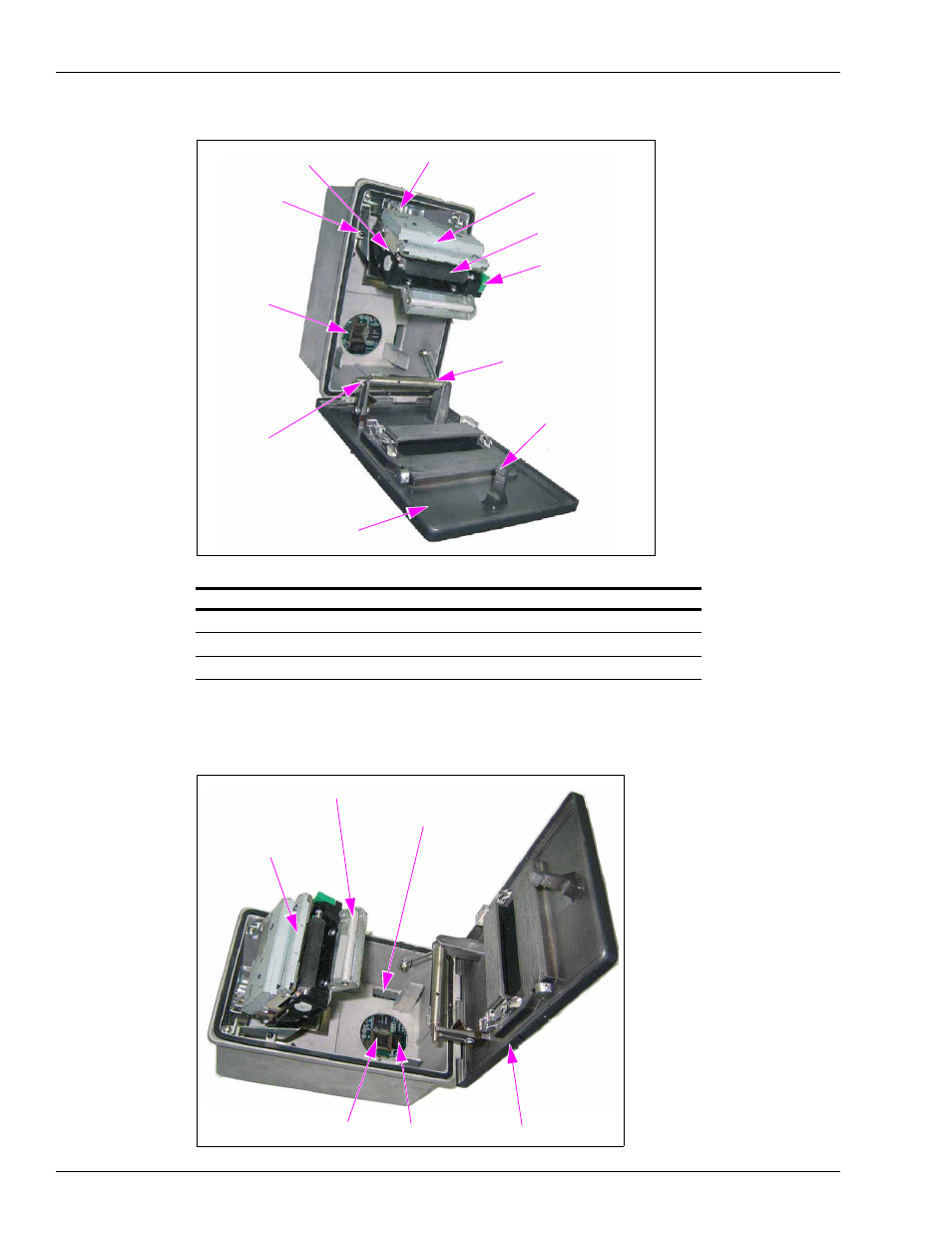

Figure 4-4: Printer Module G2 Unit - Main Components
Cutter Lock
Electronic Board
Advance Paper
Push Button
Paper Roll Pivot Pawl
Front Panel
Door Locker Pin
Paper Roll Pivot
Paper Lock Lever
Printer
Cutter
Door Locker
Note: These components are intended for maintenance purposes only.
Figure 4-5: Printer Module G2 Unit - Internal Components
Printer
Jumpers
Flash Memory AVR Connector Door
Printer Head
(M09680B102)
Item Functionality
Jumpers Enables to determine the RS-485 address and number of copies.
Flash Memory Device Stores the printer software.
AVR Connector Enables to download/upload printer software/data.
