MDE-5013C TopKAT™ PLUS Installation Manual · February 2015 Page 4-3
Main Components Printer

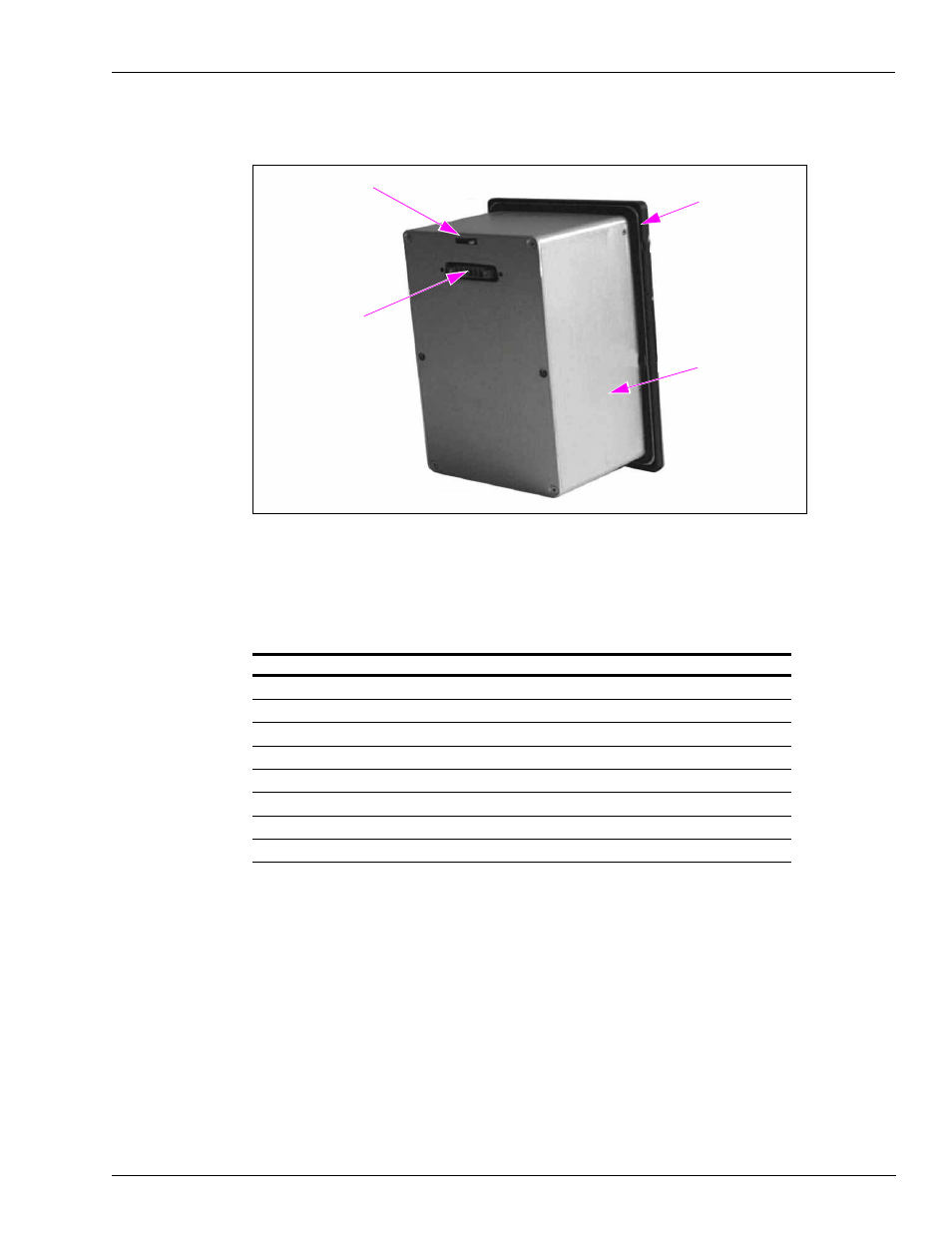

Figure 4-3: Printer Module G2 Unit - Rear View
Front Panel Lock Level
Printer Connector
Door
Printer Enclosure
Main Components
The printer module G2 consists of the following main items (refer to the following table,

Figure 4-4 , and Figure 4-5 on page 4-4 ):
Item Functionality
Advance Paper Push Button Advances the paper into the printer.
Printer Cutter Lock Unlocks the cutter lock.
Printer Cutter Cuts the paper.
Thermal Printer Prints the text on the thermal paper by means of the thermal head.
Paper Lock Lever Unlocks the paper lock by pushing the lock down.
Paper Roll Pivot Pawl Releases the paper pivot and enables insertion of a new paper roll.
Front Panel Lock Lever Bypasses the solenoid lock (for technician use only).
Electronic Board Printer controller.
