MDE-5013C TopKAT™ PLUS Installation Manual · February 2015
Page 3-21
Mechanical Pump - Pulser Connections
TopKAT PLUS Installation Procedures
Electronic Pump Wiring - TopKAT PLUS on Pedestal
shows the external wiring connections between TopKAT PLUS and Gasboy Atlas
9800 unit(s).

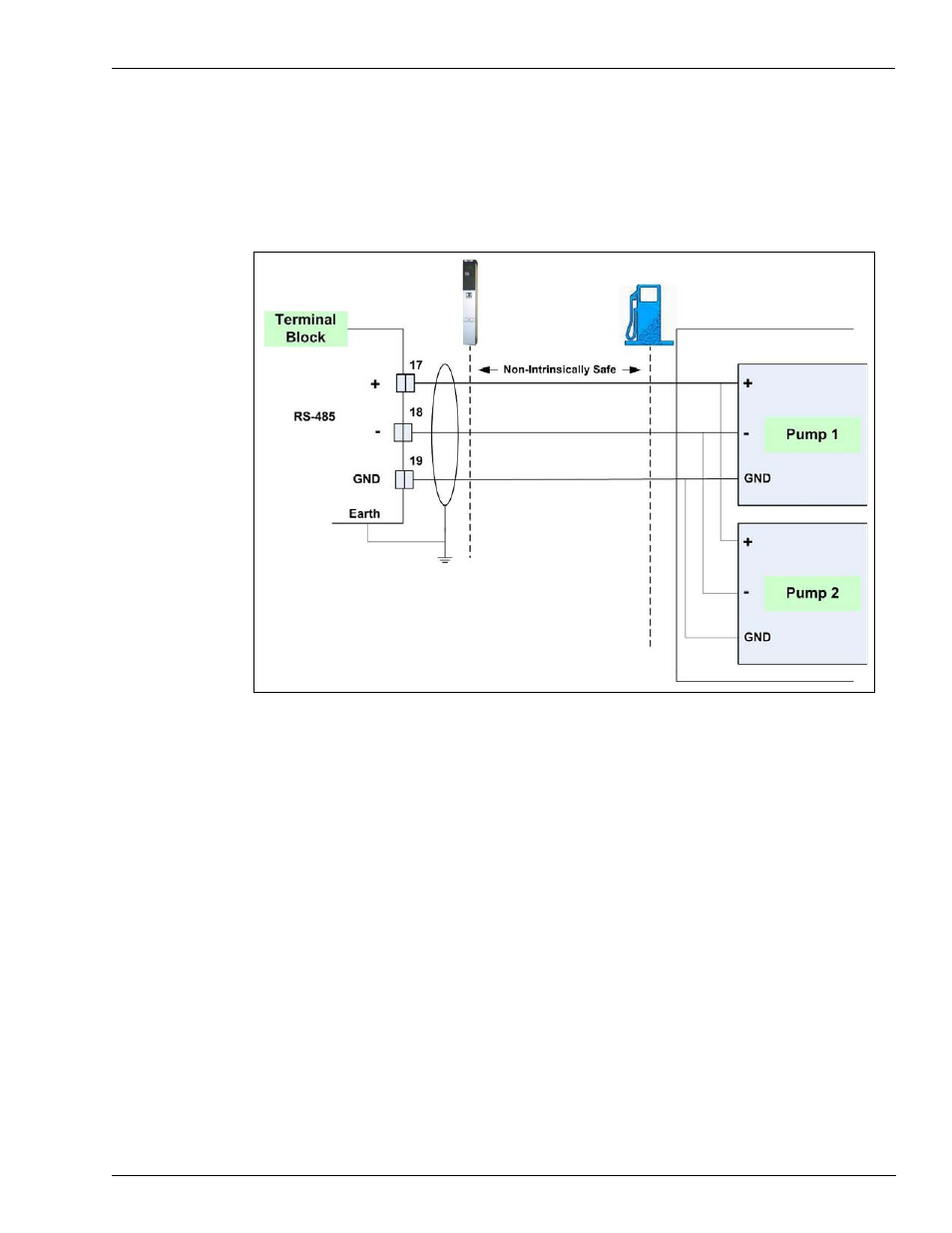

Figure 3-18: RS-485 Electronic Pump - Wiring Diagram - 2
In Gasboy electronic J-box for pump 1, connect the red Tx+ to white Rx+ and connect the
green Tx- to black Rx- as shown in
.
Connect one wire from “+” and one wire from “-” to proper terminal blocks in the Islander
™
PLUS unit. For proper pump location, refer to
