TopKAT PLUS Installation Procedures
Electronic Pump - Wiring Description (Pedestal Mount)
Page 3-24
MDE-5013C TopKAT™ PLUS Installation Manual · February 2015
RS-485 Electronic Pump
shows the specific internal wiring connections between the TopKAT PLUS and
RS-485 interface board in the Atlas electronic head assembly.

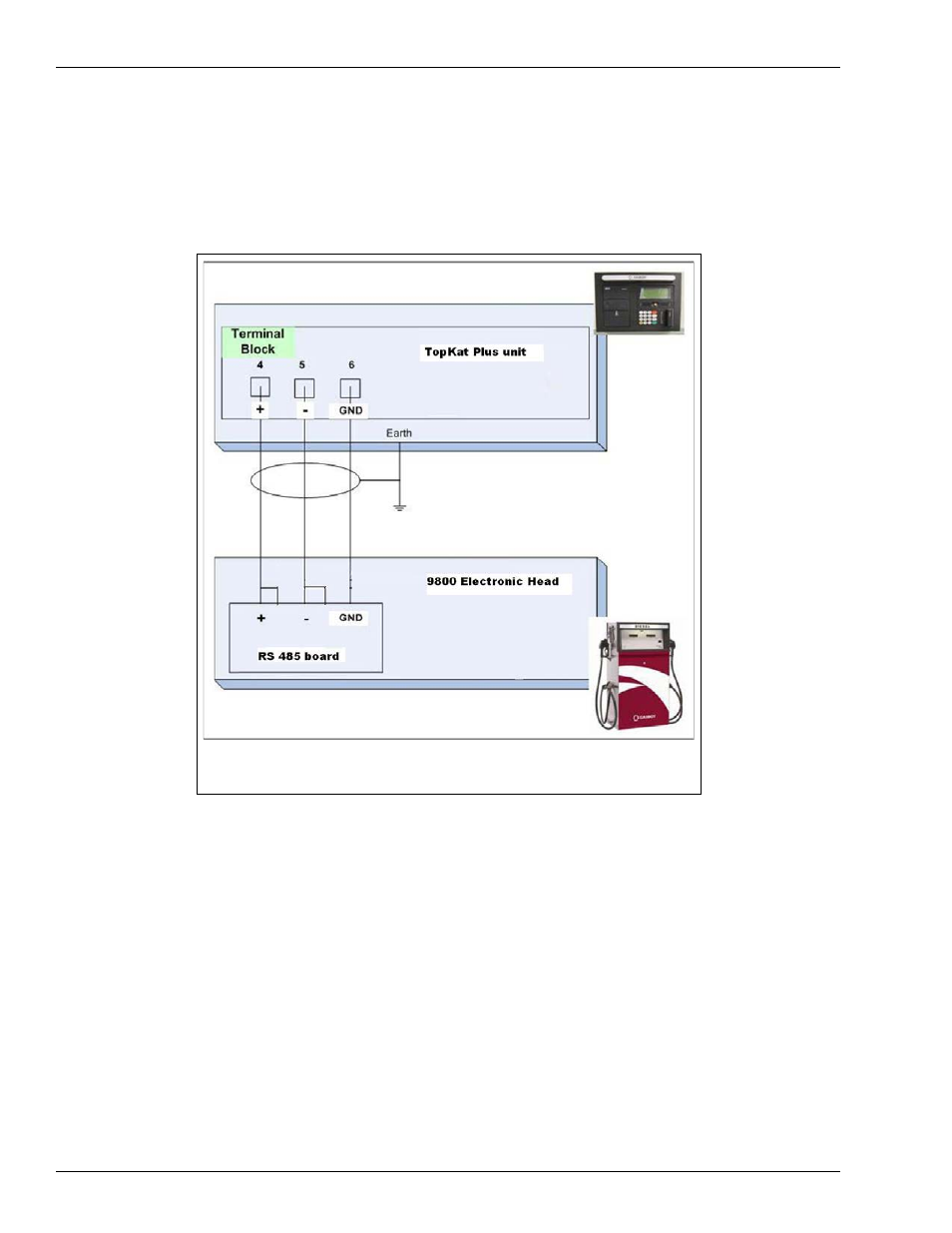

Figure 3-21: RS-485 Electronic Pump - Internal Wiring Diagram
Note: On the RS-485 interface board in the 9800 head assembly, the positive pins are
1 and 3 (jumper) and negative pins are 2 and 4 (jumper).
