MDE-5013C TopKAT™ PLUS Installation Manual · February 2015 Page 4-11
Paper Roll Replacement Printer
3 Lift the printer and release the attached paper (see Figure 4-12 ).

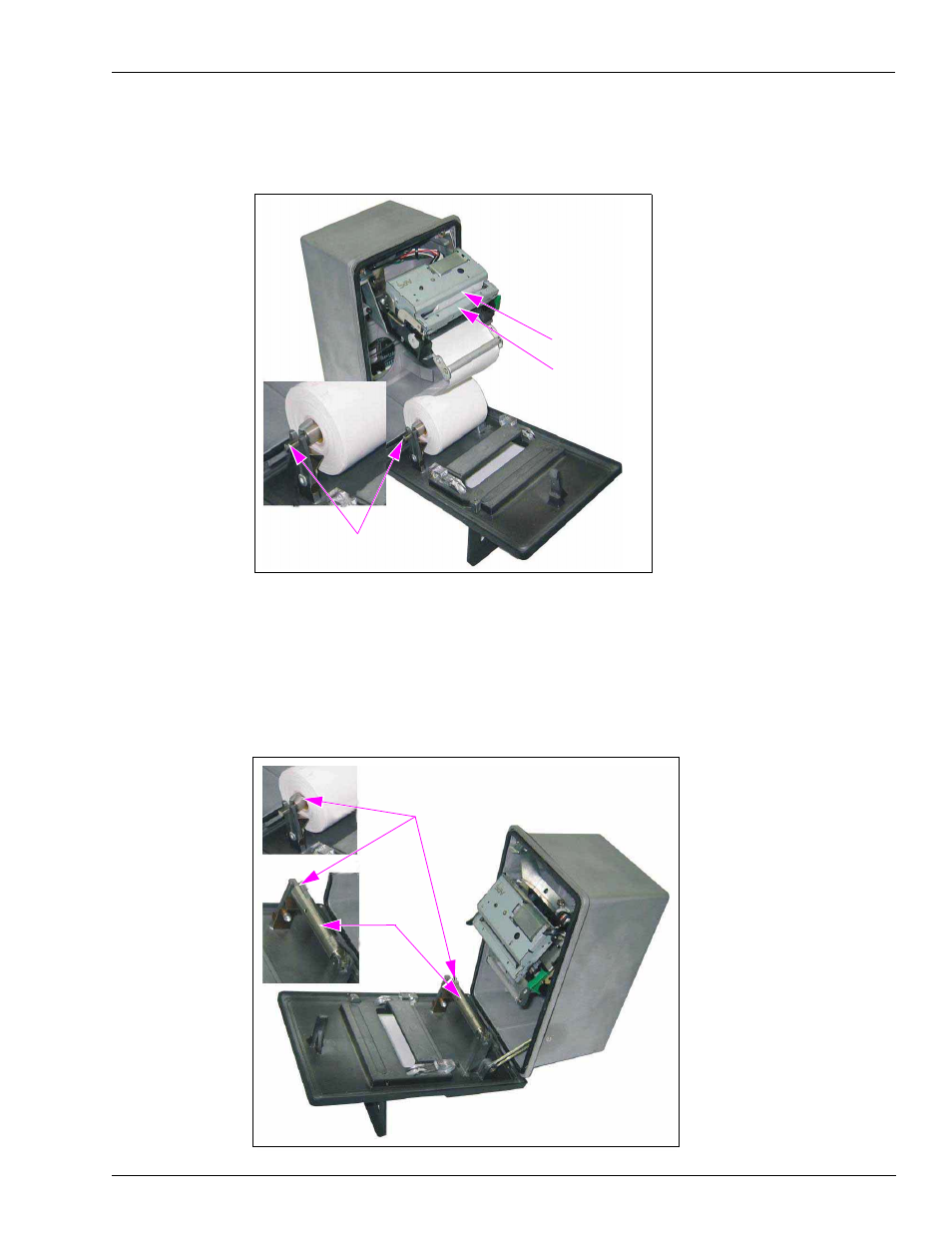

Figure 4-12: Released Printer
Attached Paper
Printer
Pivot Handle
4 Press the paper roll pivot handle (see Figure 4-12 ) and release the handle.
5 Lift the paper roll pivot (see Figure 4-13 ).
6 Press the paper roll pivot pawl (see Figure 4-13 ) and remove the paper roll.
Figure 4-13: Paper Roll Pivot Handle
Pivot Pawl
Pivot
