MDE-5013C TopKAT™ PLUS Installation Manual · February 2015
Page C-1

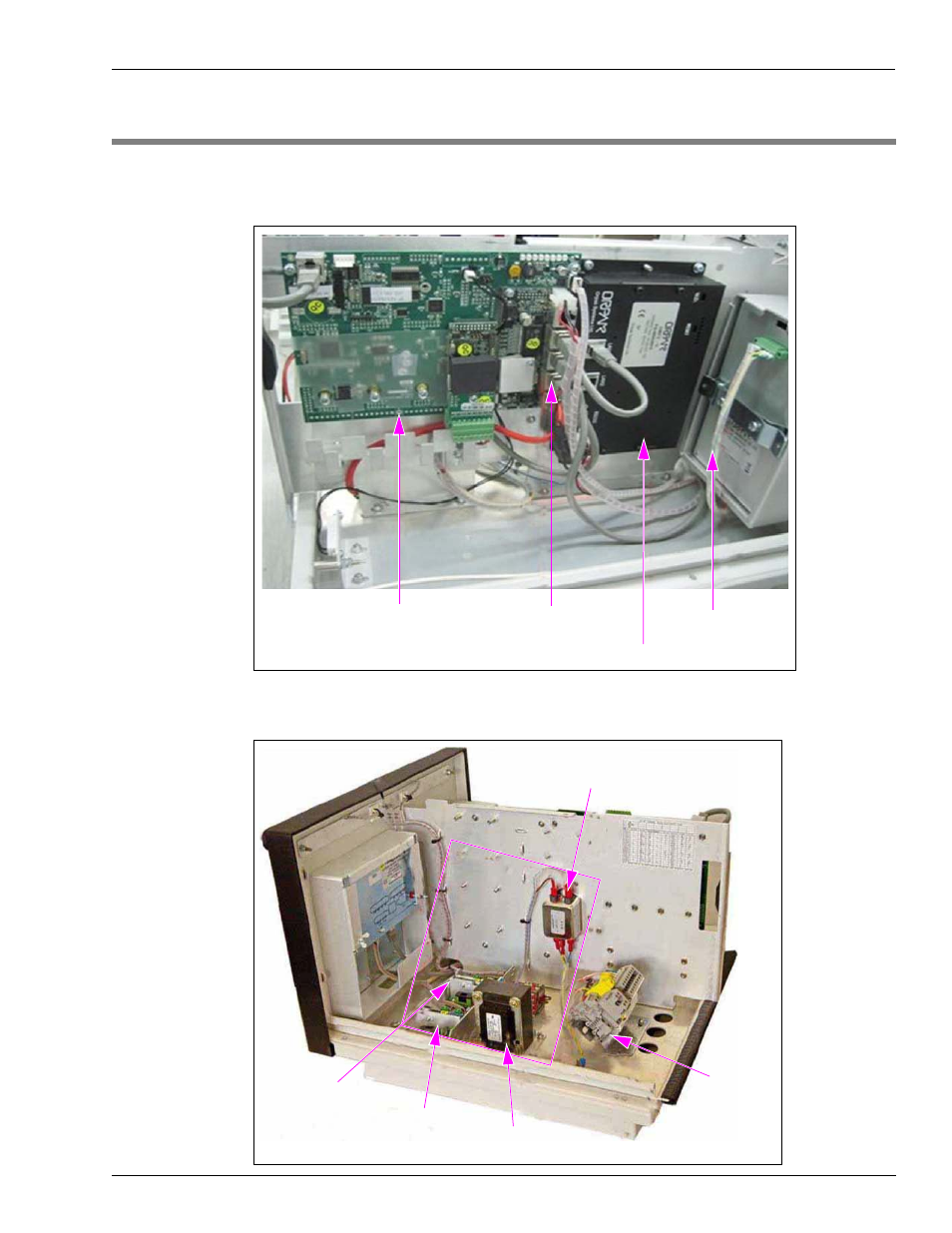

Appendix C: TopKAT PLUS Parts Illustrated
Appendix C: TopKAT PLUS Parts Illustrated
Figure C-1: TopKAT PLUS - Right Side Parts
8-port CommVerter
(M09680B123)
Kit 5-port + Heat Sink
(M09680B103)
OrCU-N (M09680B004)
Printer G2
(M09680B101)
Figure C-2: TopKAT PLUS - Left Side Parts
Line Filter (M09680B008)
32 V Regulator
(M09680B052)
24 V Regulator
(M09680B083)
Transformer
(M09680B022)
Terminal Block
(M09680B025)
