NV9000-SE Utilities
User’s Guide
Configuration Pages and Tables
These are the pages under the ‘Configuration’ pane for devices and categories:
• Devices • Device Details • Categories
• Input Phys Conns • Output Phys Conns
These are the pages under the ‘Tasks’ pane:
• Add Device • Add Multiple Devices • Add Category
These are the tables under the ‘Views’ pane:
• Devices • Categories • Suffixes
• ‘PhysConns’ • Category Details
These are the queries under the ‘Views’ pane:
• Physical Connections • Orphaned Physical Connections
These pages and tables are described in the following sections.
Devices Page
The ‘Devices’ page (under the ‘Configuration’ pane) lists all devices and the level set to which
each device belongs. You can add, delete, or edit devices using this page.

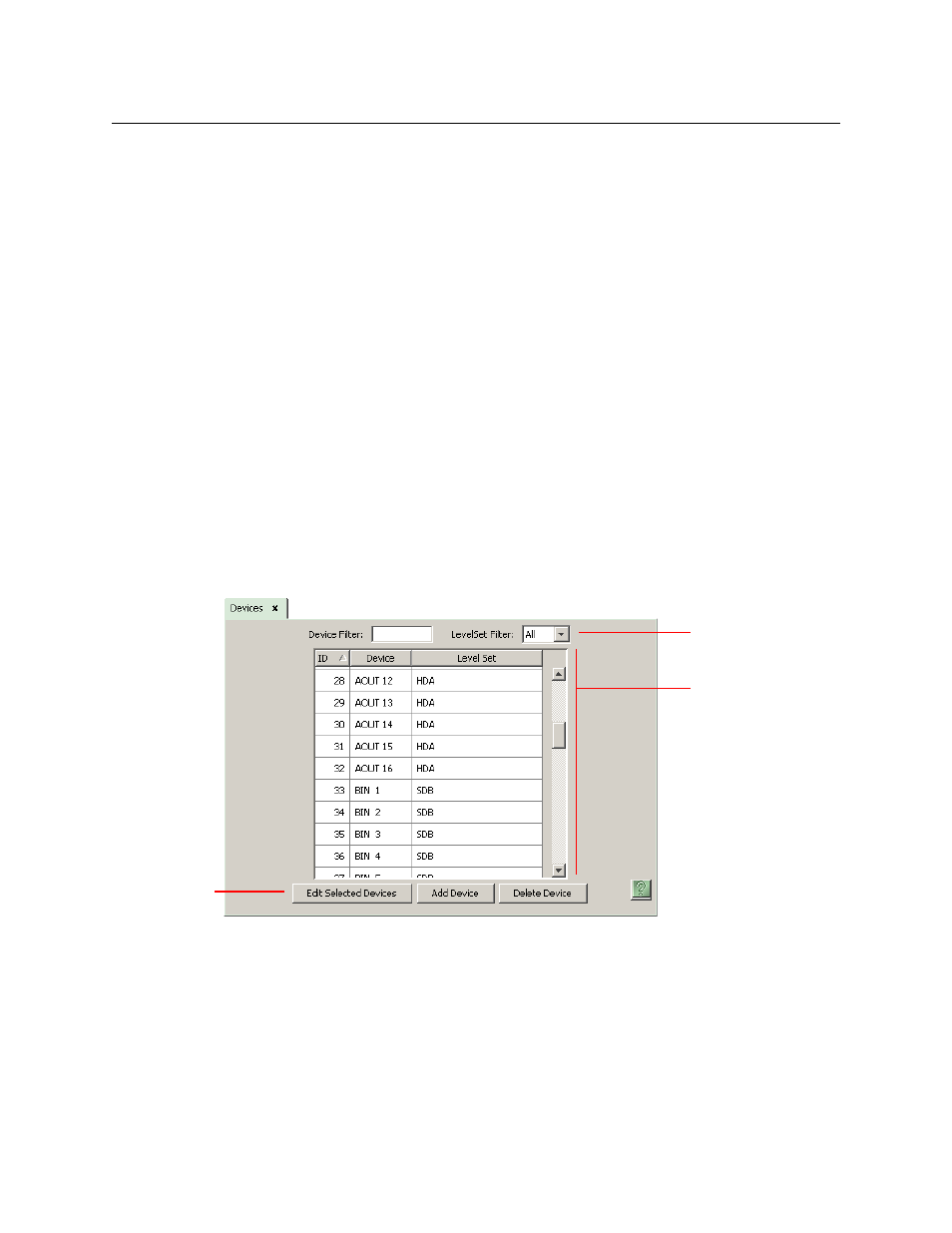

This is a typical ‘Devices’ page:
There are 3 sections in the page:
• Filters
• Device List
• Buttons
Filters
Device List
Buttons
