330
Control Panels
NV9649
Category Lists
Under server mode, operators can use the NV9649’s knob to select a device category.
To minimize the number of categories through which the operator must search, the configurer
must define a category list that includes only the categories through which the operator may
browse using the knob. The list is independent of the categories represented on buttons.
Follow these guidelines to create a category list.

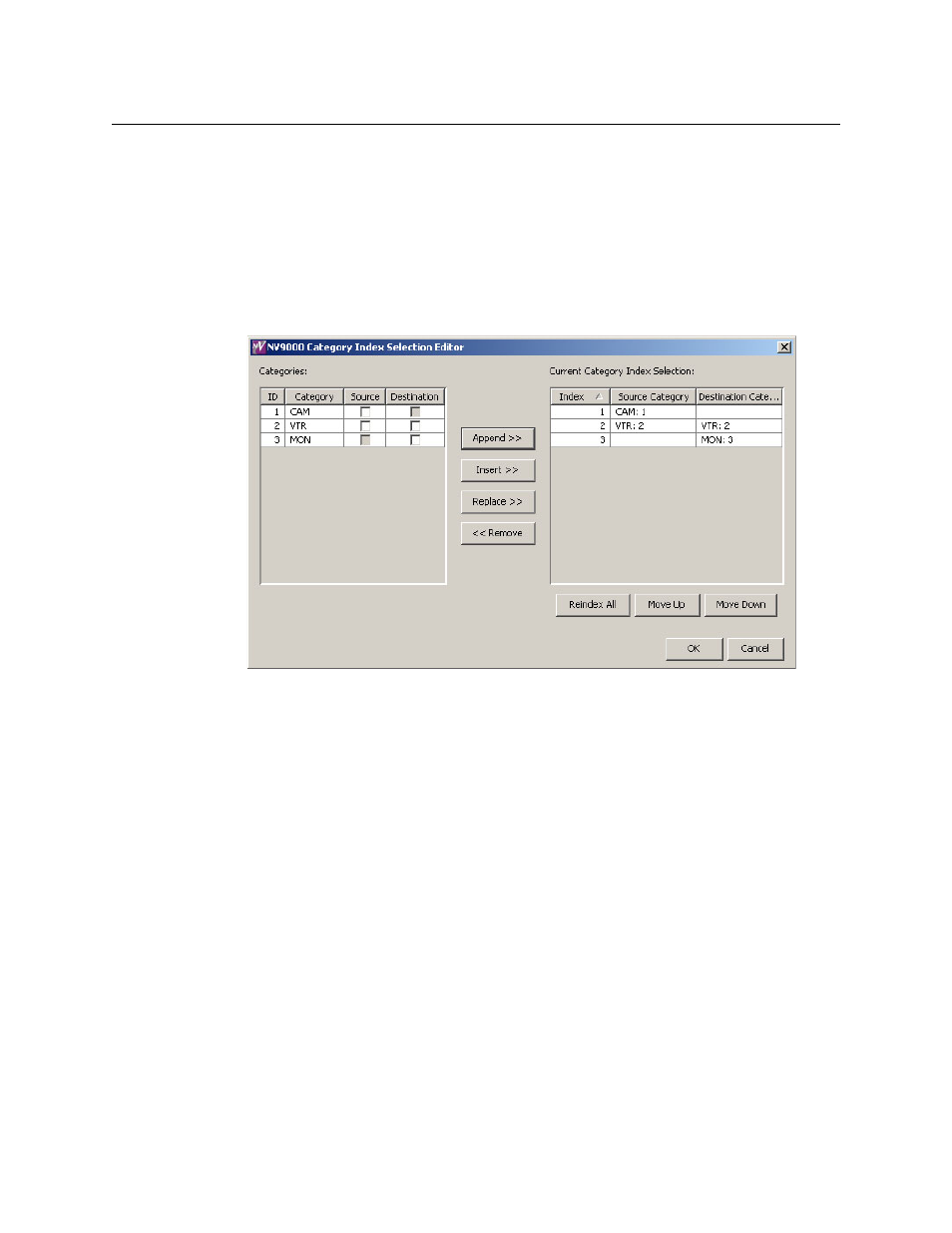

1 Right-click the display area of the panel graphic in the panel’s configuration page. The ‘Cate-
gory Index Selection Editor’ window appears:
On the left is a list of all categories defined in the NV9000 system. On the right is a list of the
categories in the list you are defining. Initially the list for the panel configuration is empty.
2 Modify the list.
To add categories to the list, select one or more categories on the left and copy it to the
right, using either the ‘Append’ button, the ‘Insert’ button, or the ‘Replace’ button.
The ‘Remove’ button removes highlighted categories from the right.
At the bottom right are ‘Move Up’ and ‘Move Down’ buttons. You can use these to adjust the
position of any category in the list.
Button Functions for LCD XY/MD mode
These are the button types available for NV9649 configurations under the LCD XY/MD model:
Back Broadcast Category Chop
Clear Preset Default State Destination Destination Lock
Destination Protect Free Source [Forward] Global Navigate
Hold Level Map Menu Name Set Toggle
Navigate Page Down Page Up Panel Lock
Preset Release Previous Source Quick Source Salvo
Save Preset Selection Source Source Master
Source/Destination Take XY Display XY/MD Mode
