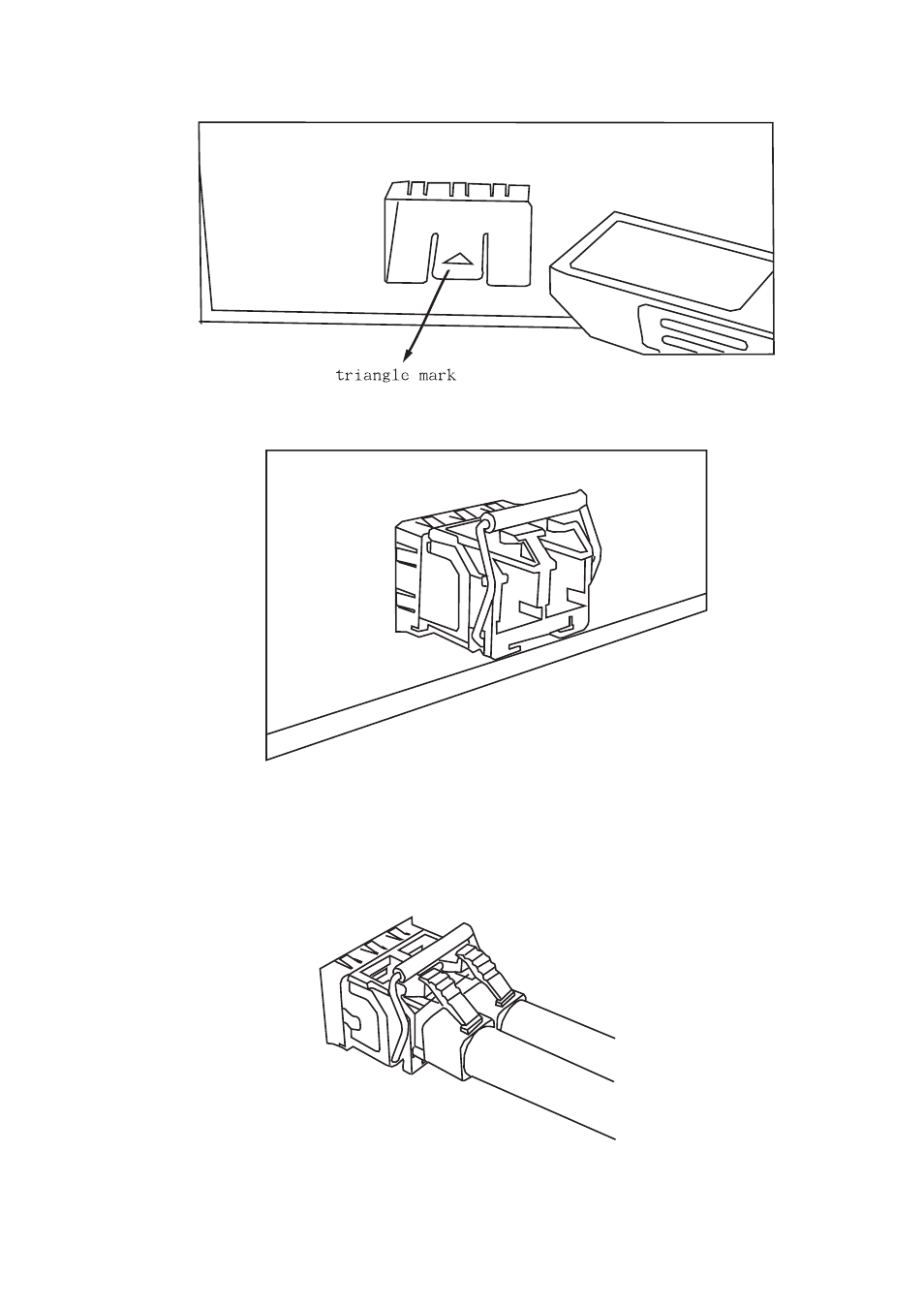

Insert transceiver into the SFP slot
Transceiver Inserted
Second, insert LC connector of the fiber cable into the transceiver.
LC connector to the transceiver
