4-28 W A N s u i t e 7 2 0 5
Idle Character Delay Maximum number of idle character time to wait before sending a frame.
Values: 0
−
65535
Default: 10
Input Terminator Character that terminates a message before sending a frame.
Values: 0
−
255
Default: 0
Data Direction Data direction that the port will support. If set to “Input,” the port will only
accept incoming data and will not transmit data. If set to “Output,” the port
will ignore any incoming data. If set to “Both,” the port will process all data.
Values: Input, Output, Both
Default: Both
The table below these parameters displays the SCADA statistics. You can
clear all SCADA statistics by selecting the “SCADA Clear Statistics” prompt
at the bottom of the screen.
Select the “SCADA Device List” prompt to bring up a screen that shows the
mapping between SCADA devices and endpoints (Figure 4.23).

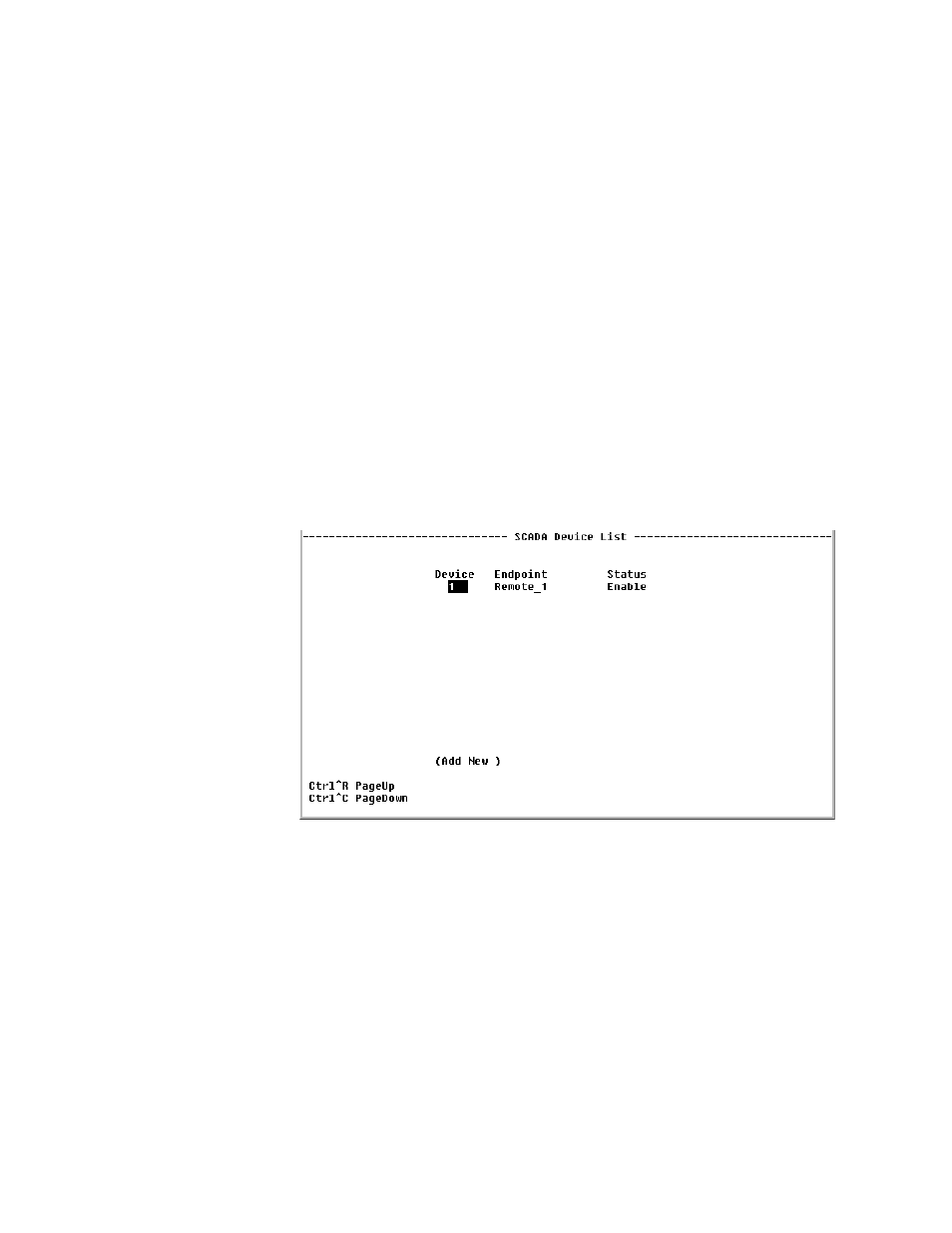

Figure 4.23 SCADA Device List Screen
Select the “SCADA Device Details” prompt to access a menu (Figure 4.24)
that lets you map SCADA devices to endpoints.
