84 QC-300 Series User’s Guide
Lines constructed from two lines
Up to three line constructions can be made from two lines:
• Midline 1:
Bisects the acute angle between the two lines
• Midline 2:
Bisects the obtuse angle between the two lines
• Gage line:
The line of a specified length perpendicular to bisector 1
(The user will be prompted for the length)
To construct a line from two lines:
1 Touch the Measure line icon
2 Touch the first line feature
3 Press the Enter key
4 Touch the second line feature
5 Press the Enter key
6 Press the Finish key
The bisector 1 line will be constructed. Alternative line constructions can be selected from the drop-down
menu in the DRO window.

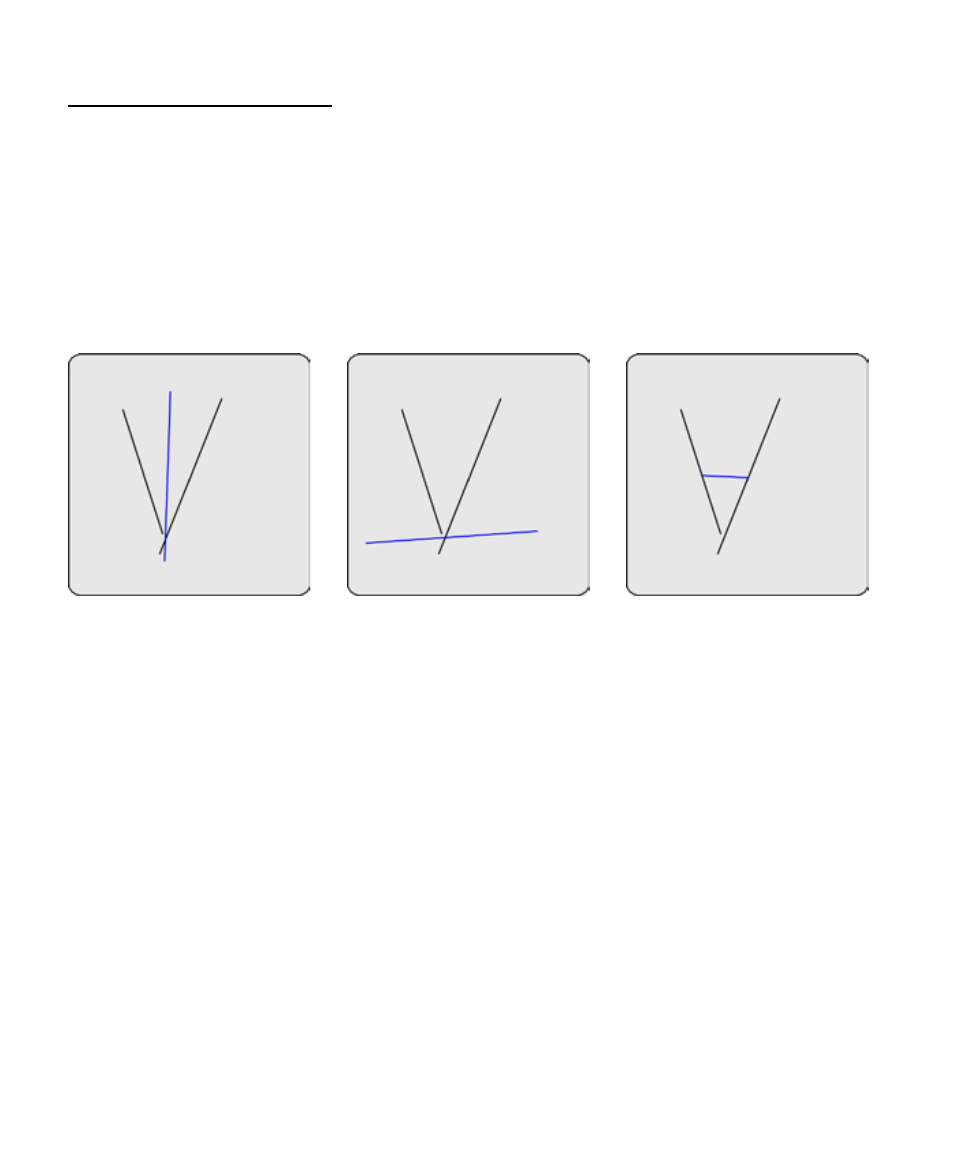

Midline 1 Midline 2 Gage line
