112 QC-300 Series User’s Guide

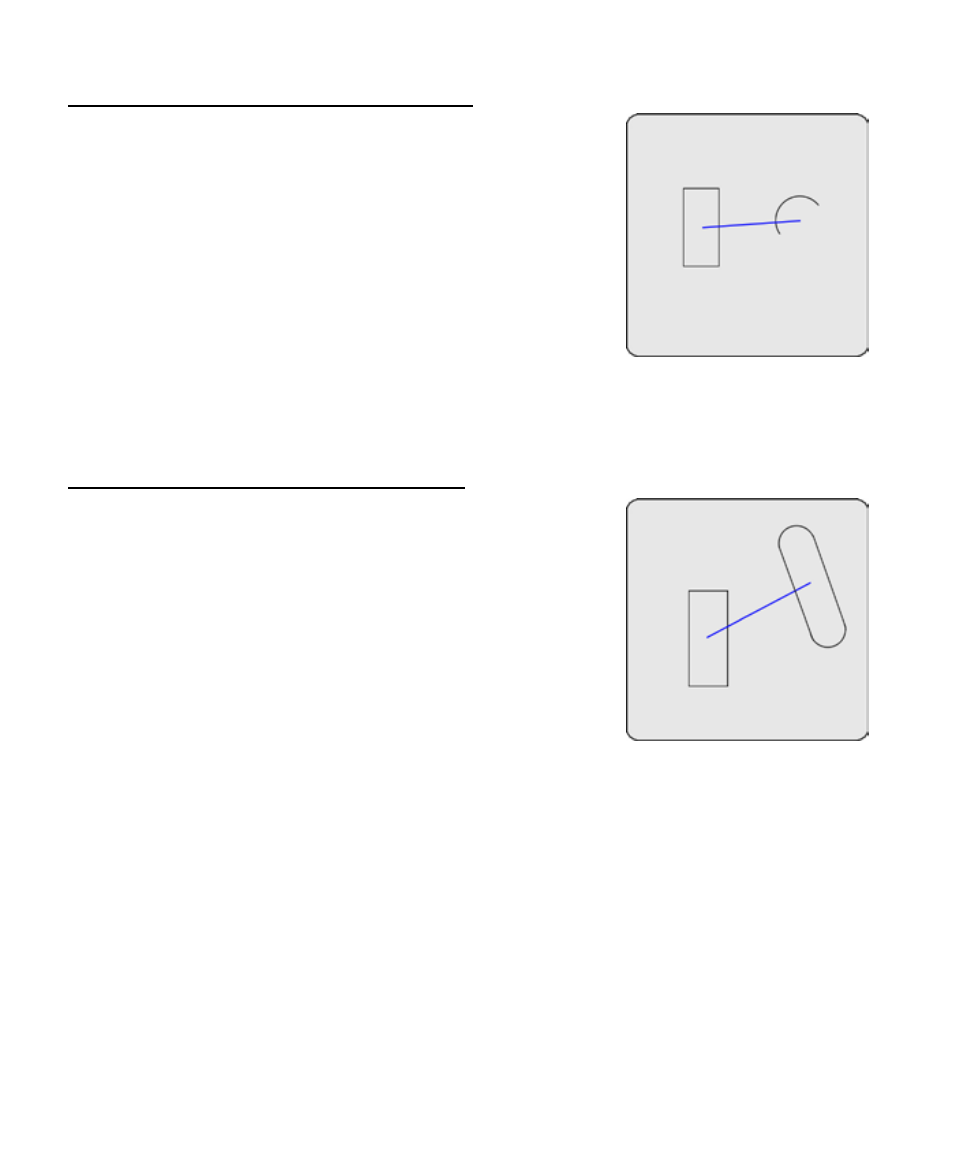

Distances constructed from a rectangle and an arc
The distance feature will be constructed between the centers of the rect-
angle and the arc.
To construct a distance from a rectangle and an arc:
1 Touch the Measure Distance icon
2 Touch the rectangle Feature
3 Press the Enter key
4 Touch the arc Feature
5 Press the Enter key
6 Press the Finish key
The distance feature will be constructed between the rectangle and the arc.
Distances constructed from a slot and a rectangle
The distance feature will be constructed between the centers of a slot
and a rectangle.
To construct a distance from a slot and a rectangle:
1 Touch the Measure Distance icon
2 Touch the slot Feature
3 Press the Enter key
4 Touch the rectangle Feature
5 Press the Enter key
6 Press the Finish key
The distance feature will be constructed between the slot and the rectangle.
