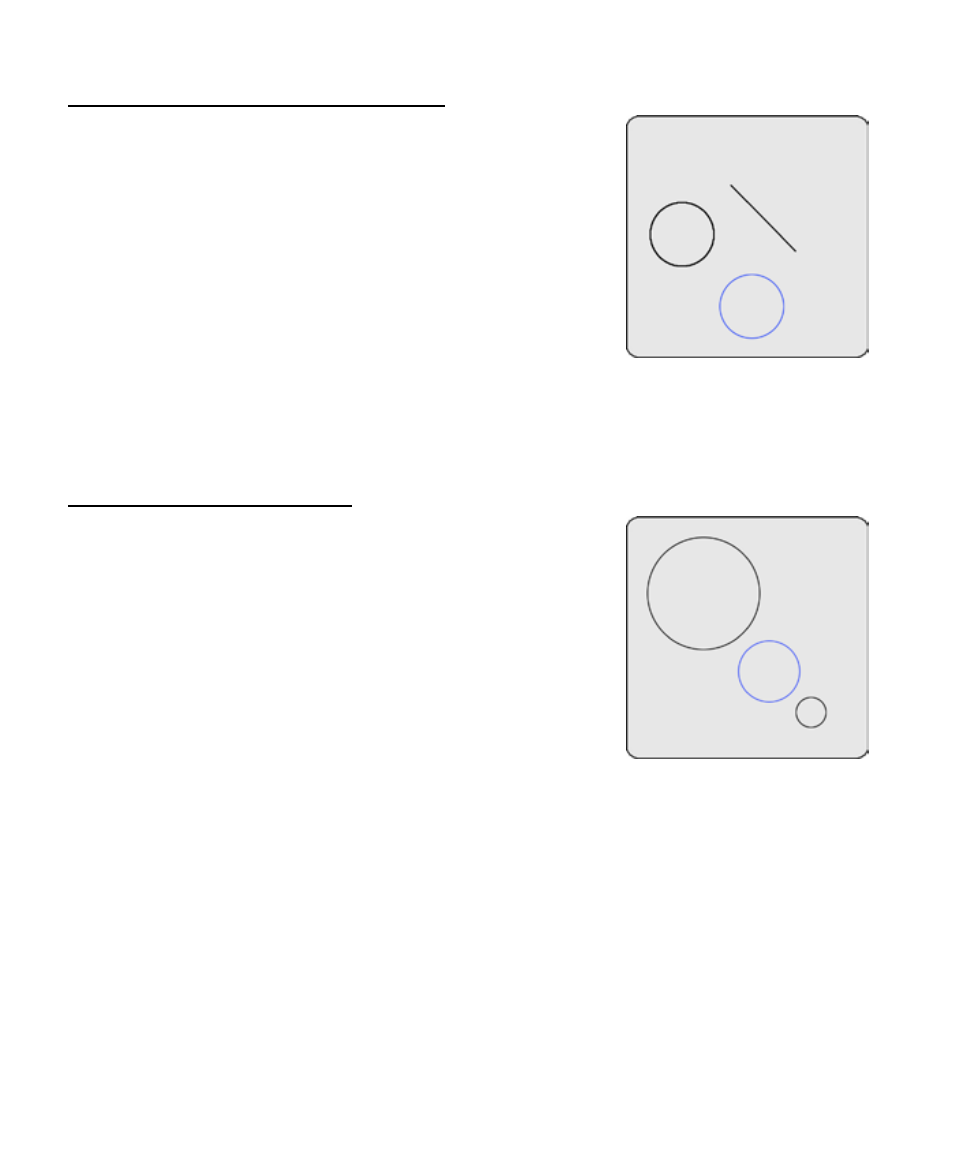

Circle constructed from a circle and a distance
An offset circle will be constructed from circle and distance parent fea-
tures. A circle equal to the parent circle will be constructed, offset the
amount equal to the parent distance.
To construct a circle from a circle and a distance:
1 Touch the Measure Circle icon
2 Touch the circle feature
3 Press the Enter key
4 Touch the distance feature
5 Press the Enter key
6 Press the Finish key
The offset circle will be constructed.
Circle constructed from two circles
The circle will be constructed as an average of the two parent positions
and sizes.
To construct a circle from two circles:
1 Touch the Measure Circle icon
2 Touch the first circle feature
3 Press the Enter key
4 Touch the second circle feature
5 Press the Enter key
6 Press the Finish key
The average circle will be constructed.
