168 QC-300 Series User’s Guide
Minimum setup requirements
In most cases, the QC-300 will be provided by a Metronics distributor or an
OEM and will be configured and ready to use. Setup by the end-user will be
unnecessary. However, if some setup is required, a minimum sequence of

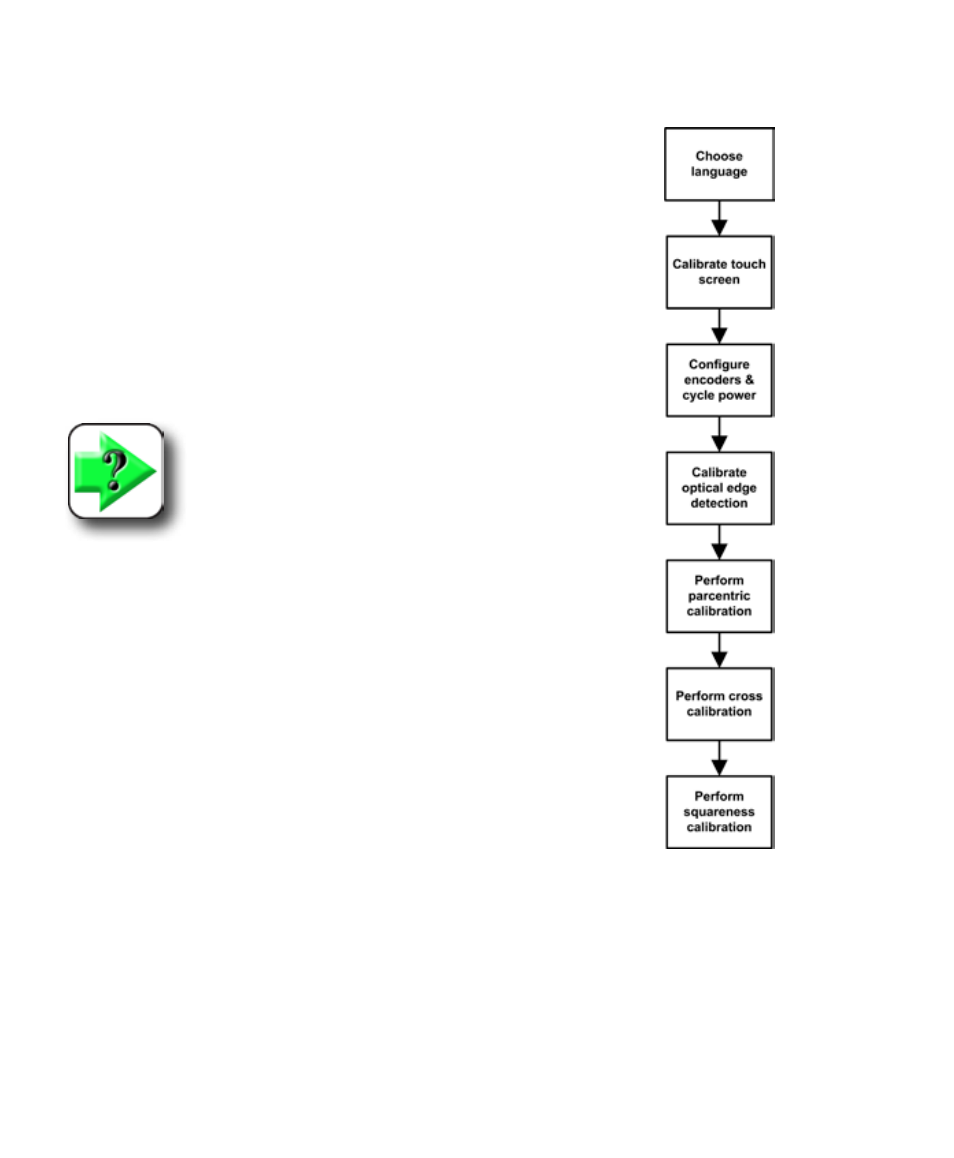

steps should be performed in the order shown by the block diagram. Each
block describes a setup task and refers to pages where detailed instructions
are presented.
A variety of optional setup steps can be performed after the minimum setup
to specify display, reporting and other parameters. These optional and all
other setup parameters and screens are described in detail in the remainder
of this chapter.
Familiarize yourself with the methods of accessing and
using the Setup menu described on earlier pages before
performing these minimum or additional optional setup
steps.
Page 169
Page 208
Page 172
Page 187
Page 189
Page 188
Page 175
