Overview
Measurements viewed on the LCD can be transmit ted to a PC over USB or RS-232 ports or to a printer
over the USB port.
The compact ergonomic design and adjustable-tilt front panel of the QC-300 allow users to locate and
mount the instrument in a wide variety of environments that accommodate nearly any viewing require-
ment. The tilt front panel can be adjusted and secured in any convenient position. Rubber feet on the
bottom prevent slip ping when the system is not permanently bolted to a work surface using the bolt holes
provided in the mounting stand.
Jacks are provided for optional optical edge detection inputs and for an optional foot switch. All the op-
tional accessories for the QC-300 are shown in detail at the rear of this guide in Chapter 13: Options.

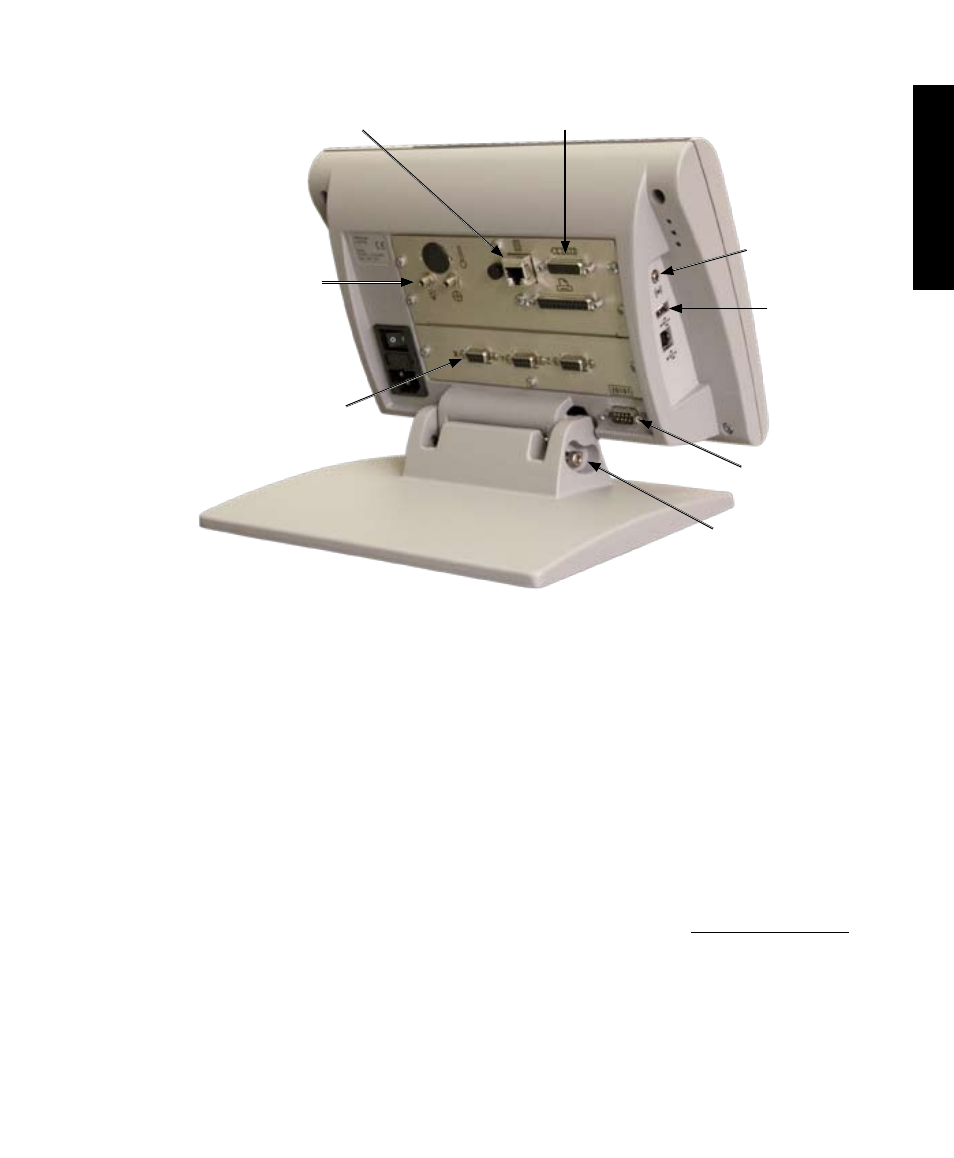

Speaker jack
Encoder inputs
Tilt adjust
RS-232 port
USB port
Optical inputs
Description of QC-300 Features
External footswitch CNC outputs
