52 QC-300 Series User’s Guide
Measurement activities
QC-300 measurement sessions can include two or more of the following activities:
• Establishing a measurement reference • Constructing features
• Probing and measuring features • Creating features

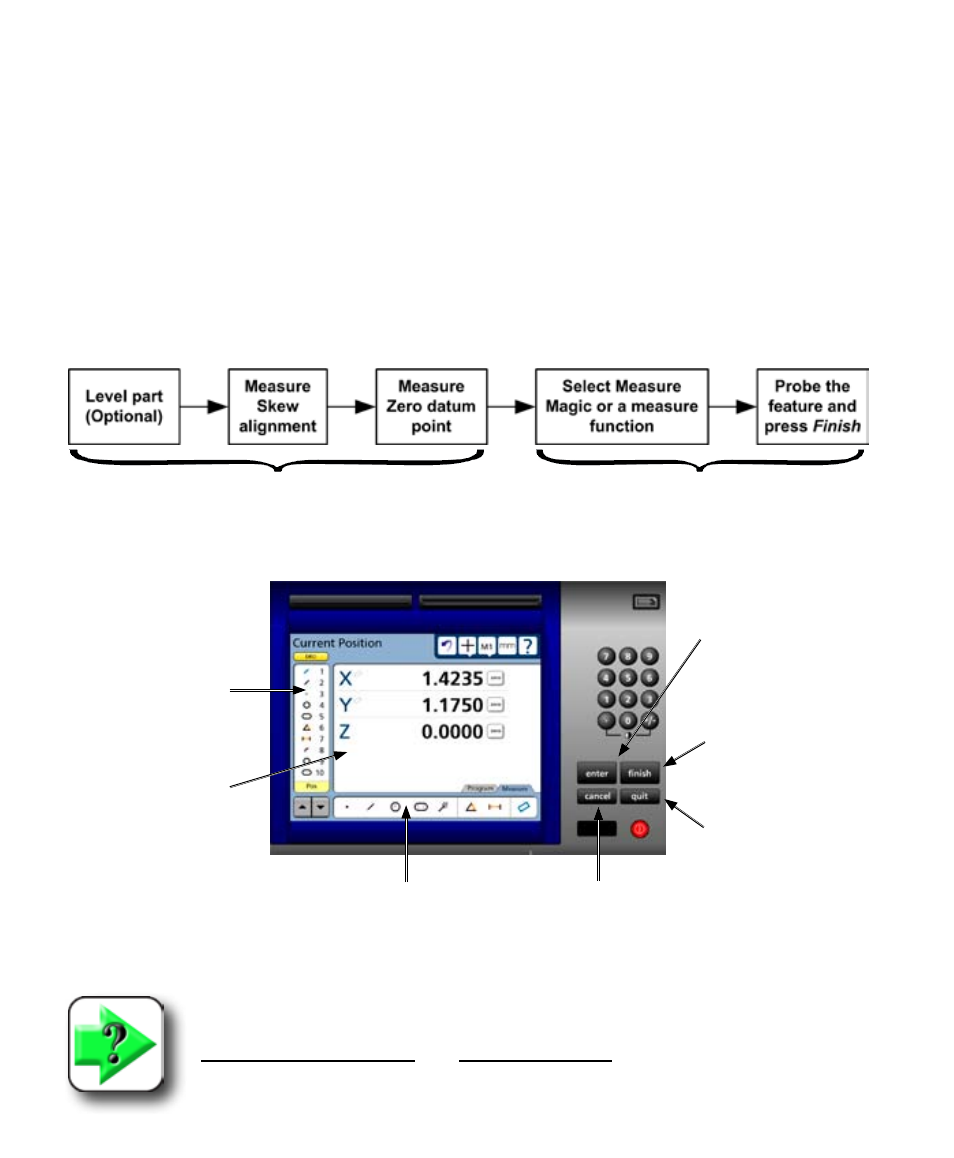

The measurement process
The basic measurement process shown here is identical for all feature types. The details of individual
measurement steps are described in the remaining pages of this section.
NOTE
Tools and controls for probing features and conducting measurements are discussed
in Chapter 3: User Interface, and Chapter 5: Probes.
Establishing a measurement reference Probing and measuring
Press the Finish key
to conclude a feature
measurement
Press the Quit key
to cancel a feature
measurement
Touch a measure icon
to begin a feature
measurement
Press the Cancel
key to delete the last
probed point
Measurement results
are shown in the
features list
Review part position
and other data
Press the Enter key to
probe a point or use
the auto enter mode
