122 QC-300 Series User’s Guide

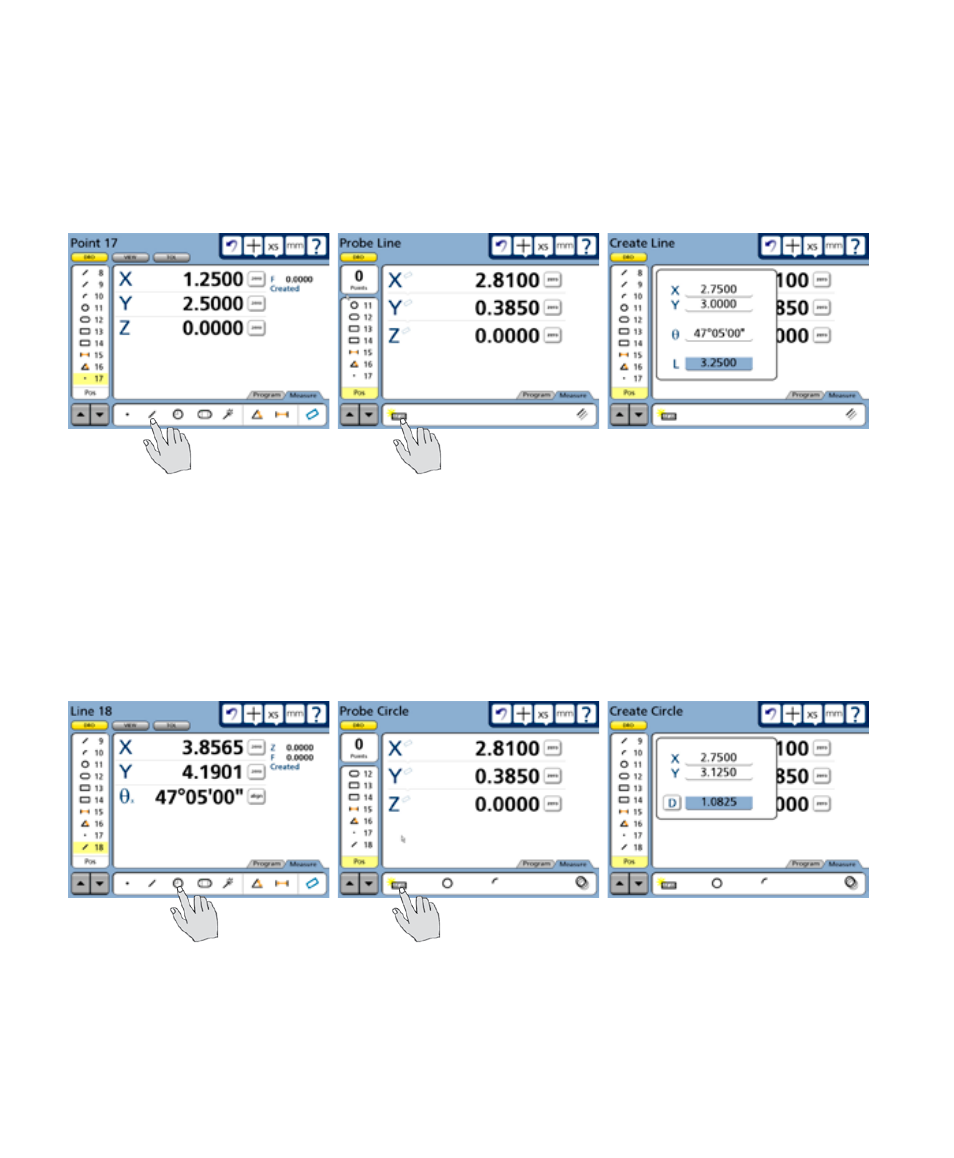

Creating a line
To create a line:
1 Touch the measure line icon, and then touch the data entry icon. The data entry box will be dis-
played.
2 Enter the feature data in the fields provided and press Finish.
Creating a circle
To create a circle:
1 Touch the measure circle icon, and then touch the data entry icon. The data entry box will be dis-
played.
2 Enter the feature data in the fields provided and press Finish.
