158 QC-300 Series User’s Guide
Sending data to a computer
Measurement data can be sent to a computer over the RS-232 serial port in the following formats:
• None No data will be sent to the computer
• Select User will be prompted to select the data that will be sent
• Report A standard report of all feature data or a tolerance report of only features that
have tolerances applied will be sent
To send data to a computer:

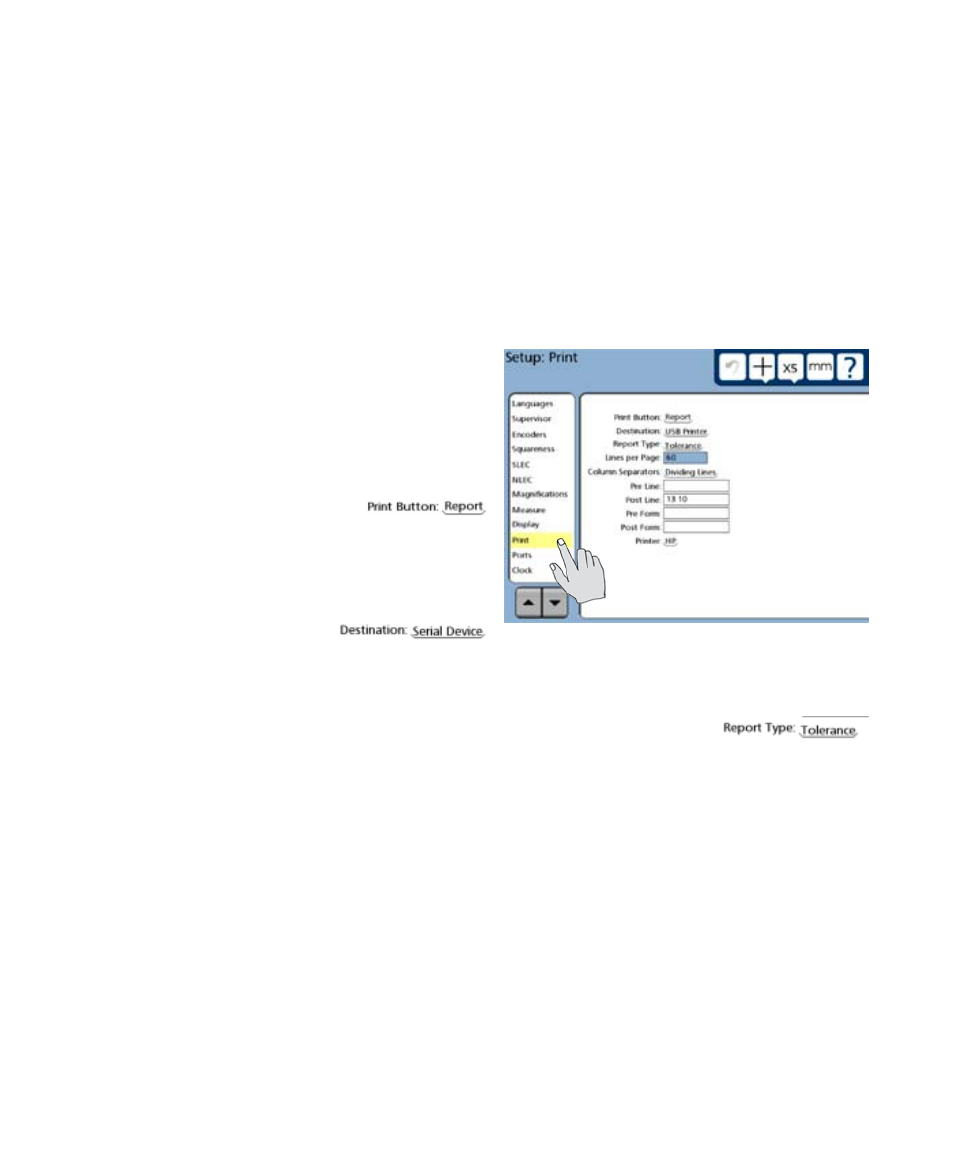

1 Touch the question mark Icon and display the
setup menu, then touch Print to display the Print setup
screen.
2 Verify that the desired data is specified in the Print
Button choice field. None, Select or Report can be
specified. In this example, the Re-
port is specified.
3 Verify that the Serial Device is specified in the
Destination field. In this example, the communication
will be with a computer, so the
Serial port is specified.
4 Verify that the desired report is specified in the Report Type setup choice field. Standard, Export or
Tolerance can be specified. In this example, a Tolerance report is specified.
5 Specify other settings that are consistent with the computer application’s re-
quirements.
6 Press the Finish key to exit the setup mode, and then press the Print key to send the data to a com-
puter.
