Chapter 4 General Measuring

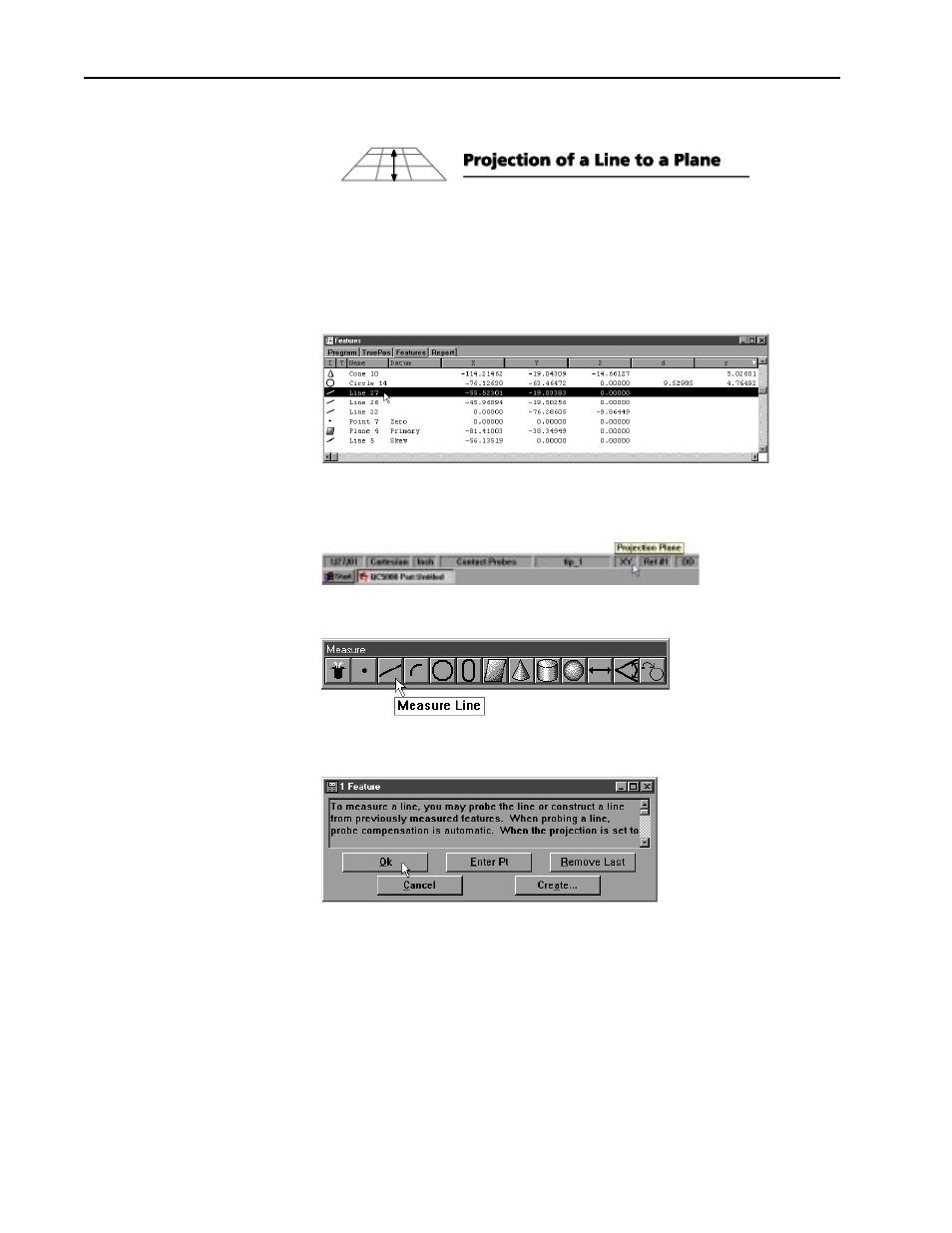

To construct a line by projecting an existing line on a new pro-
jection plane
Step 1
Use the mouse to highlight a line on the features list.
Step 2
Click on the projection box in the status bar until the desired projection (XY,
YZ, ZX) plane appears.
Step 3
Click the line button on the measure toolbar.
Step 4
Click OK in the dialog box.
