Constructing Features
It is sometimes useful to construct a new feature from existing features. This
section demonstrates all feature constructions.
Point Constructions

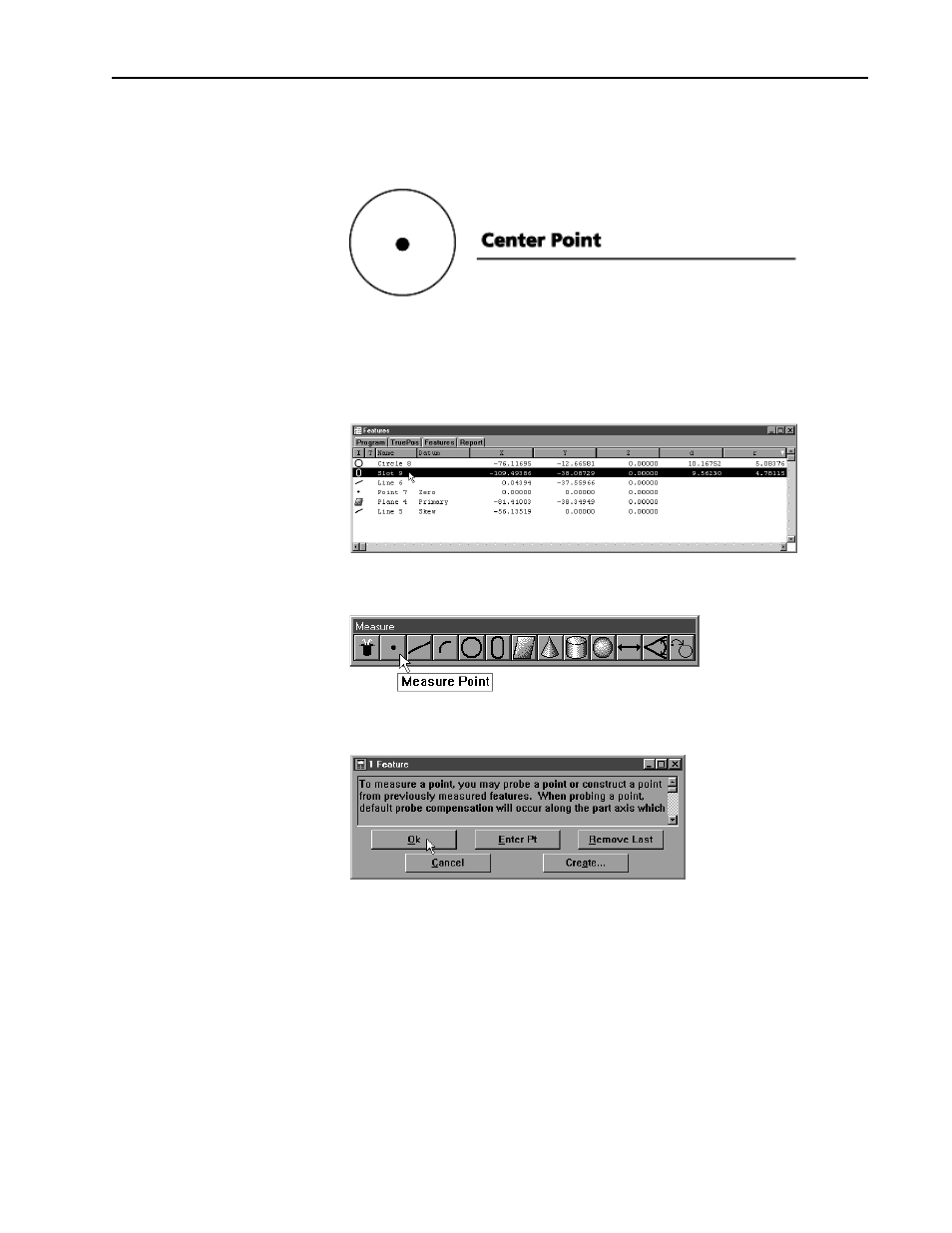

To construct a center point
Step 1
Use the mouse to highlight a slot, circle, or other positional feature on the fea-
tures list.
Step 2
Click point button on the measure toolbar.
Step 3
Click OK in the dialog box.
