Chapter 6 Templates
Sample Formula
The following example creates a formula to group circle features into by size.
Use the formula:
If(Diameter<0.381,”Small”,”Large”)
to sort circle features into two groups: large or small.
To create the sample formula
NOTE NOTE NOTE NOTE NOTE
This formula is an example. Steps can be varied to suit specific This formula is an example. Steps can be varied to suit specific This formula is an example. Steps can be varied to suit specific This formula is an example. Steps can be varied to suit specific This formula is an example. Steps can be varied to suit specific
applications. Once you have created this formula it is easy to
applications. Once you have created this formula it is easy to applications. Once you have created this formula it is easy to applications. Once you have created this formula it is easy to applications. Once you have created this formula it is easy to
create other formulas for your applications.
create other formulas for your applications. create other formulas for your applications. create other formulas for your applications. create other formulas for your applications.

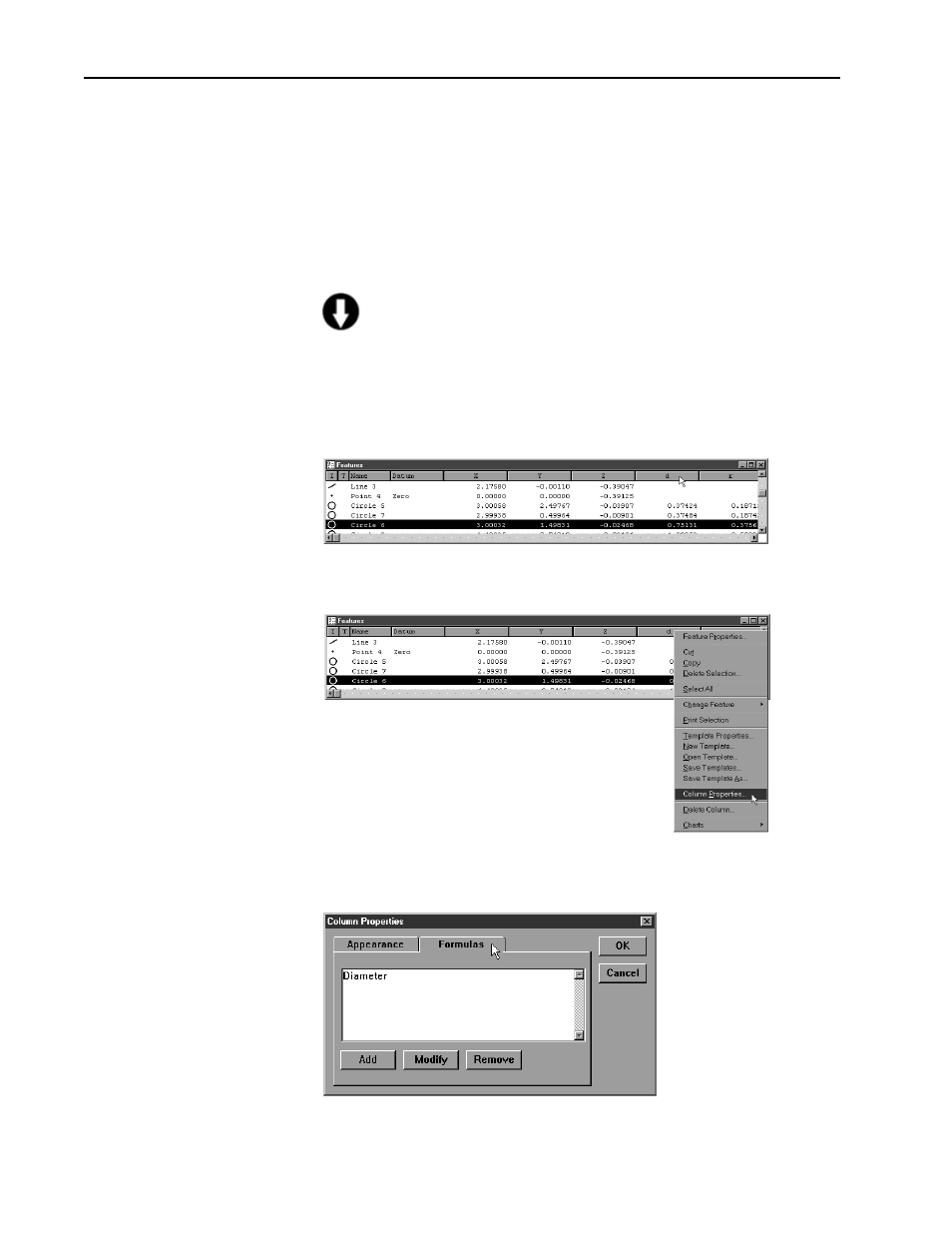

Step 1
Right click at the top of the template column as shown.
Step 2
Select column properties from the list.
Step 3
Click on the formulas tab.
