Feature type diagram /feature stamp

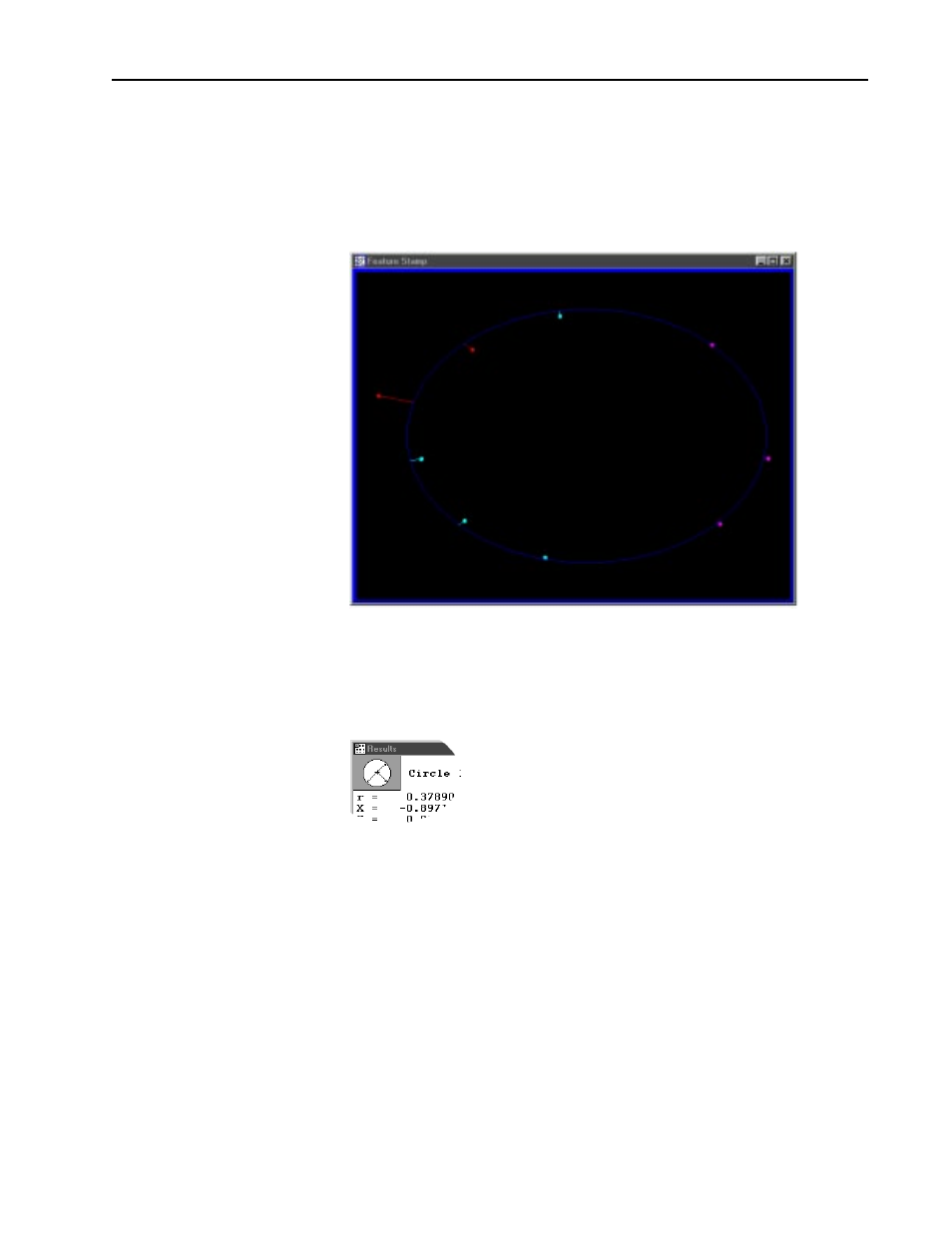

Clicking on the feature stamp icon opens the feature stamp window. The
feature stamp window shows a graphic display of the feature and the
distibution of the measurement points. Points discarded from the mea-
surement are shown in red. Use the view toolbar to change the perspective
in the feature stamp window.
To open the feature stamp window
Step 1
Click the feature stamp button in the results window.
