202
Chapter 5 Advanced Measuring & Output
MMC/LMC (maximum material condition/least material condi-
tion) tolerance (circles, points arcs, spheres)
Use MMC/LMC tolerances for bores and bosses to specify nominal X, Y, and Z
positions for a selected feature, specify nominal diameter, specify nominal size,
specify bore or boss setting, and calculate pass/fail results. MMC/LMC
tolerancing factors true position bonus into its calculations.

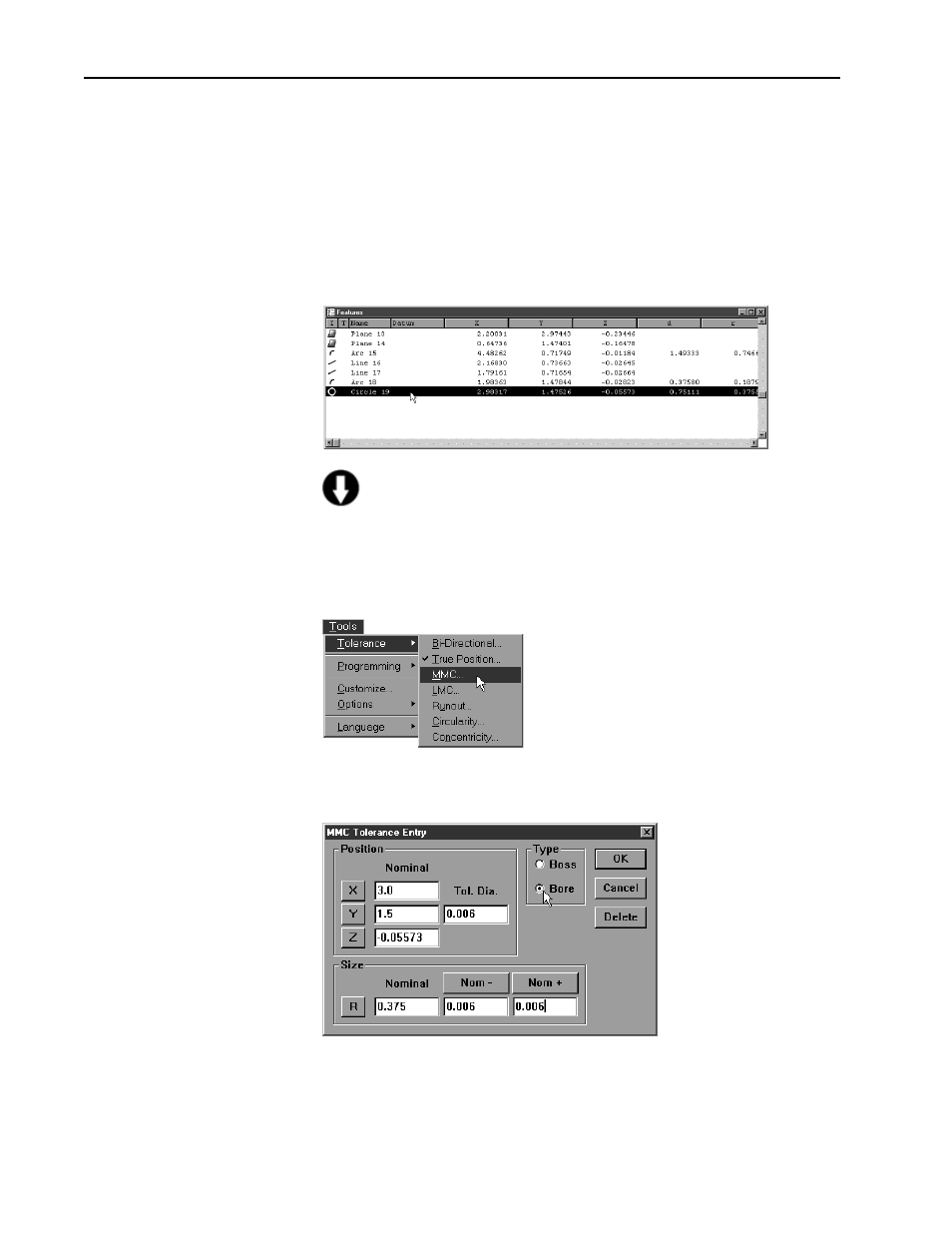

To perform a MMC tolerance
Step 1
Highlight the desired feature in the features list.
NOTE NOTE NOTE NOTE NOTE
Use only a circle, point, arc, or sphere. MMC tolerances do not Use only a circle, point, arc, or sphere. MMC tolerances do not Use only a circle, point, arc, or sphere. MMC tolerances do not Use only a circle, point, arc, or sphere. MMC tolerances do not Use only a circle, point, arc, or sphere. MMC tolerances do not
apply to other types of features.
apply to other types of features. apply to other types of features. apply to other types of features. apply to other types of features.
Step 2
Select tolerance then MMC from the tools menu.
Step 3
Type the nominal X and Y values for your part in the boxes as shown.
