169
Quadra-Chek ® 5000
Layers
The part view window is made up of layers similar to a CAD drawing. Each
layer contains features and can be displayed alone or with other layers. This
allows the user to sort features into related groups and assign them to one layer.
Layers can be hidden from view, turned on/off, and assigned colors.
Assign features that are related or likely to be viewed together to the same layer.
This allows features to be selected as layer instead of selecting each feature indi-
vidually.
NOTE NOTE NOTE NOTE NOTE
The features in the following procedures are for demonstration The features in the following procedures are for demonstration The features in the following procedures are for demonstration The features in the following procedures are for demonstration The features in the following procedures are for demonstration
purposes only
purposes only purposes only purposes only purposes only. These procedures will work with any features you . These procedures will work with any features you . These procedures will work with any features you . These procedures will work with any features you . These procedures will work with any features you
choose. choose. choose. choose. choose.

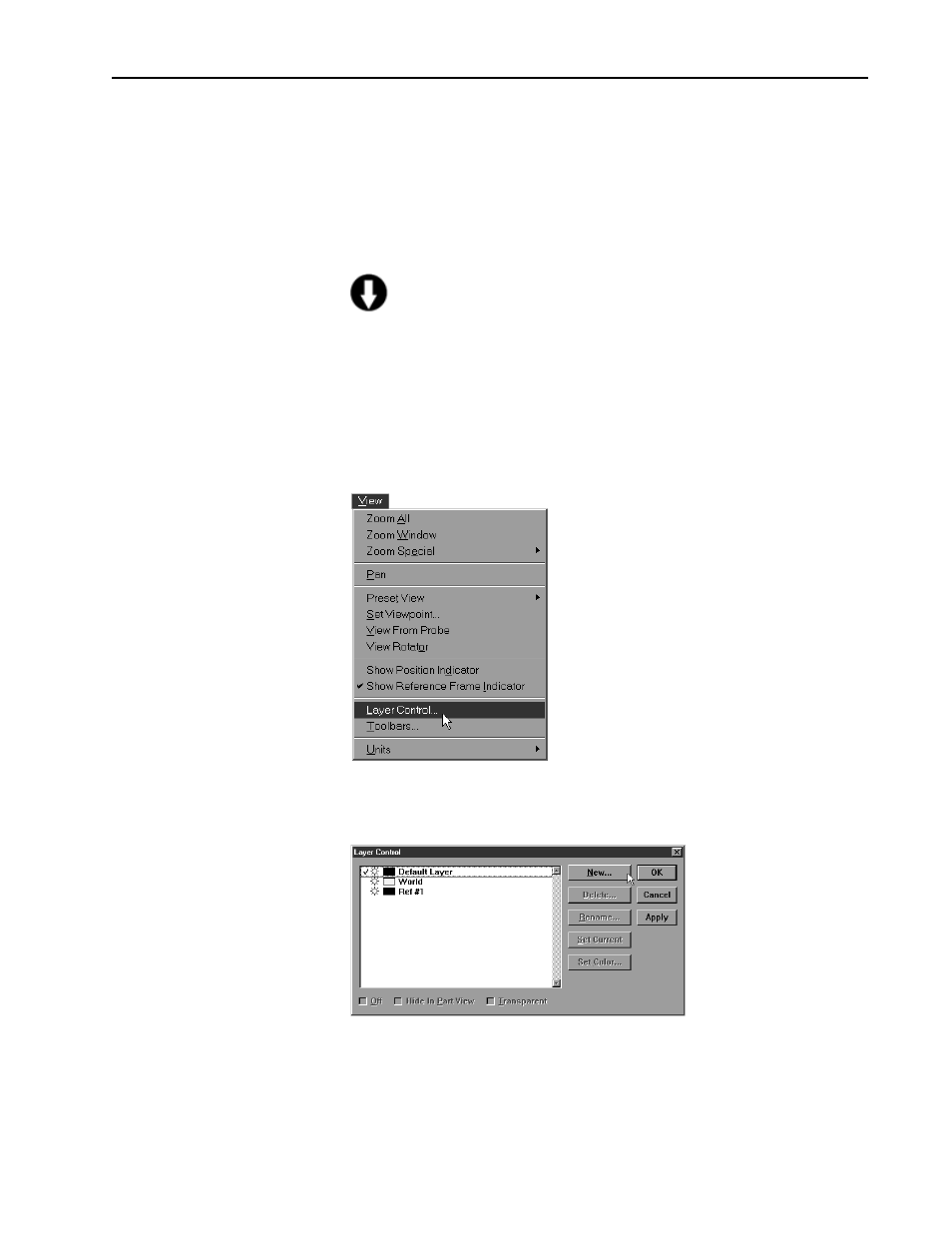

To create a new layer
Step 1
Select layer control from the view menu.
Step 2
Click the new button in the dialog box.
