192
Chapter 5 Advanced Measuring & Output

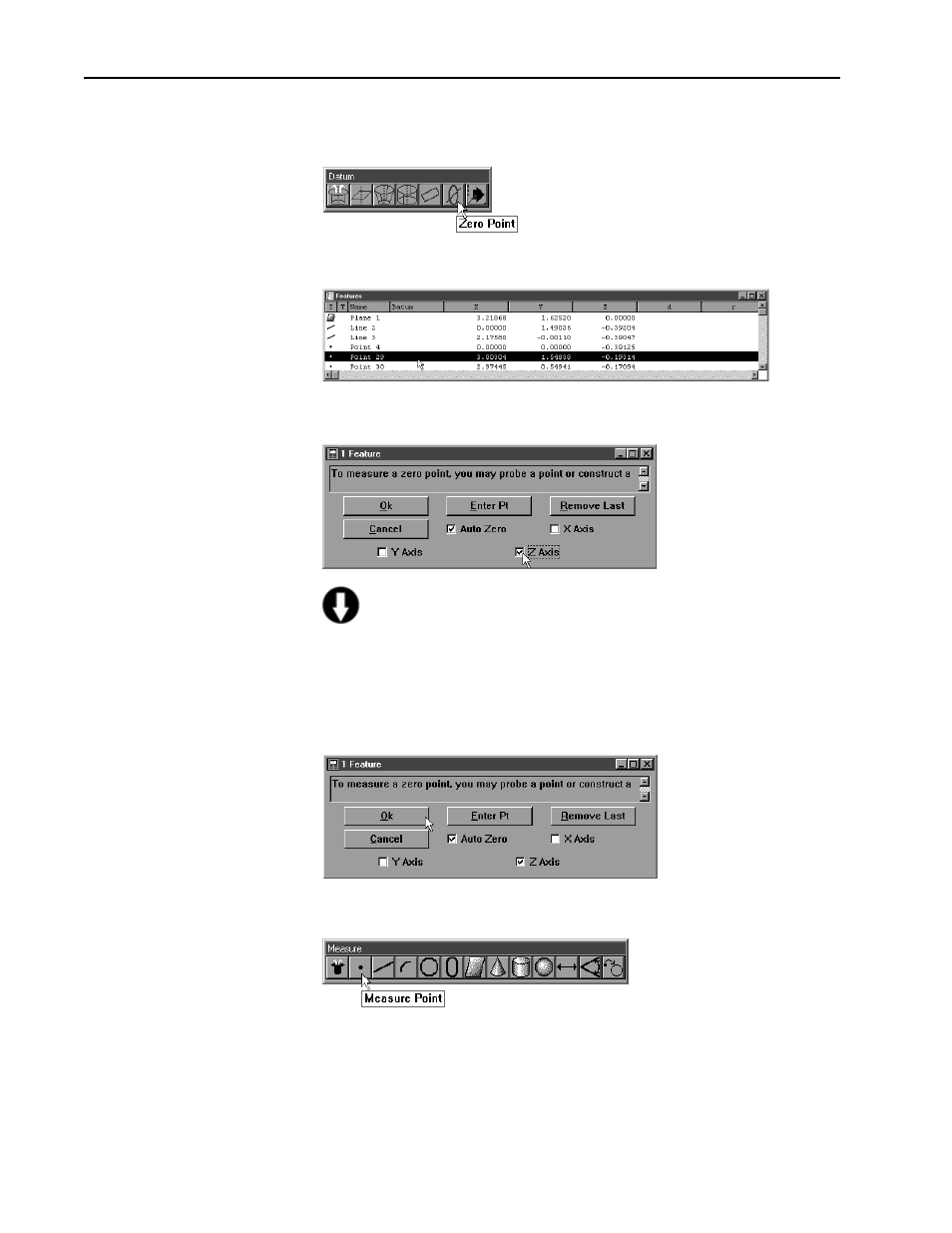

To perform an offest alignment (zero point)
Step 1
Click the zero point button on the datum toolbar.
Step 2
Highlight one of the three original points (features) in the features list.
Step 3
Check the axis to be zeroed as shown.
NOTE NOTE NOTE NOTE NOTE
Check the axis used as the skew in (secondary line) Step 4. F Check the axis used as the skew in (secondary line) Step 4. F Check the axis used as the skew in (secondary line) Step 4. F Check the axis used as the skew in (secondary line) Step 4. F Check the axis used as the skew in (secondary line) Step 4. For or or or or
example, if you input Y nominals in (secondary line) Step 4, check example, if you input Y nominals in (secondary line) Step 4, check example, if you input Y nominals in (secondary line) Step 4, check example, if you input Y nominals in (secondary line) Step 4, check example, if you input Y nominals in (secondary line) Step 4, check
the X axis.
the X axis. the X axis. the X axis. the X axis.
Step 4
Click OK in the dialog box.
Step 5
Click the point button on the measure toolbar.
