Quadra-Chek ® 5000
303
•

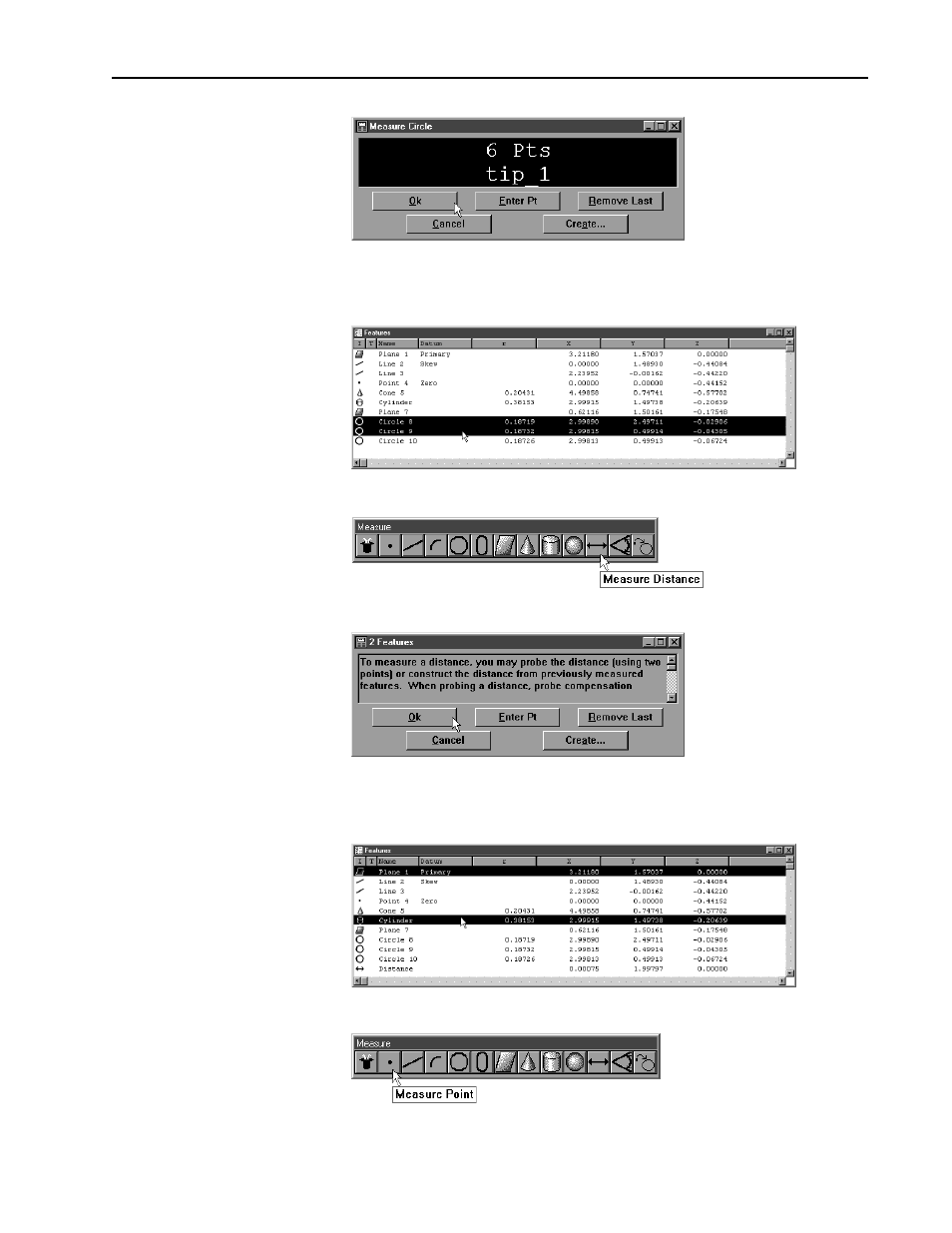

measure the circle using 6 points
Step 11
Construct a center-to-center distance between the circles 8 and 9.
•
Highlight circles 8 and 9 in the features list
•
Click the measure distance button on the measure toolbar
•
Click OK in the dialog box
Step 12
Construct a point from the cylinder and the primary plane.
•
Highlight the cylinder and the primary plane in the features list
•
Click the point button on the measure toolbar
