Welcome to the QC5000
The Quadra-Chek 5000 software suite is an advanced software application
for coordinate measurement machines (CMM). It features a graphical user
interface for simple point and click operation. Point the cursor to a feature
on the measure toolbar and click.
The QC5000 measures part features using the simplest geometric compo-
nents: points. Lines can be created from two points, circles from three
points, and cones from six points. Simply probe the points and the
QC5000 measures the feature.

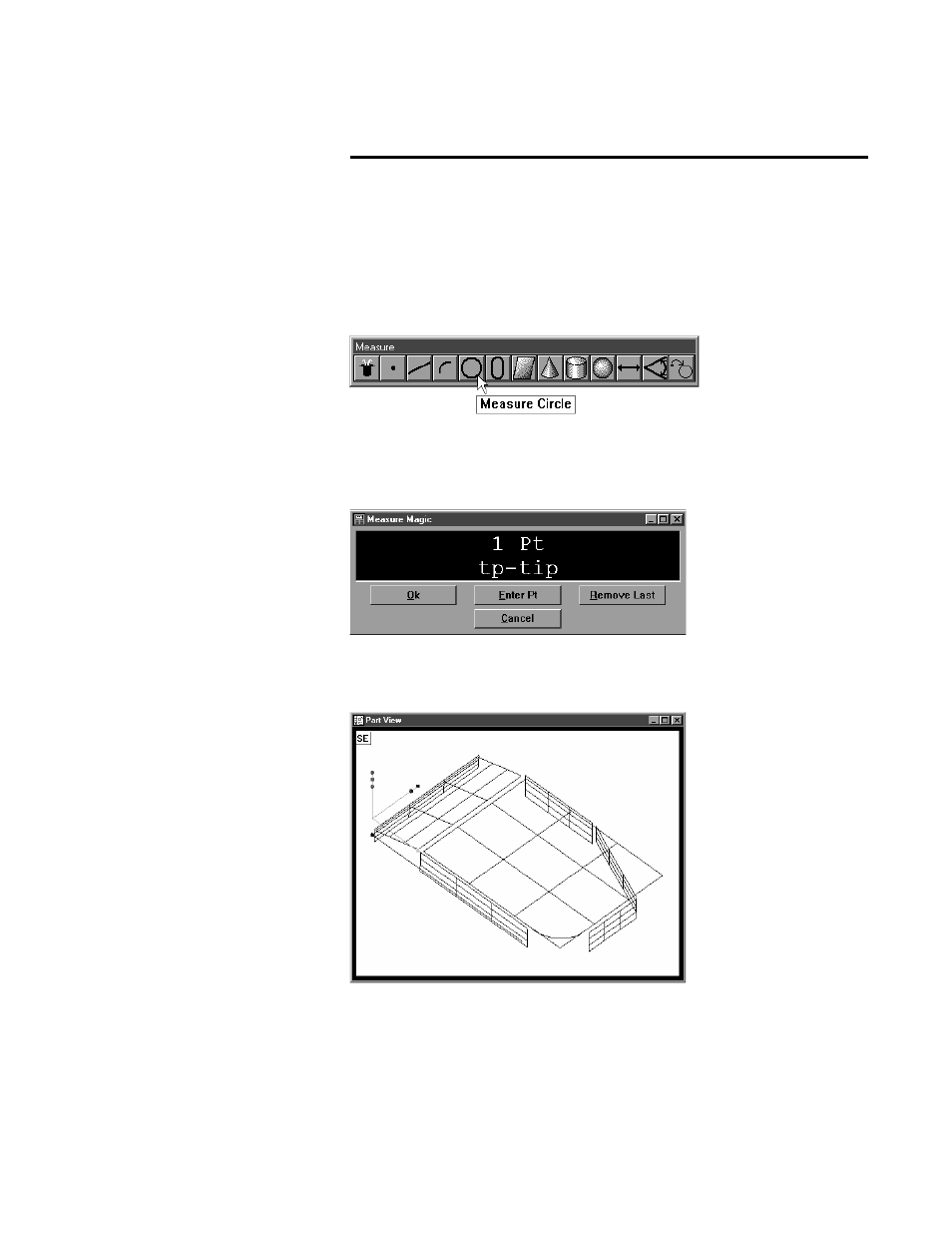

Once the required number of points are entered the QC5000 displays the
feature in the part view window.
