Quadra-Chek ® 5000
To perform a LMC
Step 1

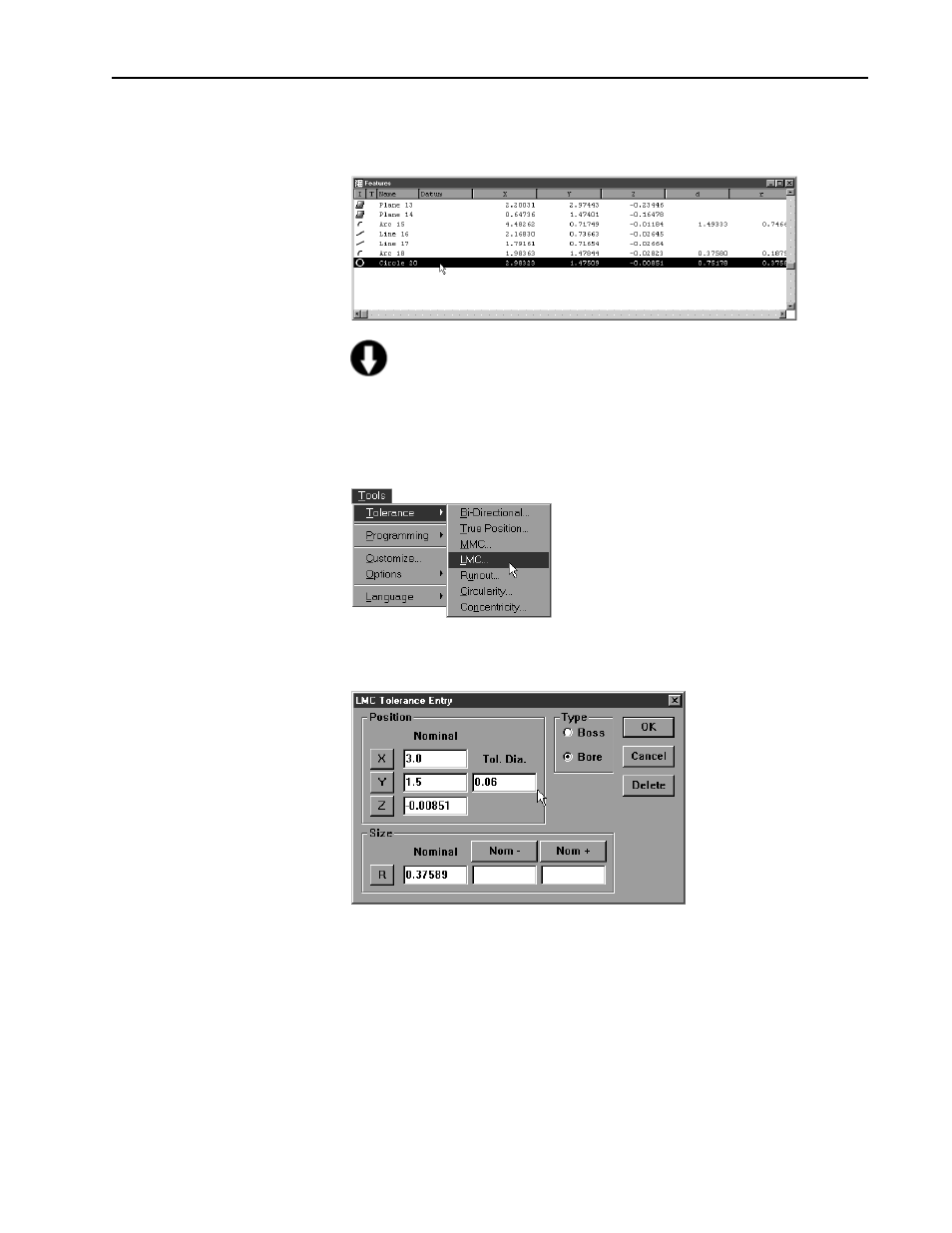

Highlight the desired feature in the features list.
NOTE NOTE NOTE NOTE NOTE
Use only a circle, point, arc, or sphere. MMC tolerances do not Use only a circle, point, arc, or sphere. MMC tolerances do not Use only a circle, point, arc, or sphere. MMC tolerances do not Use only a circle, point, arc, or sphere. MMC tolerances do not Use only a circle, point, arc, or sphere. MMC tolerances do not
apply to other types of features.
apply to other types of features. apply to other types of features. apply to other types of features. apply to other types of features.
Step 2
Select tolerance then LMC from the tools menu.
Step 3
Type the nominal X and Y values for your part in the boxes as shown.
