Chapter 1 Overview
14
Template Windows
Template windows display data output from QC5000 measurements and
programs. See Chapter 4: Advanced Measuring & Output for more infor-
mation on using template windows.

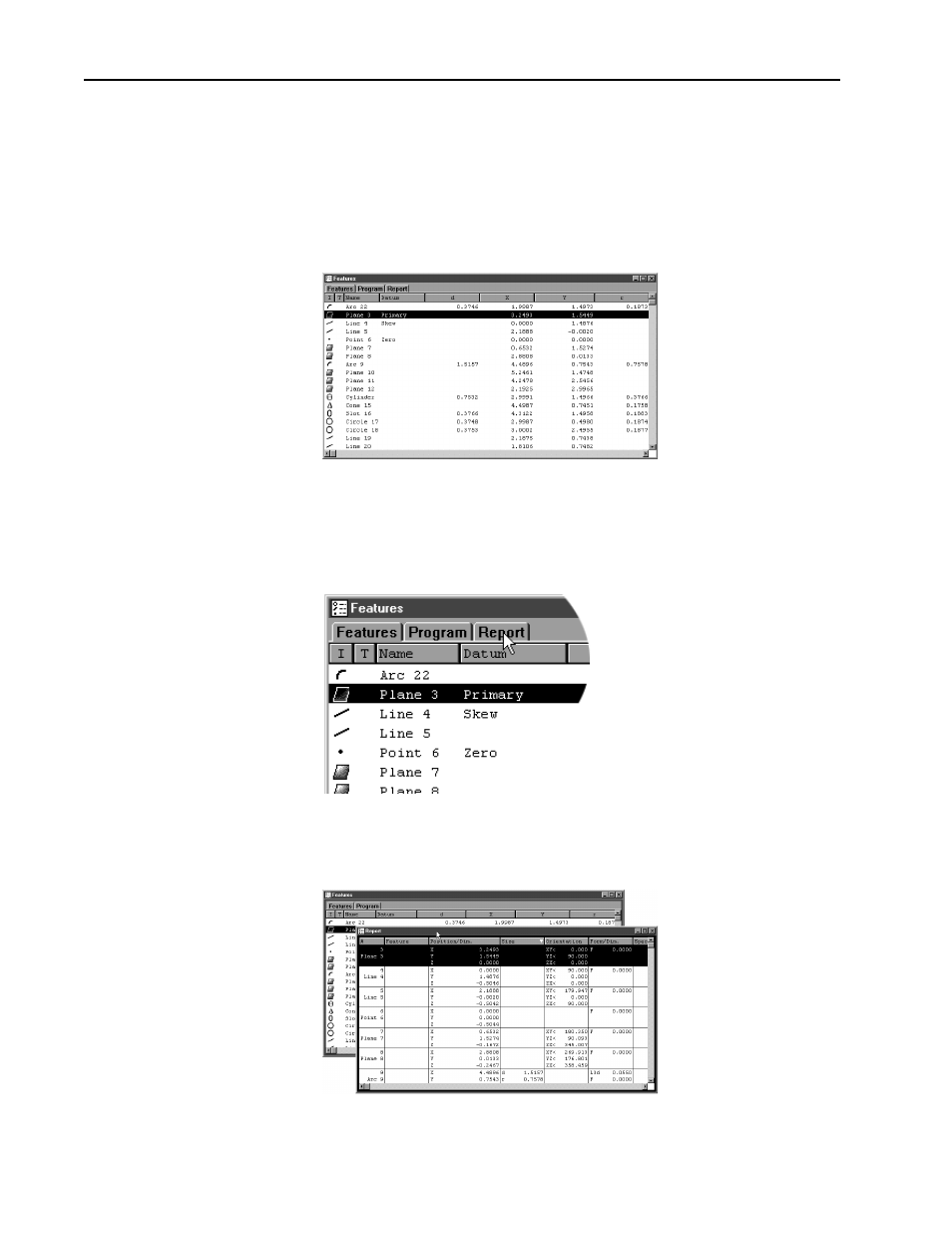

Nest templates windows as shown to conserve space on the QC5000 screen.
For example, the window below contains the features, program, and re-
port templates nested in a single window. View the desired template by
selecting the proper tab. In the example below, the feature tab is selected.
To separate template windows
Step 1
Place the cursor over the desired tab as shown.
Step 2
Hold the left mouse button and drag the tab outside the current window
as shown.
