Chapter 1 Overview
12
The Part View Window

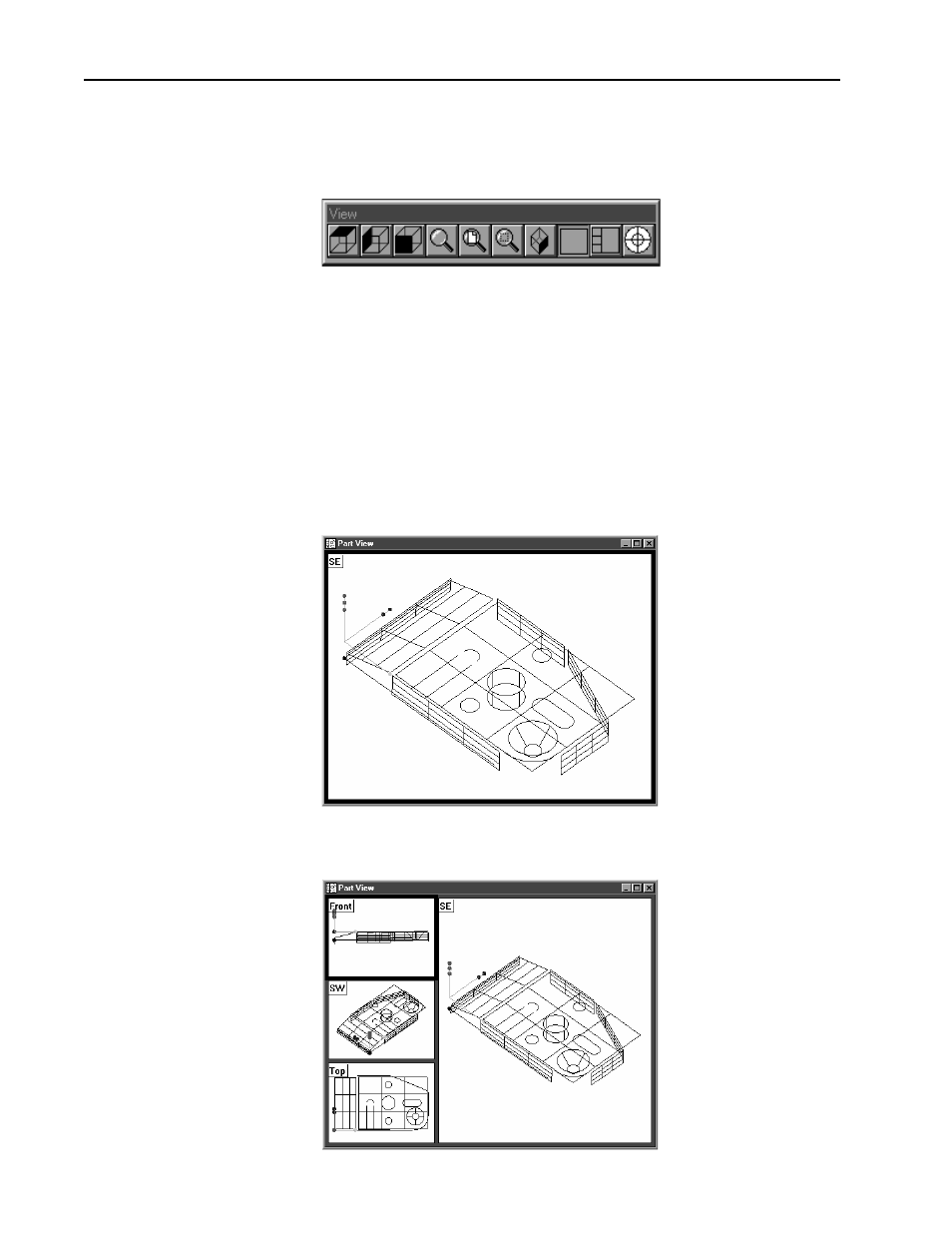

The part view window displays a graphical representation of the part and
its features. Use the view toolbar to change the appearence of the part view
window.
This is a typical view toolbar. Remember that QC5000 toolbars can be
customized. Toolbars pictured in this guide may vary from those on your
system.
Four pane part view displays the part from four separate vantage points.
Highlighted panes are outlined in blue. Place the cursor on the pane and
click to highlight. Only one pane can highlighted at a time.
The most common part view window appearences are shown here.
Single pane part view
Four pane part view
