382
Chapter 8 Setup

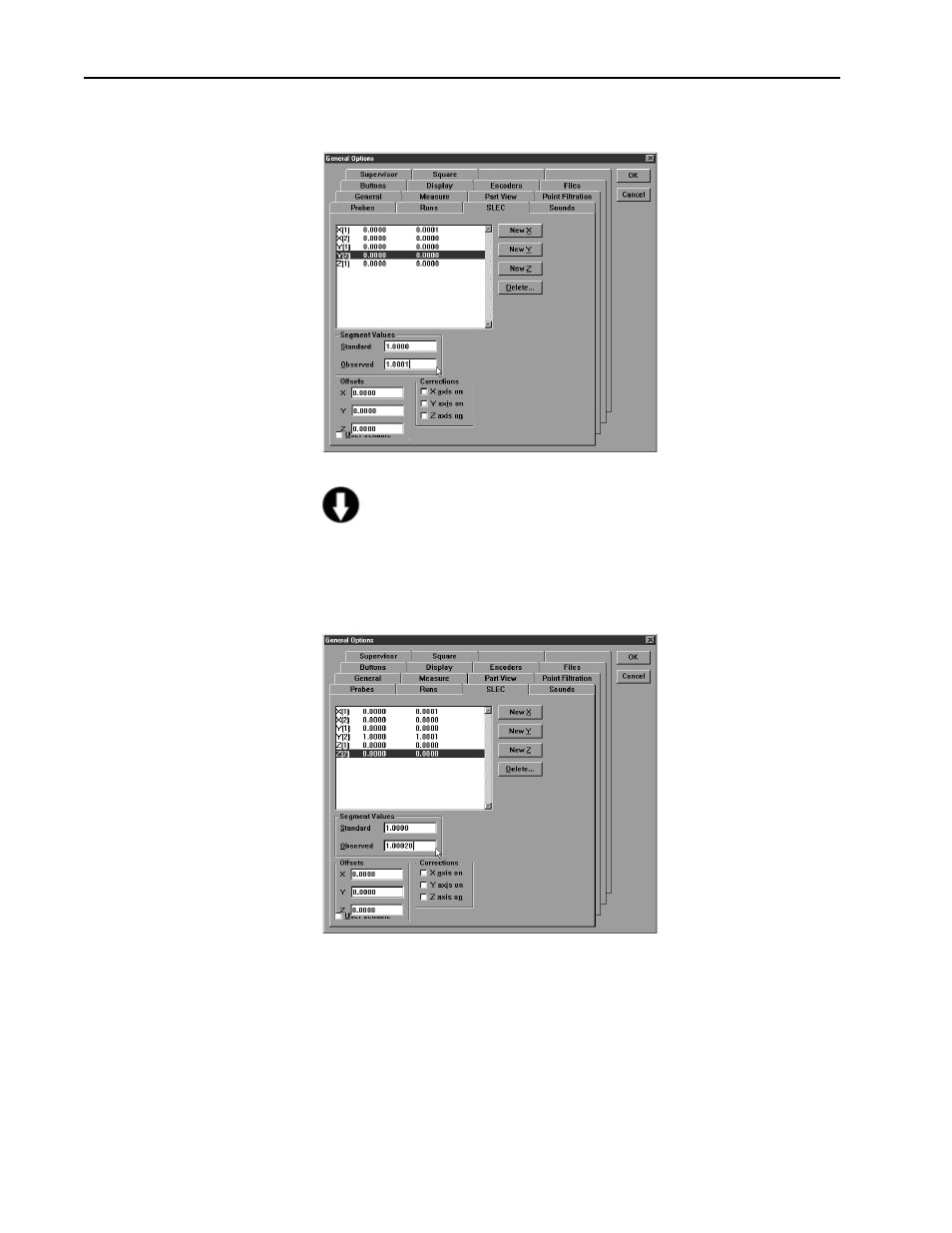

Step 9
Click new Y.
NOTE NOTE NOTE NOTE NOTE
Repeat steps 8 and 9 until all points are entered. Repeat steps 8 and 9 until all points are entered. Repeat steps 8 and 9 until all points are entered. Repeat steps 8 and 9 until all points are entered. Repeat steps 8 and 9 until all points are entered.
Step 10
Enter the standard and observed value for the first point on the Z axis as shown.
