69
Quadra-Chek ® 5000

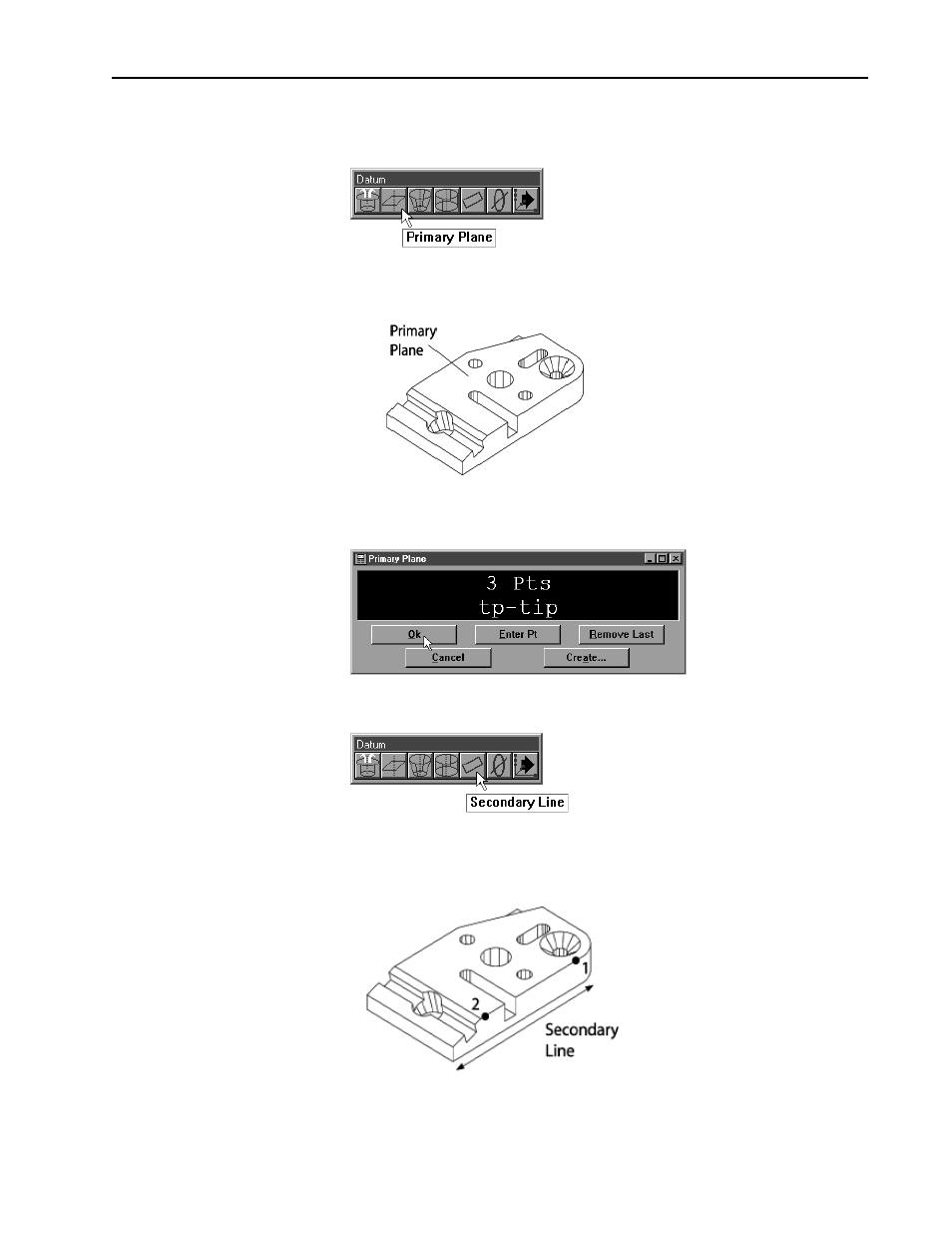

To create a reference frame
Step 1
Click the primary plane button on the datum toolbar.
Step 2
Measure three points on the plane as shown.
Step 3
Click OK in the dialog box.
Step 4
Click the secondary line button on the datum toolbar.
Step 5
Probe two points on the secondary line. Space the points close to the opposite
ends of the line.
