Circle Constructions

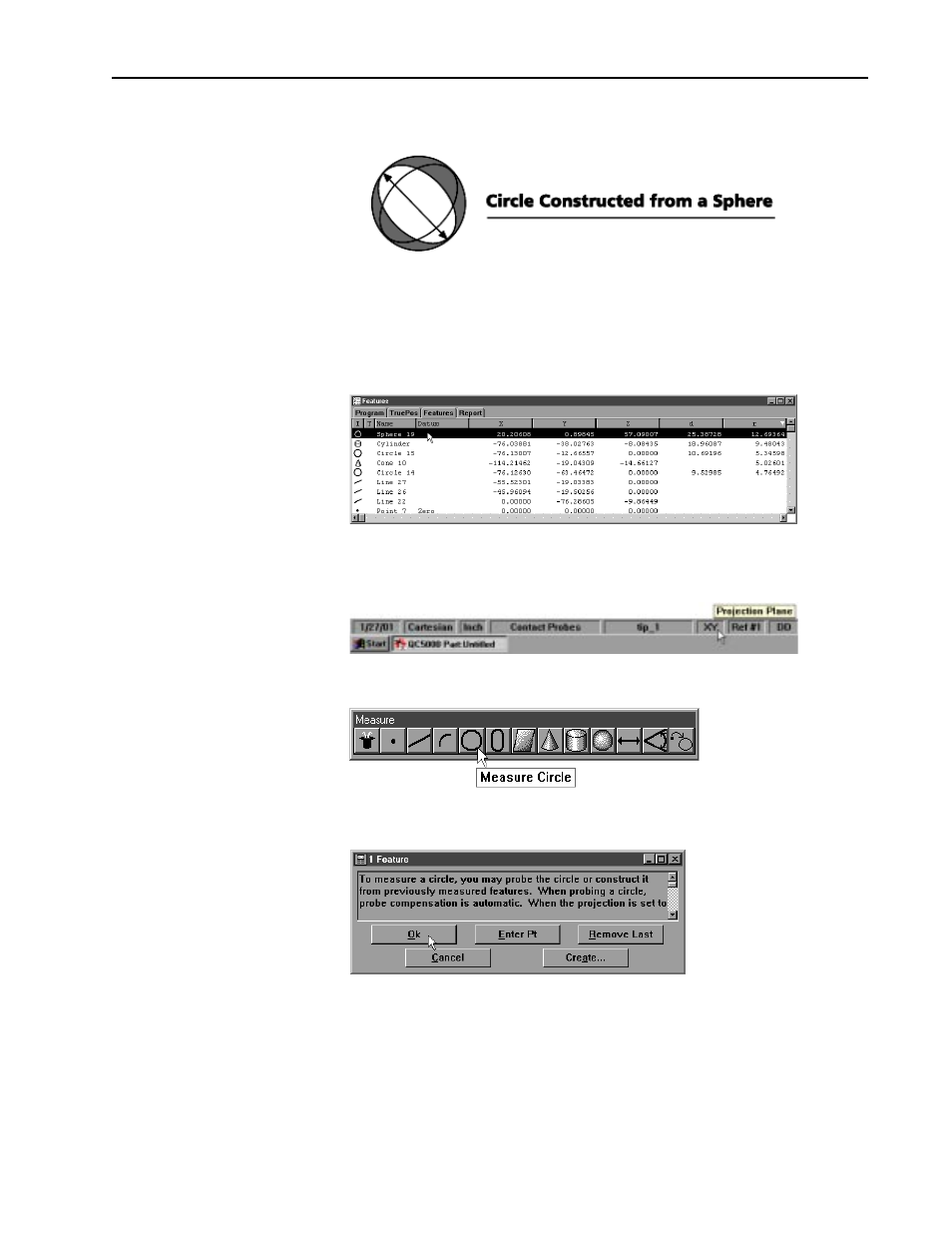

To construct a circle from a sphere
Step 1
Use the mouse to highlight a sphere on the features list.
Step 2
Click on the projection box in the status bar until the desired projection (XY,
YZ, ZX) plane appears.
Step 3
Click the circle button on the measure toolbar.
Step 4
Click OK in the dialog box.
