RJ-45 Electrical Interface

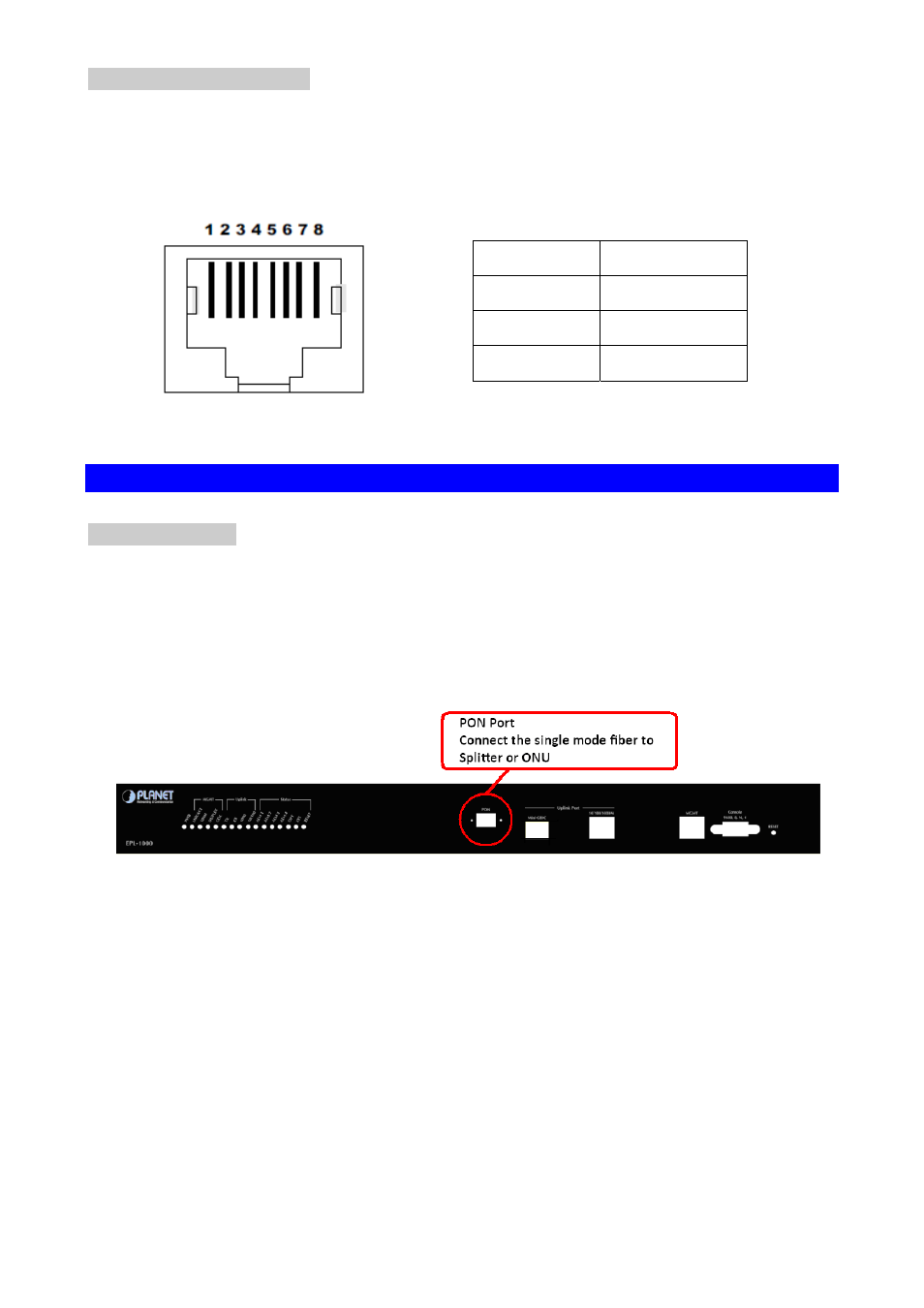

The pin assignment of RJ-45 connector on the Uplink port is shown in the following figure
and table.
1,2 T/Rx+,T/Rx-
3,6 T/Rx+,T/Rx-
4,5 T/Rx+,T/Rx-
7,8 T/Rx+,T/Rx-
Step 4. Connecting the PON Interface
PON Connection
The system supports one fixed PON port, the max. Split ratio is up to 1:32 per PON port.
Connect the single mode fiber to the Splitter or ONUs. The PON port provides the high
bandwidth up to 1.25Gbps for both upstream and downstream, up to 20km Long-Distance
Coverage between equipment nodes.
