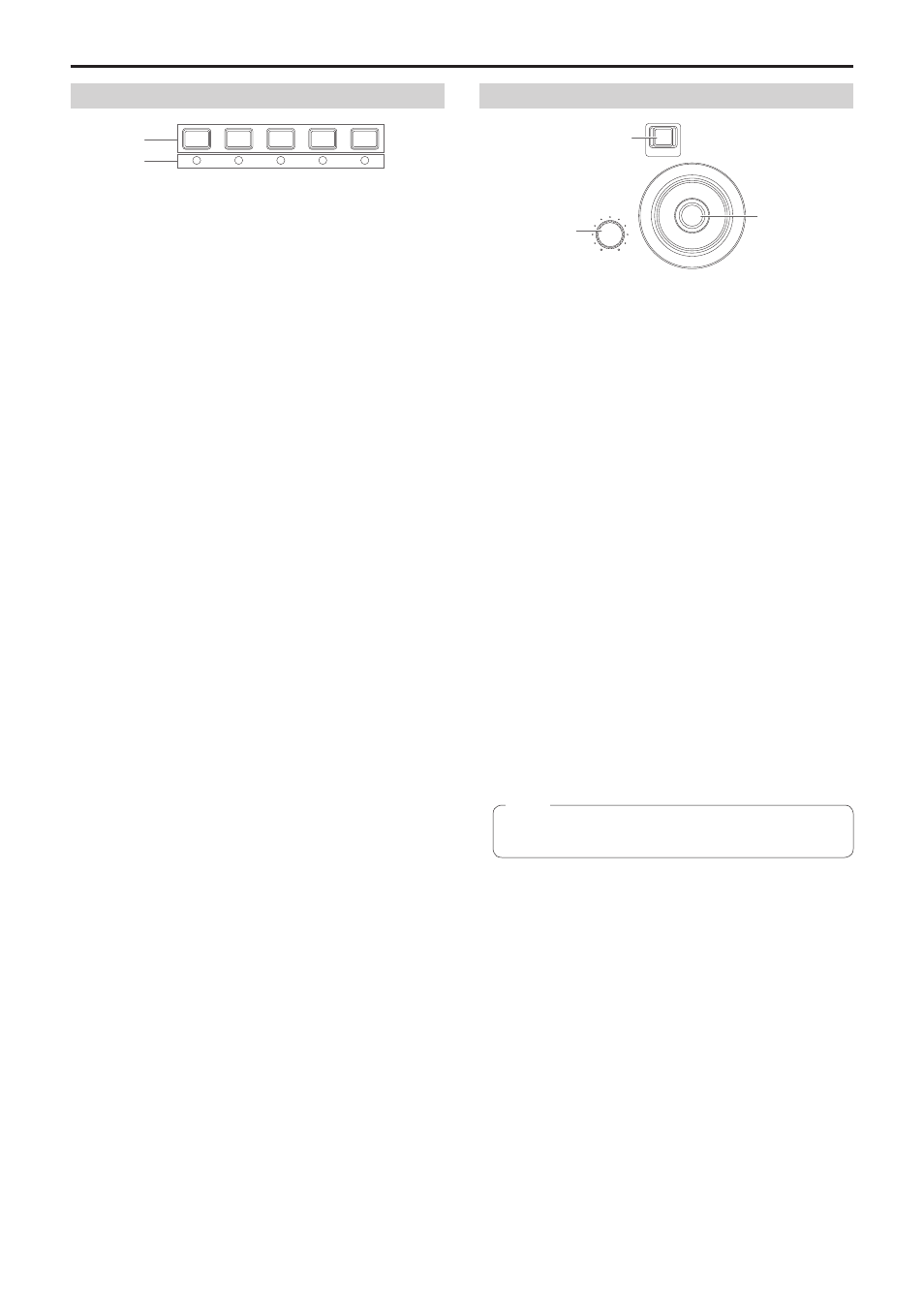

Camera selection section
CAMERA SELECTION
1 2 3 4 5


 Camera selection buttons
[CAMERA SELECTION 1 to 5]
Use these to select the camera number belonging to the camera
group that was set on the status screen.
Off : The camera is not being selected
On (green) : G_TALLY is ON and the camera is not being
selected
On (red) : R_TALLY is ON and the camera is not being
selected
On (amber) : The camera is being selected (The TALLY of the
selected camera is displayed on the LCD panel.)

Camera status LED
These indicate the statuses of the remote cameras assigned to
camera selection buttons [1] to [5].
For details, refer to “Selecting a remote camera” (page 22).
Off : Not connected
On (amber) : Camera standby
On (green) : Connected
Pan and tilt section
PTZ SPEED
LOW HI
ENABLE
PAN
TILT



 PAN/TILT / IRIS / ZOOM / FOCUS ENABLE button
[ENABLE]
Use this to enable or disable operation of the PAN/TILT lever (  ),
IRIS dial (  ), ZOOM button (  ) and FOCUS dial (  ).
On (amber) : Operation of the PAN/TILT lever, IRIS dial, ZOOM
button and FOCUS dial is enabled.
Off : The operation is disabled.
On (blue) : Only operation of the IRIS dial is disabled
(Operation of the PAN/TILT lever, ZOOM button
and FOCUS dial is enabled.)
 PTZ SPEED dial [PTZ SPEED]
Use this to adjust the operation speed variation amount for PAN/TILT
lever (  ) and ZOOM button (  ) operation.
Turned clockwise : Operation is at a higher speed (HI)
Turned counterclockwise : Operation is at a lower speed (LOW)
 PAN/TILT lever
Use this to control the direction in which the currently selected remote
camera points.
The movement speed differs depending on the angle to which the
PAN/TILT lever is moved.
Moved left or right : The camera points to the left or right.
Moved toward you or away from you:
The camera points up or down.
z z When the [PAN DIR] menu or the [TILT DIR] menu is set to
[REVERSE], it is possible to change the relationship between the
direction of lever tilt and the direction the camera moves.
z z When turning on the power, do not touch until the status screen
is displayed on the LCD panel.
