57
Menu
(continued)

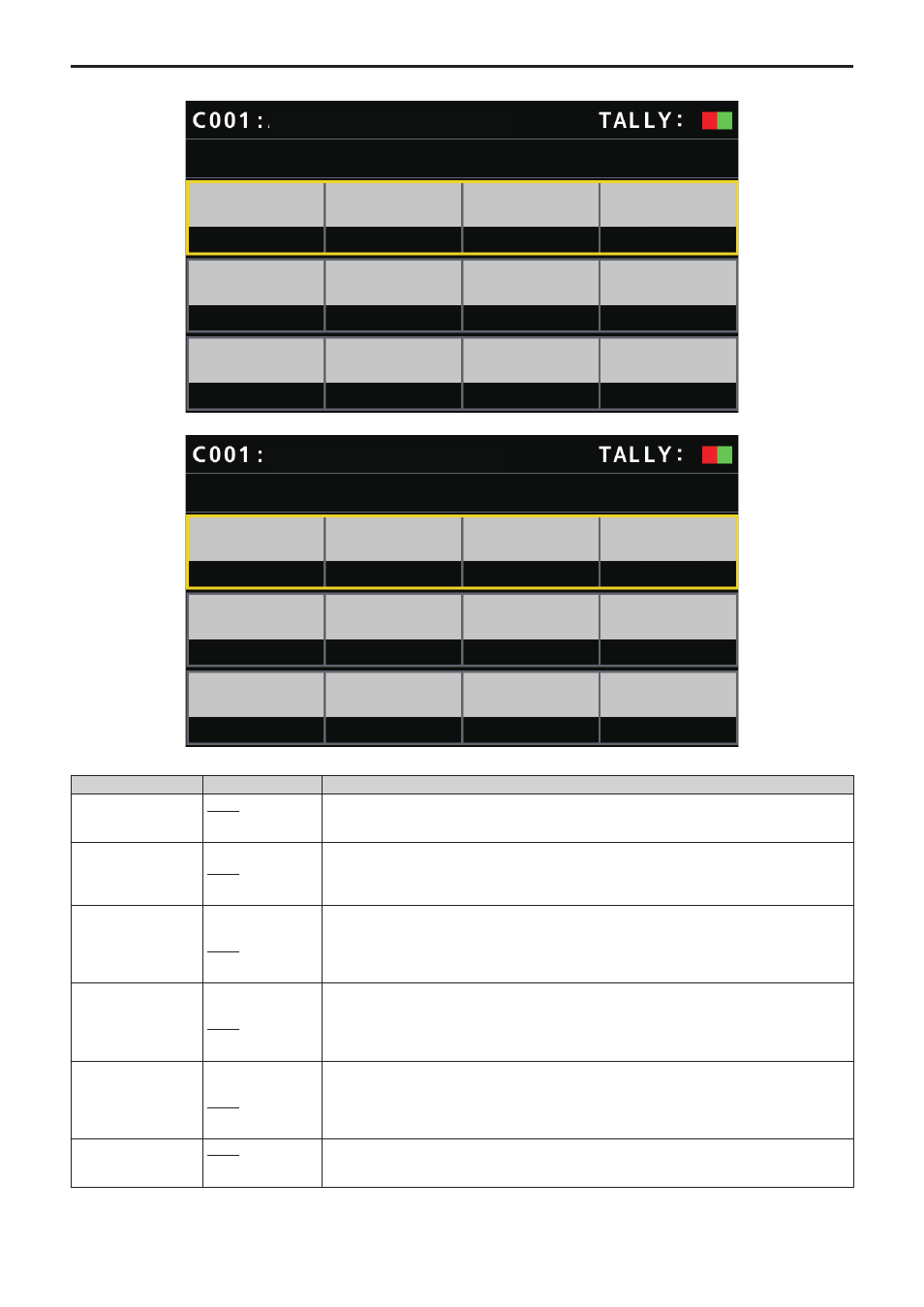

„ „ GPIO CAM SEL
GPIO CAM SEL 1/2
IN1
CAM1 CAM2 CAM3 CAM4
CAM5
CAM1 CAM2 CAM3 CAM4
IN3 IN4 IN2
IN5
OUT1 OUT3 OUT4 OUT2
AW-UE70
GPIO CAM SEL 2/2
OUT5
CAM5
AW-UE70
___ indicates factory default settings.
Item Setting value Setting details
IN1 CAM1
⁞
CAM200
Select the camera to be switched when there is CAMERA_SELECT_IN1 input through the port of the
TALLY/GPIO connector.
IN2 CAM1
CAM2
⁞
CAM200
Select the camera to be switched when there is CAMERA_SELECT_IN2 input through the port of the
TALLY/GPIO connector.
IN3 CAM1
⁞
CAM3
⁞
CAM200
Select the camera to be switched when there is CAMERA_SELECT_IN3 input through the port of the
TALLY/GPIO connector.
IN4 CAM1
⁞
CAM4
⁞
CAM200
Select the camera to be switched when there is CAMERA_SELECT_IN4 input through the port of the
TALLY/GPIO connector.
IN5 CAM1
⁞
CAM5
⁞
CAM200
Select the camera to be switched when there is CAMERA_SELECT_IN5 input through the port of the
TALLY/GPIO connector.
OUT1 CAM1
⁞
CAM200
Notification is sent to CAMERA_SELECT_OUT1 of the port of the TALLY/GPIO connector when the
set camera is selected.
