IEC-60870-5-104 (104S) Protocol Implementation 104S v2 ♦ ProLinx Gateway
Protocol Manual (Firmware v2.xx)
ProSoft Technology, Inc.
Page 67 of 157
Inf. Object Address Gateway Database Address
1000 Low Byte of word 250 (Byte address 500)
300 Low Byte of word 20 (Byte address 40. Must match
configuration of point 300 in M_ST_NA.)
1001 Low Byte of word 260 (Byte address 520)
301 Low Byte of word 30 (Byte address 60. Must match
configuration of point 301 in M_ST_NA.)
1002 High Byte of word 270 (Byte address 541)
302 High Byte of word 40 (Byte address 81. Must match
configuration of point 302 in M_ST_NA.)
C_SE_NA and C_SE_NB
The measured normalized point command uses one word with word-addressing.

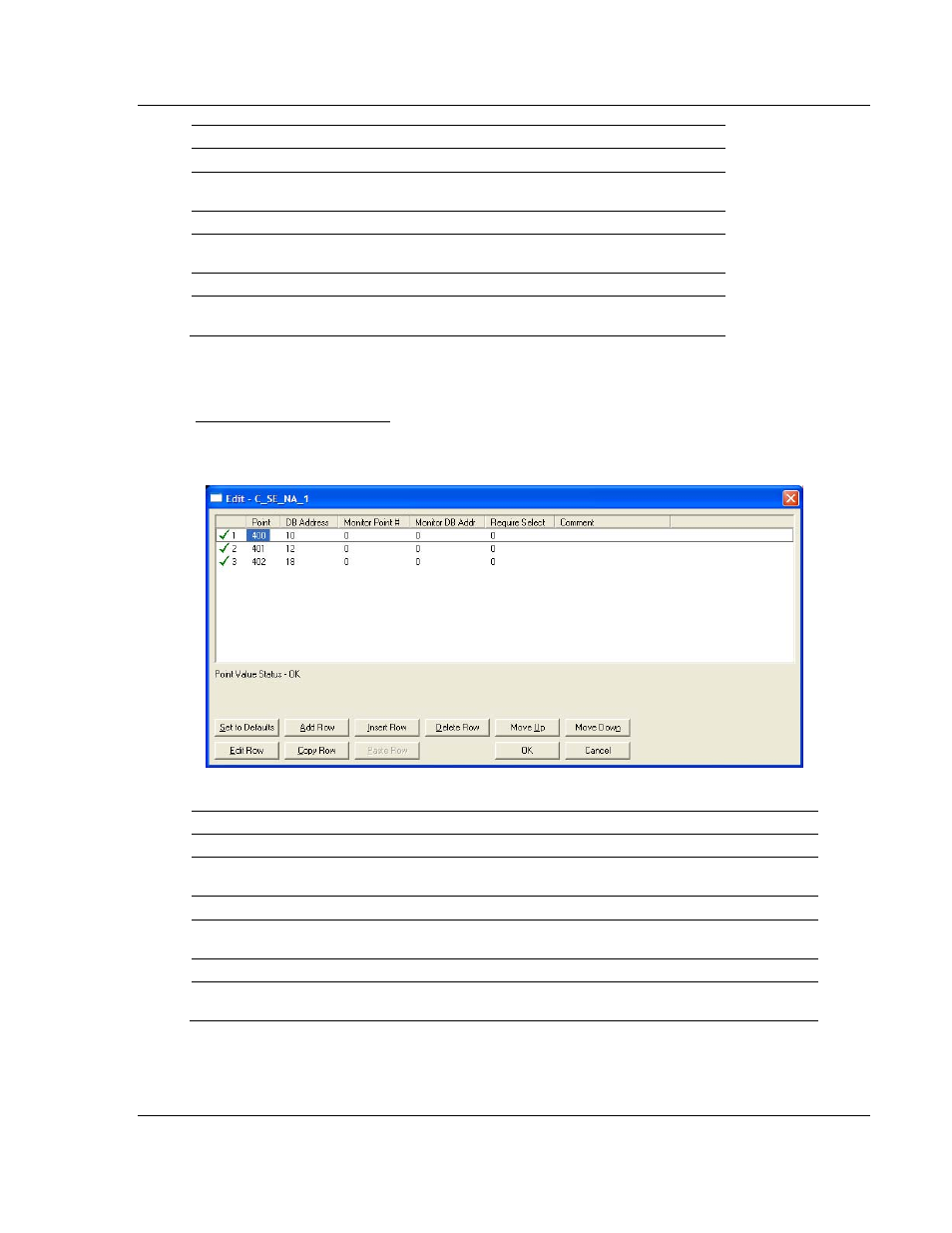

For example, if you configured the following points:
The following table describes how these points would be used.
Inf. Object Address 104S v2 gateway Database Address
1100 Word 2000 (Word address 2000)
400 Word 10 (Word address 10. Must match the
configuration of point 400 in M_ME_NA.)
1101 Word 2001 (Word address 2001)
401 Word 12 (Word address 12. Must match the
configuration of point 401 in M_ME_NA.)
1102 Word 2001 (Word address 2001)
402 Word 18 (Word address 18. Must match the
configuration of point 402 in M_ME_NA.)
