Video Operations

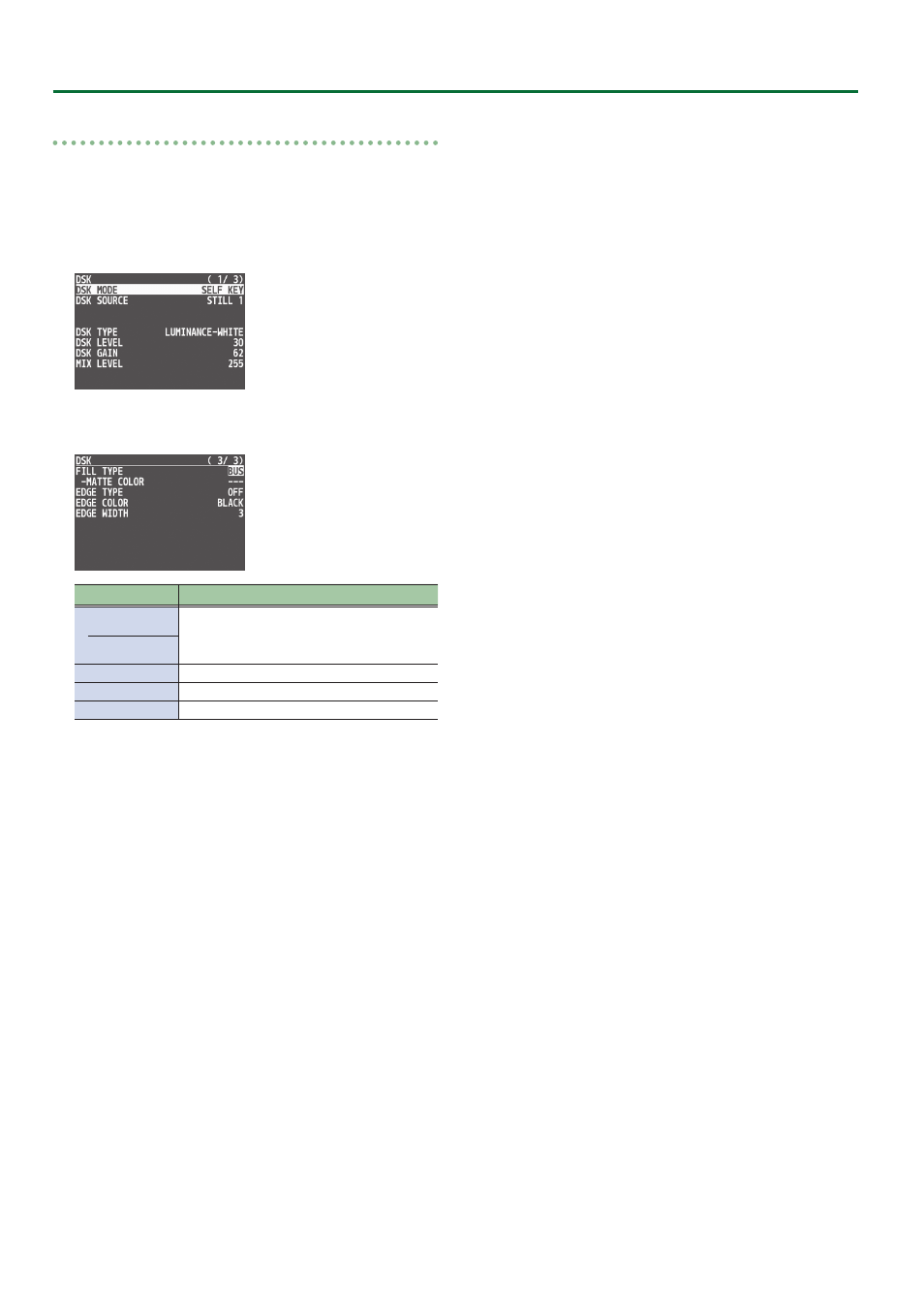

Modifying the superimposed video
When using luminance key compositing, you can fill-in the
superimposed image or add an edge to it.
* This setting is in common with chroma key.
1 . Press the [MENU] button 0 select “DSK”, and press
the [VALUE] knob.
2 . Use the [VALUE] knob to select the menu items
shown below, and press the [VALUE] knob.
Menu item Explanation
FILL TYPE If this is set to “MATTE”, the superimposed text or
image is filled-in with the specified color.
The fill-in color is specified by “MATTE COLOR”.
MATTE COLOR
EDGE TYPE Specifies the type of edge.
EDGE COLOR Specifies the color of the edge.
EDGE WIDTH Specifies the width of the edge.
3 . Use the [VALUE] knob to change the value, and
press the [VALUE] knob.
4 . Press the [MENU] button to quit the menu.
