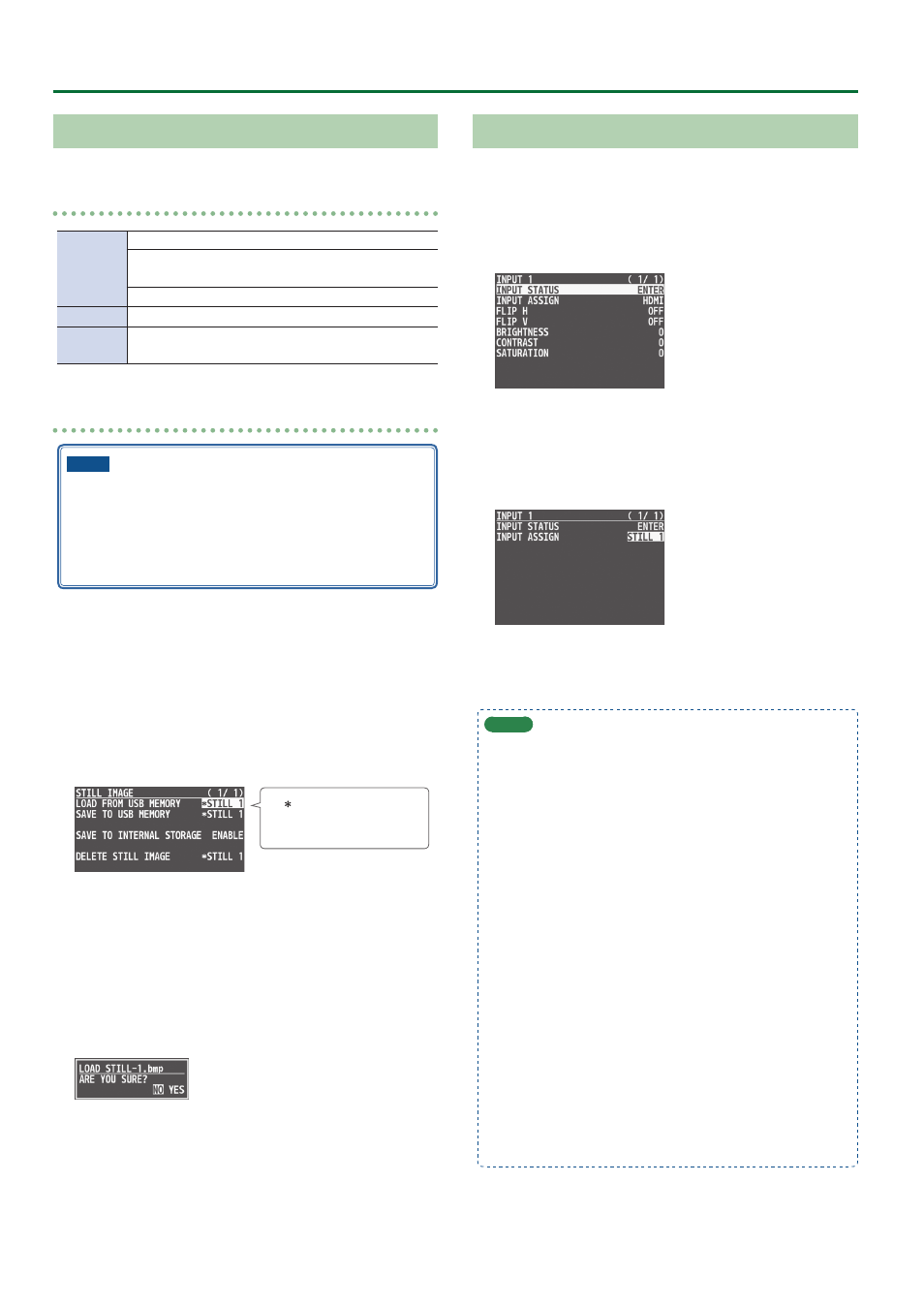

30
Video Operations
Importing a Still Image from a USB Flash Drive
This imports into the unit a still image saved on a USB flash drive.
Supported still-image formats and resolutions
Format
Bitmap file (.bmp), 24-bit color, uncompressed
PNG file (.png), 24-bit color
* Alpha channel supported
JPEG file (.jpg, .jpeg), 24-bit color
Resolution In conformity with system format (p. 8)
File name
No more than 28 single-byte alphanumeric characters
* Be sure to append the file extension.
Importing a still image
NOTE
5 Large-size still-image files might take some time to import.
5 When you’re using a USB flash drive for the first time, be sure
to format it on the V-8HD (p. 60).
5 Depending on the USB flash drive, recognition of the flash
drive might take some time.
1 . Save the still image in the root directory of the USB
flash drive.
2 . Connect the USB flash drive containing the saved
still image to the USB MEMORY port.
3 . Press the [MENU] button 0 ”STILL IMAGE” 0 select
“LOAD FROM USB MEMORY”, and press the [VALUE]
knob.
A “ ” symbol is displayed for
memory where a still image
is already saved.
4 . Use the [VALUE] knob to select the still image save-
destination (STILL 1–8), and then press the [VALUE]
knob.
The names of the files on the USB flash drive are displayed on this
screen.
5 . Select the still image file you want to import, and
press the [VALUE] knob.
A confirmation message appears.
* If you decide to cancel, press the [EXIT] button.
6 . Use the [VALUE] knob to select “YES”, and press the
[VALUE] knob.
The still image is imported into the unit.
7 . Press the [MENU] button to quit the menu.
Assigning Still Images to Channel 1–8
Here’s how a still image saved in this unit (STILL 1–8) can be assigned
to channels 1–8.
1 . Press the [MENU] button 0 ”VIDEO INPUT” 0
select “INPUT 1”–“INPUT 8 (SCALER)”, and press the
[VALUE] knob.
2 . Use the [VALUE] knob to select “INPUT ASSIGN”, and
press the [VALUE] knob.
3 . Use the [VALUE] knob to select “STILL 1”–“STILL 8”,
and press the [VALUE] knob.
4 . Press the [MENU] button to quit the menu.
MEMO
5 By holding down the [EXIT] button and pressing a Cross-point
A or B [1]–[8] button, you can switch between still images STILL
1–8 and select the still image that is assigned to the channel
whose button you pressed.
5 You can use the USER [1] or [2] button to output the specified
still image.
This lets you directly output a still image to PGM and PVW
without assigning it to a channel.
For details on this setting, refer to “Assigning the Functions of
the USER [1] [2] Buttons” (p. 63).
5 You can use the [OUTPUT FADE] knob to output a specified still
image.
This lets you directly output a still image to PGM and PVW
without assigning it to a channel.
For details on this setting, refer to “Specifying the function of
the [OUTPUT FADE] knob” (p. 33).
5 You can use a footswitch or expression pedal to output a
specified still image. This lets you directly output a still image to
PGM and PVW without assigning it to a channel.
For details on this setting, refer to the following.
– “Using a Footswitch” (p. 61)
– “Using an Expression Pedal” (p. 62)
