Chapter 7 Output and Screen Display — Screen status display
Screen status display

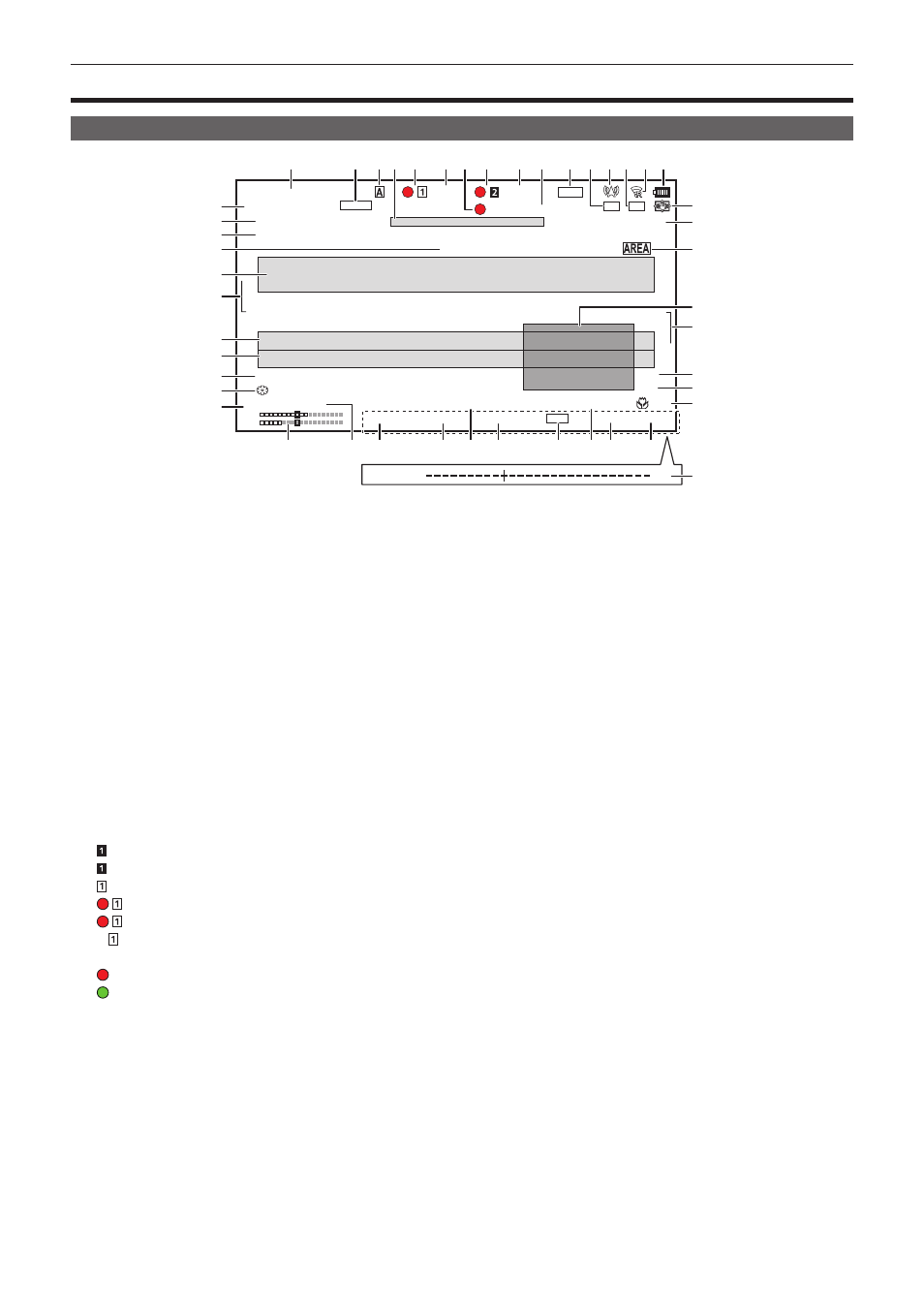

Screen display during shooting
TCG 1 2 : 3 4 : 5 6 : 2 8
2160-59.94p
MOV 420 150M
A001C001
A 3200K
IP REMOTE
36dB ND:CLR 1/10000 F5.6+50
H.SENS. DEC 3 1 2 0 1 9 1 0 : 4 5 : 3 0
iZ123
MF99
D2x
IR
70%
S/H INTRVL
ND1/16
FLUO.
999min 999min
S.SLOW120 FBC
RELAY
HDR
STD CH1
CH2
[ + ]
ICONS
VOLUME [ - ]
1 2 3 5 6 7 8 9 10 11 12 13
17 18 19 20 21 22 23 24 25 26
38
28
30
32
41
42
43
29
27
31
39
40
32
44
45
33
34
35
36
37
4 14 15 16
1 Time code
The display will toggle to the next display or no display every time the <COUNTER> button is pressed.
f [TCG ** : ** : ** : ** ]: Displays the time code. [TCR ** : ** : ** : ** ] will be displayed during playback.
[TCG] is displayed with black and white inverted during the slave lock into the external input time code.
f [UBG ** ** ** ** ]: Displays the user bits. [UBR ** ** ** ** ] will be displayed during playback.
f [CLIP * : ** : ** : ** ]: Displays the counter value of each clip. This is displayed when the [RECORDING] menu → [REC COUNTER] is set to
[CLIP]. Displays the counter value of the clip being played back during playback.
f [ * : ** : ** : ** ]: Displays the cumulative counter value from the reset position. This is displayed when the [RECORDING] menu → [REC
COUNTER] → [TOTAL] is set.
2 Frame rate
f [ ** fps]: Frame rate is displayed when set to the [SCENE FILE] menu → [VFR] → [ON].
f [S.SLOW120]: Displayed when set to the [SYSTEM] menu → [SUPER SLOW] → [ON] and the [SYSTEM] menu → [FREQUENCY] → [59.94Hz].
f [S.SLOW100]: Displayed when set to the [SYSTEM] menu → [SUPER SLOW] → [ON] and the [SYSTEM] menu → [FREQUENCY] → [50.00Hz].
f (No display): It is not displayed when set to the [SCENE FILE] menu → [VFR] → [OFF] and the [SYSTEM] menu → [SUPER SLOW] → [OFF].
3 <AUTO/MANUAL> switch
Displayed when the <AUTO/MANUAL> switch is set to <AUTO>.
4 Message display area for stop of cooling fan
Displays a message when the cooling fan has stopped.
5 Recording status (card slot 1)
Displays the recording status of the memory card in card slot 1.
f : Not target for recording.
f (flashing): Recognizing the memory card.
f : The recording is stopped while the recording target memory card is inserted.
f : Recording.
f (Flashing red dot): Processing to stop the recording.
f [P ]: Recording is stopped with pre-recording is enabled and the recording target memory card is inserted.
f [P]: Pre-recording is enabled, and the memory card is not inserted in the card slot, or the memory card is not recognized.
f : The tally lamp is instructed to illuminate in red via network.
f : The tally lamp is instructed to illuminate in green via network while the recording is stopped.
f (No display): It is in one of the following conditions.
- A memory card has not been inserted.
- The memory card cannot be recognized.
- The tally lamp is not instructed to illuminate in red/green via network, and the [NETWORK] menu → [NETWORK FUNC] → [NDI | HX] is set.
6 Remaining recording capacity and status of the memory card (card slot 1)
Displays the remaining recording capacity and status of the memory card in card slot 1.
f [0min] to [999min]: Remaining recording capacity (999 minutes or more is displayed as [999min])
- The display will flash when the remaining recording capacity becomes two minutes or less.
- The recording capacity available for simultaneous recording (recording capacity for the memory card of the two memory cards with less recording
capacity) is displayed when simultaneous recording is performed.
f [WP]: Write protected (the write protection switch of the memory card is set to the LOCK side)
f [END]: No remaining recording capacity (no remaining recording capacity on the memory card)
f [ERR]: A memory card that cannot record is inserted (the card is recognized but cannot record due to a format error, a card other than a memory
card being inserted, etc.)
