102
HEIDENHAIN ATS Software User's Manual
5.5.31
Open Loop function
8

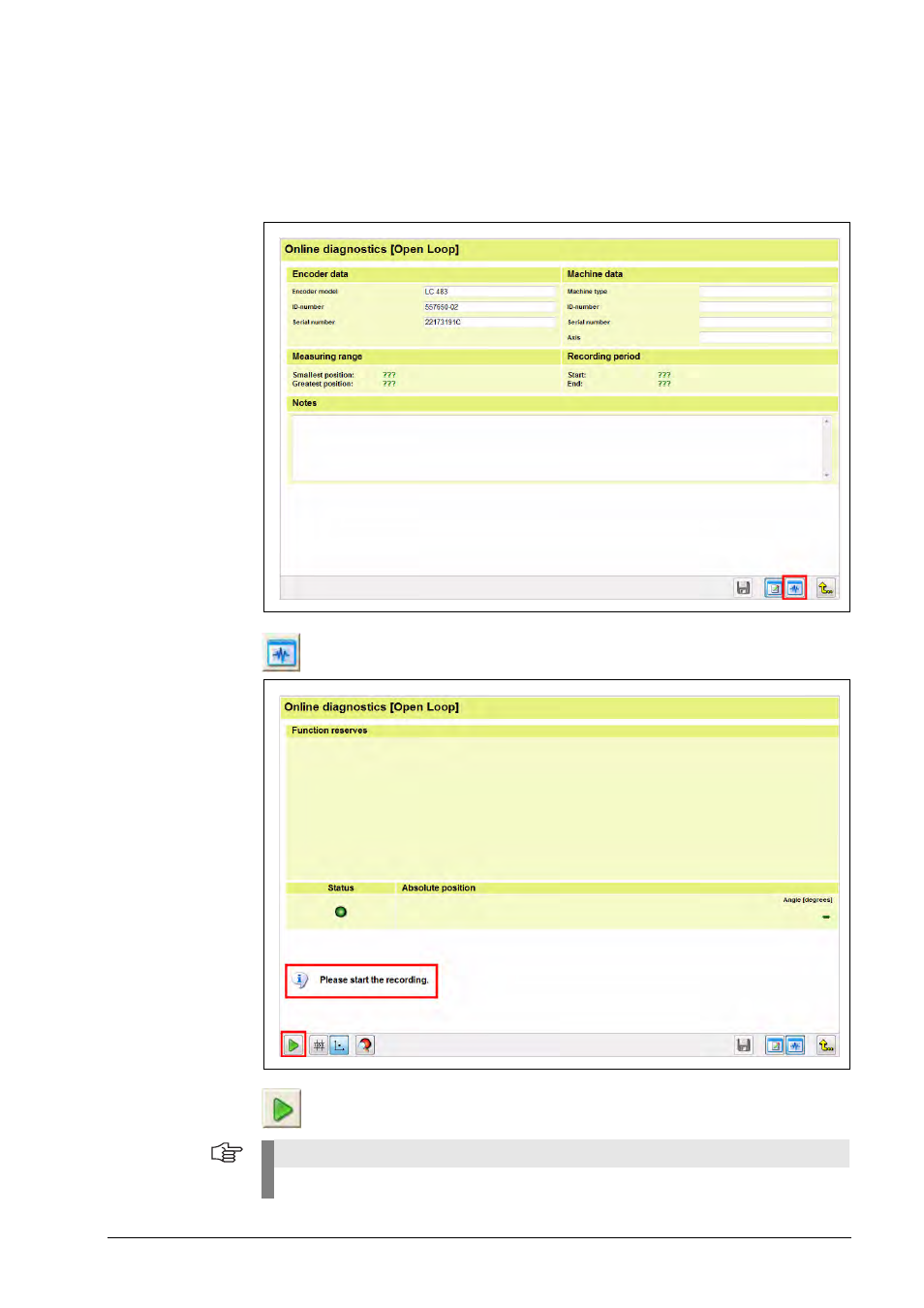

Click the Open Loop function.
The log window opens, containing the existing encoder data. You can add machine data and
notes. The software automatically enters measuring range and recording period as soon as the
recording stops.
8
Click this button to open the "Function reserves" window.
8
Click this button to start recording.
Note
Cover the entire traverse range!
