November 2014
Software description
85
Edit encoder
configuration
8

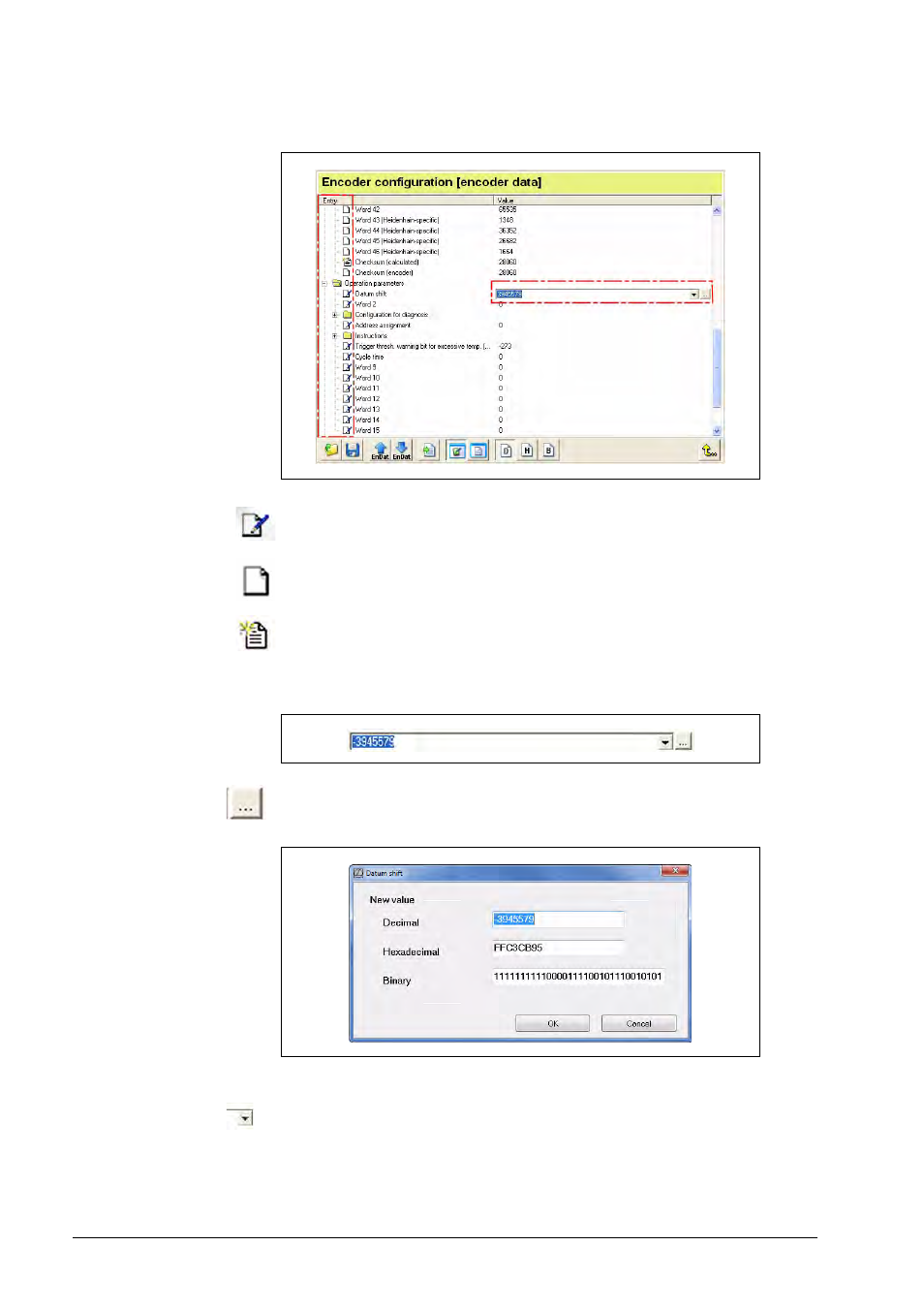

Use the left mouse button to mark the value to be edited (in the example: Datum shift).
The drop-down list opens.
8
Open the editing window by clicking this button (to the right of the drop-down
list).
Second option:
8
Click the arrow to open the list from which you can select predefined
values.
Value can be edited.
Value cannot be edited.
Value cannot be edited, since it is the result of a calculation or it consists of several
words for easy-to-read display (e. g. ID 557 650-06).
