HEIDENHAIN ATS Software User's Manual
8
Clicking the "Forward >" button opens an overview of the data you have entered.
4
An ATS code only has to be entered if, for example, no mounting wizard is available for
selection on the basic screen after automatic connection with encoder ID.
Normally, the required functions are taken into account in the encoder database and are
assigned to the encoders.
In special cases (e.g. pre-series encoders) the database may not be up-to-date, and such
encoders cannot be mounted as long as there is no "mounting wizard". For these
exceptions, an ATS code can be entered by hand on the basic screen to display the
"Mounting" function.

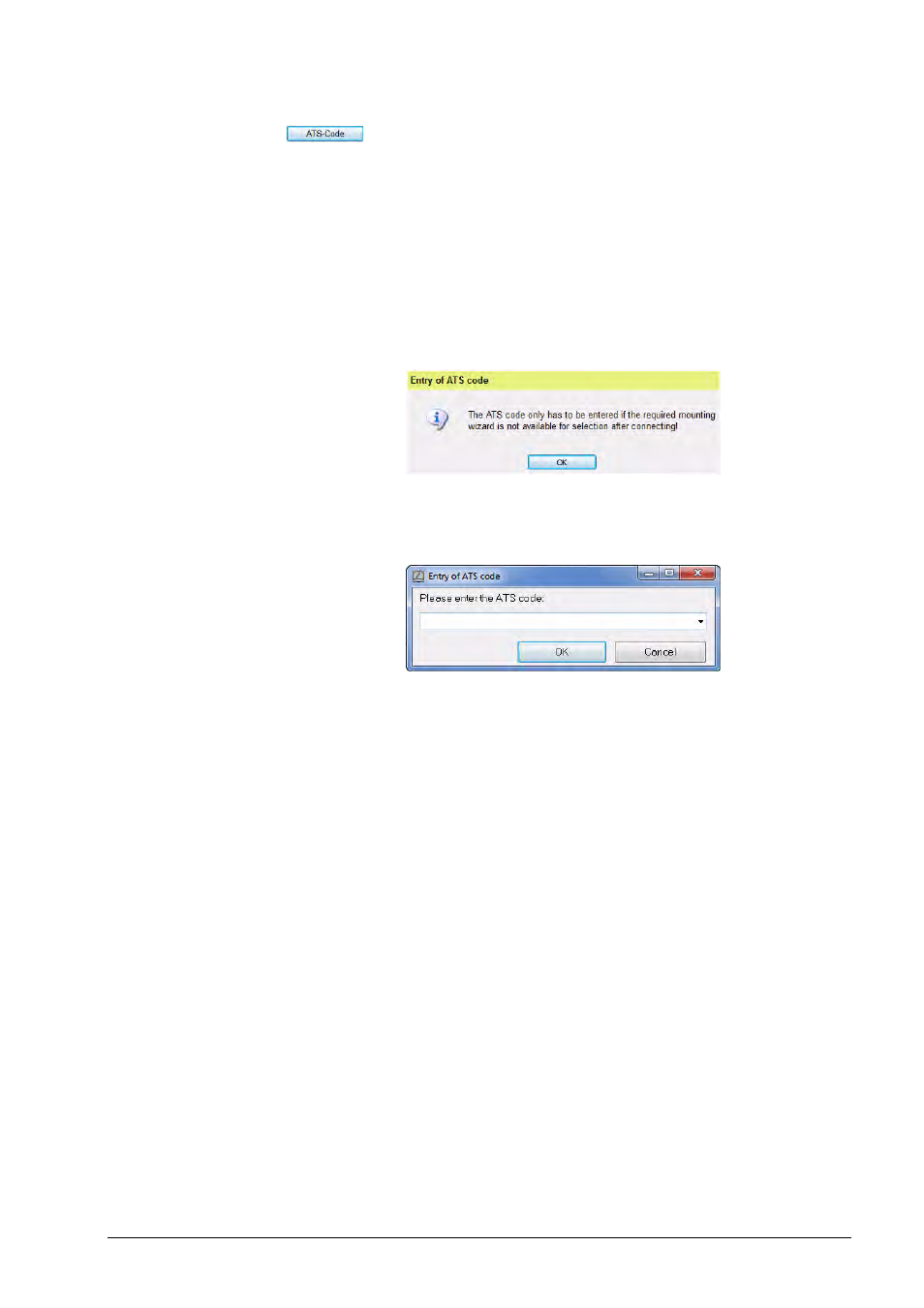

Display after the "ATS Code" button was pressed:
The ATS code can be requested from HEIDENHAIN for the encoder ID concerned.
Prompt for entering the code:
