3. Using a 3" x 3" bump sleeve and two #48 hose
clamps, loosely attach tube “A” to the super-
charger discharge.
*** NOTE ***
The by-pass port should be facing the driver’s side
4. Attach tube “B” using a second 3" x 3" bump
sleeve and the provided #48 hose clamps to the
open end of tube “A”.
*** NOTE ***
For better duct clearance, rotate the power steering
return fitting so that it points to the front of the vehicle.
Use care not to damage the fitting or hose. If neces-
sary, rotate the power steering line from the rack to
the radiator closer to the frame. (See Fig. 8B-d.)

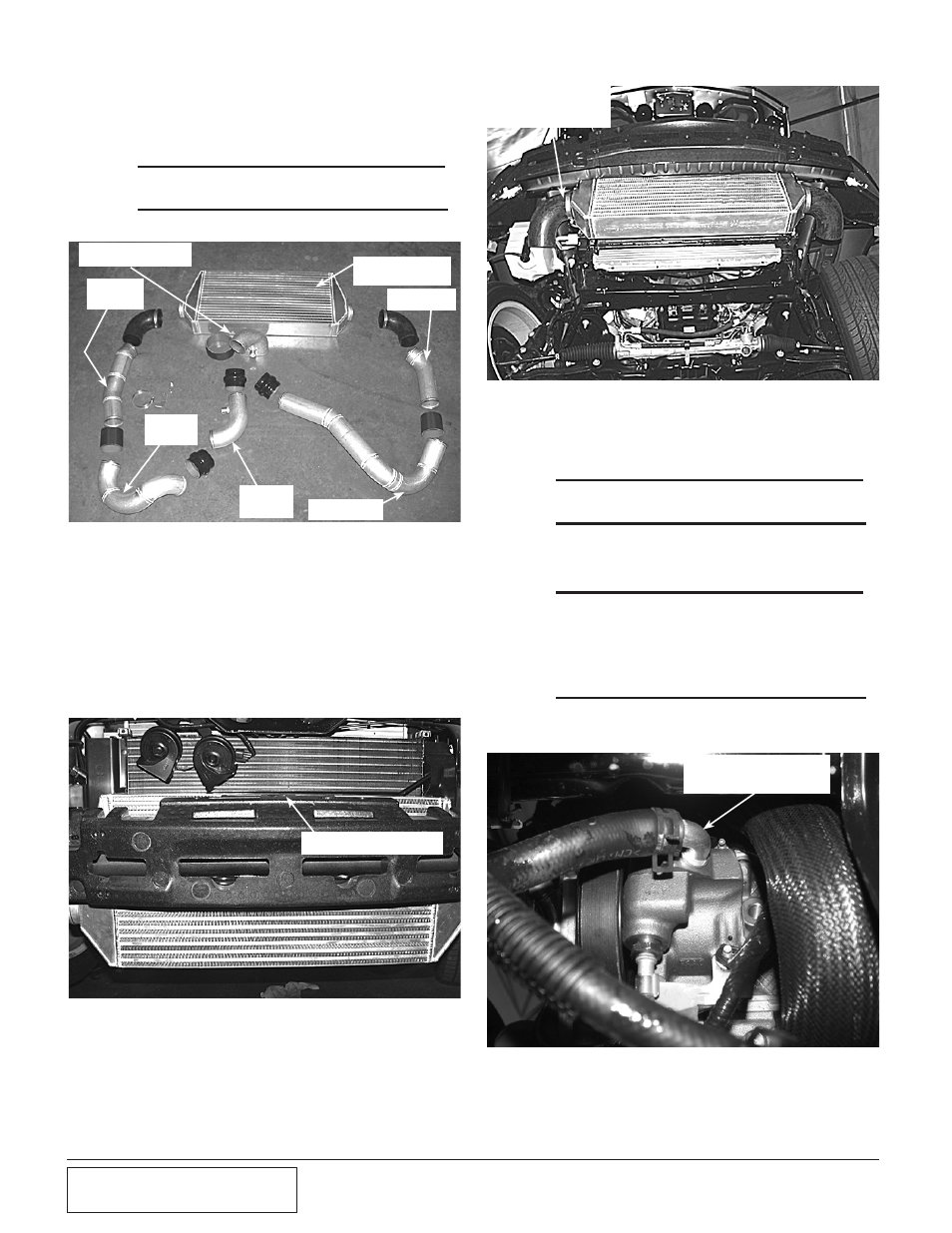

8B. CHARGE AiR CooLER CoRE
iNSTALLATioN (2005-2006 Model H.o. kits
only)
Fig. 8B-c
Fig. 8B-d
SHORT ENDS OF 90°
ELBOWS PROVIDED
FITTING ROTATED
TOWARD
FRONT OF VEHICLE
*** NOTE ***
Use Fig. 8B-a to aid in the next few steps
1. Locate the Charge Air Cooler assembly.
Place the cooler onto the previously
installed hardware, making sure the four
spacers remain in place. Align the top of
the cooler flush with the top of the styro-
foam bumper support. Secure the cooler
using the nuts and washers provided. (See
Fig. 8B-b.)
2. Loosely install the short ends of the two
90° rubber elbows onto each end of the
charge cooler using the supplied #48 hose
clamps. (See Fig. 8B-c.)
Fig. 8B-a
Fig. 8B-b
TUBE
“A”
TUBE
“B”
TUBE
“C” TUBE “D”
TUBE “E”
DISCHARGE DUCT
CHARGE
COOLER
FLUSH WITH TOP
