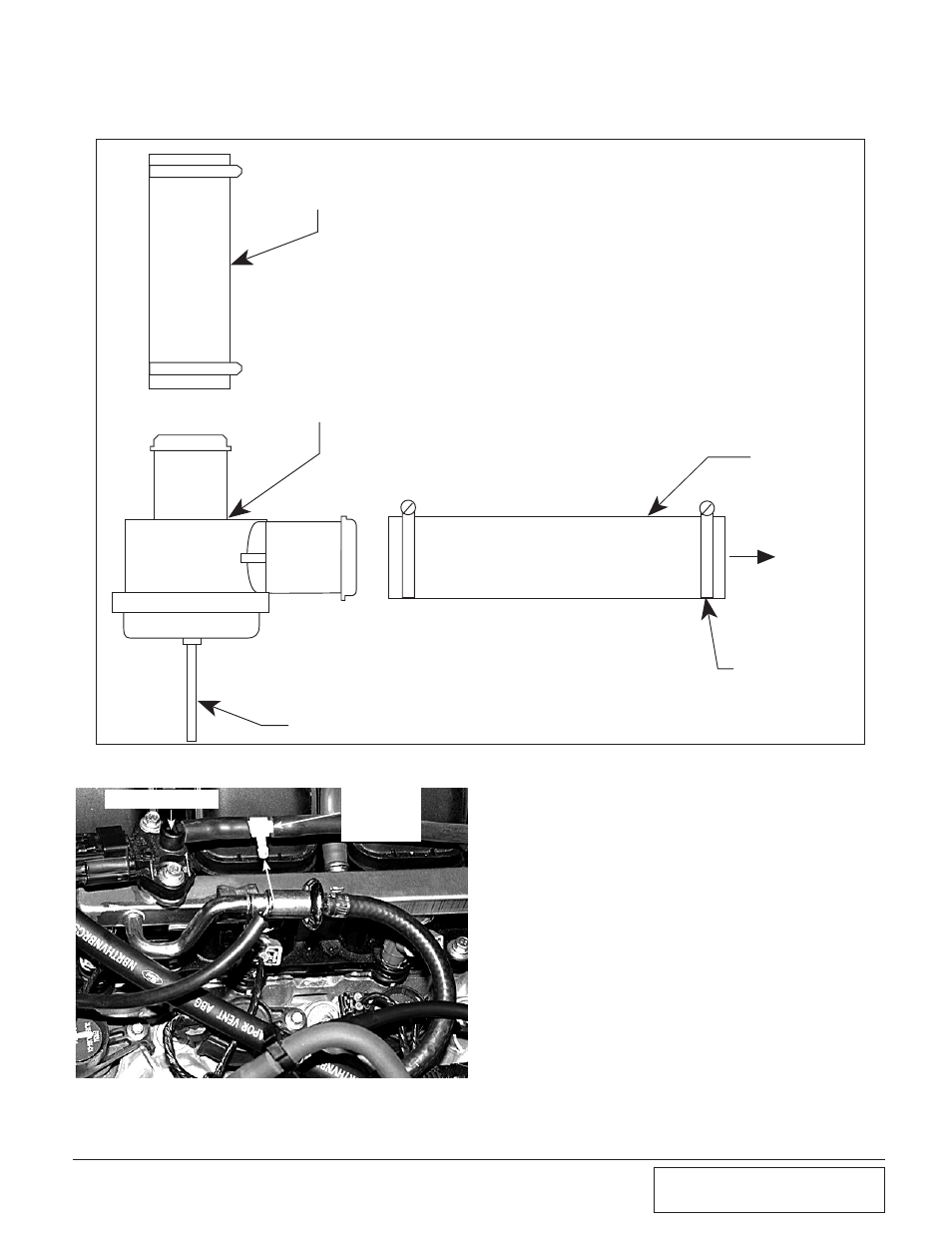

9. AiR DiSCHARGE ASSEMBLy
(Non-cooled kits only)
Fig. 9-b
4.25" x Ø1" HOSE
(TRIM TO FIT)
TO DISCHARGE
TUBE
15" x Ø1" HOSE
(TRIM TO FIT)
TO MANIFOLD PRESSURE/VACUUM
#16 HOSE CLAMPS
TO INLET
DUCT
BYPASS VALVE
Fig. 9-c
FUEL REGULATOR SUPPLIED
VACUUM
TEE
