8.2.7 Anti-Islanding Methods
Q(V) Mode
(a) Phase Lag
(b) Phase Lead

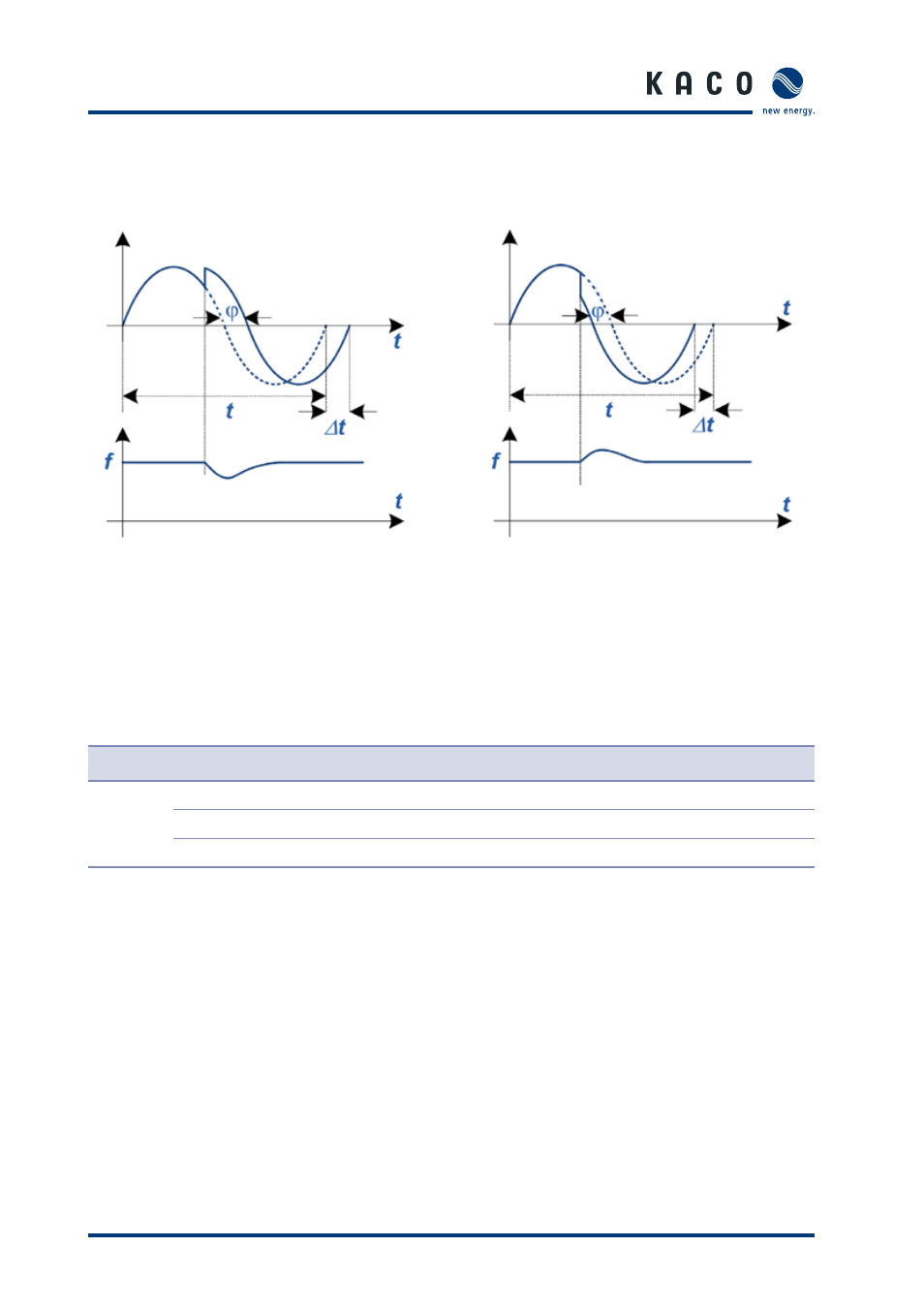

Figure 89: The graph of phase jump detection method
BP SERIES Inverter can detect the anti-islanding situation by Phase Jump Detection Method. In case of phase-
angle jumping detection, the inverter will block the gating signal in a presised setting-time. During the time of
blocking gating signal, if the grid voltage and grid frequency is recovered within the normal operation range,
the inverter will be restart. BP SERIES inverter is monitored each 10 cycle. If the phase-angle error exceeds the
pre-set phase angle during {PJD Trip Time}, inverter will block the gating signal.
Tab
Number Parameter
Min
Max
Default Value
Grid
54
PJD Mode
0
2
0
55
PJD Level
3
360
5 degree
56
PJD Trip Time
3
30000
400ms
Table 31: Related Parameters (ex. BP1000 Model)
